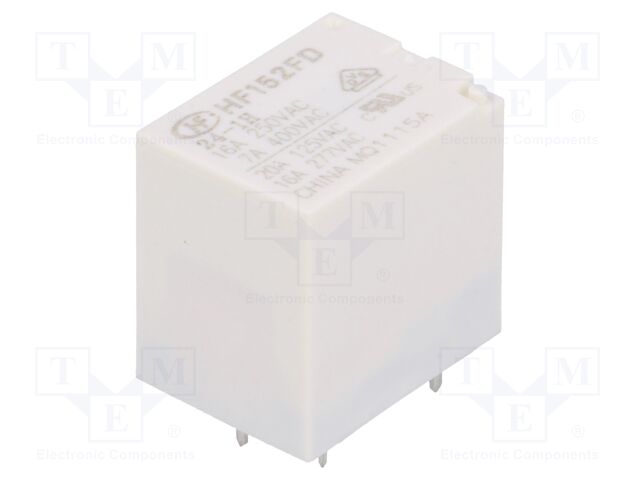

![HF152FD/24-1H HF152FD/24-1H](https://ce8dc832c.cloudimg.io/v7/_cdn_/9C/17/70/00/0/487881_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=b4ad14e42f4d97bde68d40eb49fc8b7eddee1168)
HF152FD/24-1H HONGFA RELAY
![HF152FD_en.pdf](/images/adobe-acrobat.png)
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/125VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 20A
AC contacts rating @R: 20A / 125V AC
Switched voltage: max. 400V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 1.6kΩ
Coil voltage min.: 18V DC
Coil voltage max.: 31.2V DC
Operate time: 10ms
Body dimensions: 21x16x20.6mm
Release time: 5ms
Coil power consumption: 360mW
Operating temperature: -40...105°C
Contact resistance: 100mΩ
Contact material: AgNi
auf Bestellung 606 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
24+ | 3.06 EUR |
26+ | 2.76 EUR |
51+ | 1.42 EUR |
54+ | 1.34 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF152FD/24-1H HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 20A; 20A/125VAC, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 24V DC, Contact current max.: 20A, AC contacts rating @R: 20A / 125V AC, Switched voltage: max. 400V AC, Relay variant: subminiature, Mounting: PCB, Coil resistance: 1.6kΩ, Coil voltage min.: 18V DC, Coil voltage max.: 31.2V DC, Operate time: 10ms, Body dimensions: 21x16x20.6mm, Release time: 5ms, Coil power consumption: 360mW, Operating temperature: -40...105°C, Contact resistance: 100mΩ, Contact material: AgNi, Anzahl je Verpackung: 1 Stücke.
