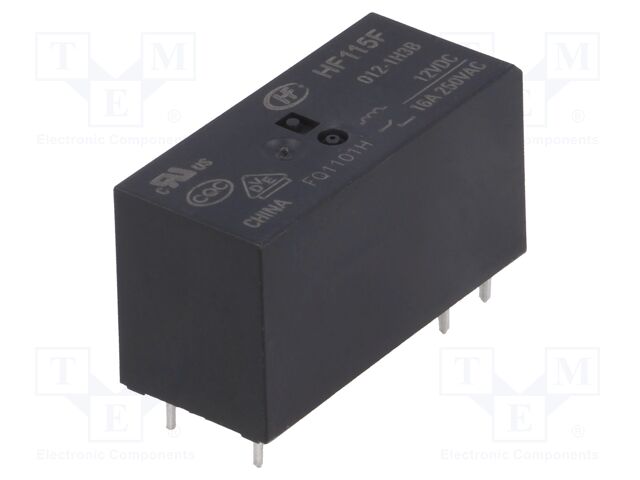

HF115F/012-1H3B HONGFA RELAY
Hersteller: HONGFA RELAY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A; 16A/250VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Relay series: HF115F
Switched voltage: max. 300V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 18V DC
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 8ms
Coil power consumption: 400mW
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Contact material: AgNi
Terminal pitch: 5mm
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A; 16A/250VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Relay series: HF115F
Switched voltage: max. 300V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 360Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 18V DC
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 8ms
Coil power consumption: 400mW
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Contact material: AgNi
Terminal pitch: 5mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 259 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
17+ | 4.33 EUR |
19+ | 3.92 EUR |
35+ | 2.1 EUR |
37+ | 1.97 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF115F/012-1H3B HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A; 16A/250VAC, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 16A, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 24V DC, Relay series: HF115F, Switched voltage: max. 300V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 360Ω, Coil voltage min.: 8.4V DC, Coil voltage max.: 18V DC, Operate time: 15ms, Body dimensions: 29x12.7x15.7mm, Release time: 8ms, Coil power consumption: 400mW, Operating temperature: -40...85°C, Contact resistance: 100mΩ, Contact material: AgNi, Terminal pitch: 5mm, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote HF115F/012-1H3B nach Preis ab 1.97 EUR bis 6.03 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HF115F/012-1H3B | Hersteller : HONGFA RELAY |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A; 16A/250VAC Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 16A AC contacts rating @R: 16A / 250V AC DC contacts rating @R: 16A / 24V DC Relay series: HF115F Switched voltage: max. 300V DC; max. 440V AC Relay variant: miniature Mounting: PCB Coil resistance: 360Ω Coil voltage min.: 8.4V DC Coil voltage max.: 18V DC Operate time: 15ms Body dimensions: 29x12.7x15.7mm Release time: 8ms Coil power consumption: 400mW Operating temperature: -40...85°C Contact resistance: 100mΩ Contact material: AgNi Terminal pitch: 5mm |
auf Bestellung 259 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
HF115F/012-1H3B | Hersteller : Hongfa |
16A; 12V; SPST-NO; coil power 400mW; 29,0 x 16,0 x 13,0mm PCB; equivalent: RM85Z, RM83Z, AZ761, G2RL; flux proofed HF115F/012-1H3B power relay P HF115f012-1h3b Anzahl je Verpackung: 10 Stücke |
auf Bestellung 10 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||
HF115F/012-1H3B | Hersteller : HONGFA | HF115F/012-1H3B |
auf Bestellung 259 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
