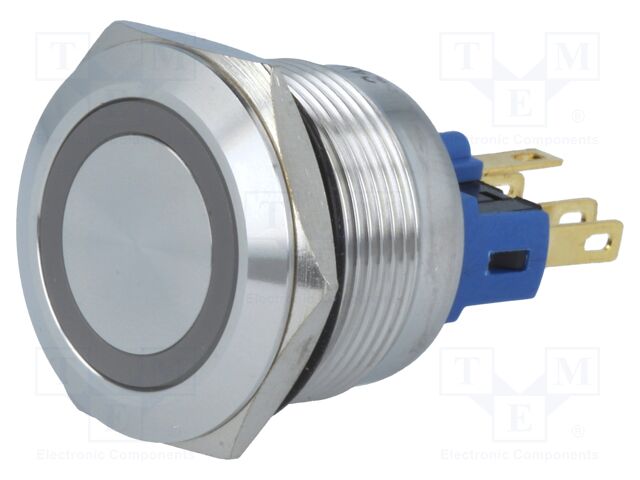

GQ22-11E/R/24V ONPOW
Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC
IP rating: IP65
Body material: stainless steel
Related items: M22-11D
Contact material: silver alloy
Type of switch: vandal resistant
Contacts configuration: SPST-NO + SPST-NC
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
Switching method: ON-(ON)
Stable positions number: 1
Operating Force: 5.5N
Illumination: LED; ring
Illumination voltage: 24V
Body colour: silver
Backlight colour: red
Button shape: flat
Number of positions: 2
Ring shape: rounded
Mechanical durability: 1000000 cycles
Test voltage: 1.5kV
Max. contact resistance:: 50mΩ
Operating temperature: -25...55°C
Mounting hole diameter: Ø22mm
Leads: for soldering
Electrical life: 50000 cycles
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC
IP rating: IP65
Body material: stainless steel
Related items: M22-11D
Contact material: silver alloy
Type of switch: vandal resistant
Contacts configuration: SPST-NO + SPST-NC
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
Switching method: ON-(ON)
Stable positions number: 1
Operating Force: 5.5N
Illumination: LED; ring
Illumination voltage: 24V
Body colour: silver
Backlight colour: red
Button shape: flat
Number of positions: 2
Ring shape: rounded
Mechanical durability: 1000000 cycles
Test voltage: 1.5kV
Max. contact resistance:: 50mΩ
Operating temperature: -25...55°C
Mounting hole diameter: Ø22mm
Leads: for soldering
Electrical life: 50000 cycles
auf Bestellung 19 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
5+ | 14.67 EUR |
7+ | 10.65 EUR |
8+ | 10.07 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details GQ22-11E/R/24V ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC, IP rating: IP65, Body material: stainless steel, Related items: M22-11D, Contact material: silver alloy, Type of switch: vandal resistant, Contacts configuration: SPST-NO + SPST-NC, AC contacts rating @R: 3A / 220V AC, DC contacts rating @R: 5A / 24V DC, Switching method: ON-(ON), Stable positions number: 1, Operating Force: 5.5N, Illumination: LED; ring, Illumination voltage: 24V, Body colour: silver, Backlight colour: red, Button shape: flat, Number of positions: 2, Ring shape: rounded, Mechanical durability: 1000000 cycles, Test voltage: 1.5kV, Max. contact resistance:: 50mΩ, Operating temperature: -25...55°C, Mounting hole diameter: Ø22mm, Leads: for soldering, Electrical life: 50000 cycles, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote GQ22-11E/R/24V nach Preis ab 10.07 EUR bis 26.24 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GQ22-11E/R/24V | Hersteller : ONPOW |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC IP rating: IP65 Body material: stainless steel Related items: M22-11D Contact material: silver alloy Type of switch: vandal resistant Contacts configuration: SPST-NO + SPST-NC AC contacts rating @R: 3A / 220V AC DC contacts rating @R: 5A / 24V DC Switching method: ON-(ON) Stable positions number: 1 Operating Force: 5.5N Illumination: LED; ring Illumination voltage: 24V Body colour: silver Backlight colour: red Button shape: flat Number of positions: 2 Ring shape: rounded Mechanical durability: 1000000 cycles Test voltage: 1.5kV Max. contact resistance:: 50mΩ Operating temperature: -25...55°C Mounting hole diameter: Ø22mm Leads: for soldering Electrical life: 50000 cycles Anzahl je Verpackung: 1 Stücke |
auf Bestellung 19 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||
GQ22-11E/R/24V | Hersteller : ONPOW |
22mm; momentary; ON-(ON); SPST-NO + SPST-NC; stainless steel; pin terminals; front shape-flat; illuminated LED 24V; ring; red; 5A, IP65; lifetime: 1000000 cycles Vandal proof push button switch; GQ22-11E/R/24V PRZ GQ22-11E/R/24V Anzahl je Verpackung: 2 Stücke |
auf Bestellung 6 Stücke: Lieferzeit 7-14 Tag (e) |
|
