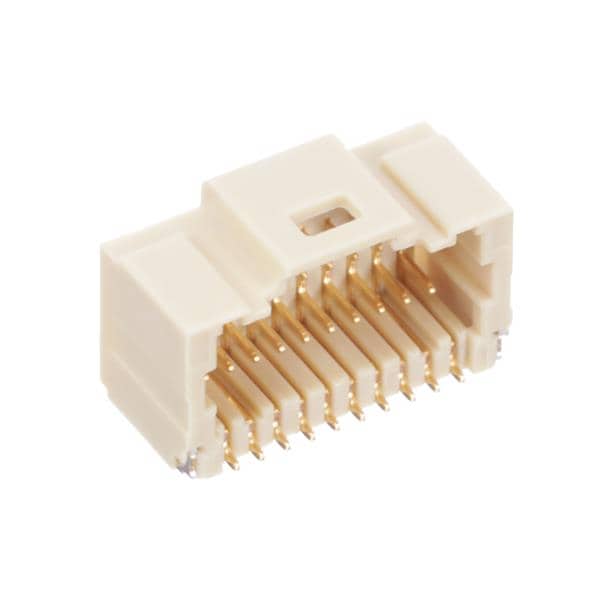

G846A201200T7HR Amphenol ICC (Commercial Products)
Hersteller: Amphenol ICC (Commercial Products)
Description: WIRE TO BOARD 1.0MM PITCH,R/A SM
Packaging: Cut Tape (CT)
Connector Type: Header
Voltage Rating: 50VAC/DC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Surface Mount, Right Angle
Number of Positions: 20
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -45°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Natural
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Rectangular
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T
Description: WIRE TO BOARD 1.0MM PITCH,R/A SM
Packaging: Cut Tape (CT)
Connector Type: Header
Voltage Rating: 50VAC/DC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Surface Mount, Right Angle
Number of Positions: 20
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -45°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Natural
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Rectangular
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T
auf Bestellung 325 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
4+ | 4.82 EUR |
10+ | 4.38 EUR |
100+ | 3.86 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G846A201200T7HR Amphenol ICC (Commercial Products)
Description: WIRE TO BOARD 1.0MM PITCH,R/A SM, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 50VAC/DC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Surface Mount, Right Angle, Number of Positions: 20, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -45°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Natural, Pitch - Mating: 0.039" (1.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Rectangular, Insulation Height: 0.325" (8.25mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA4T), Nylon 4T.
Weitere Produktangebote G846A201200T7HR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
G846A201200T7HR | Hersteller : Amphenol ICC (Commercial Products) |
Description: WIRE TO BOARD 1.0MM PITCH,R/A SM Packaging: Tape & Reel (TR) Connector Type: Header Voltage Rating: 50VAC/DC Current Rating (Amps): Varies by Wire Gauge Mounting Type: Surface Mount, Right Angle Number of Positions: 20 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -45°C ~ 105°C Contact Type: Male Pin Fastening Type: Latch Holder Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Natural Pitch - Mating: 0.039" (1.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 15.0µin (0.38µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Rectangular Insulation Height: 0.325" (8.25mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyamide (PA4T), Nylon 4T |
Produkt ist nicht verfügbar |
||
G846A201200T7HR | Hersteller : Amphenol Commercial Products | Headers & Wire Housings Wire to Board 1.0mm Pitch,R/A SMT,2x10Pin,15u GOLD,NY4T,LATCH Type,COLOR-WHITE |
Produkt ist nicht verfügbar |
