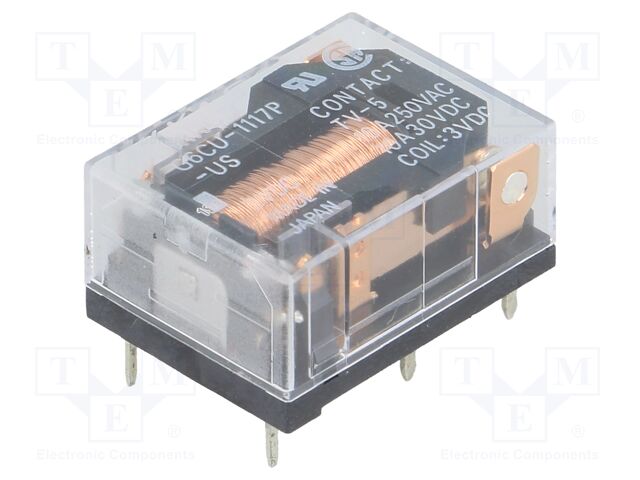

G6CU-1117P-US 3VDC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 3VDC; Icontacts max: 10A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 3V DC
Contact current max.: 10A
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 30V DC
Relay series: G6C
Switched voltage: max. 125V DC; max. 380V AC
Relay variant: bistable; miniature
Mounting: PCB; socket
Coil resistance: 45Ω
Operate time: 10ms
Body dimensions: 20x15x10mm
Release time: 10ms
Operating temperature: -25...70°C
Contact resistance: 30mΩ
Terminal pitch: 7.62mm
Coil current: 67mA
Enclosure description: standard seal
Design: single coil
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 3VDC; Icontacts max: 10A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 3V DC
Contact current max.: 10A
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 30V DC
Relay series: G6C
Switched voltage: max. 125V DC; max. 380V AC
Relay variant: bistable; miniature
Mounting: PCB; socket
Coil resistance: 45Ω
Operate time: 10ms
Body dimensions: 20x15x10mm
Release time: 10ms
Operating temperature: -25...70°C
Contact resistance: 30mΩ
Terminal pitch: 7.62mm
Coil current: 67mA
Enclosure description: standard seal
Design: single coil
Anzahl je Verpackung: 1 Stücke
auf Bestellung 23 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 10+ | 7.54 EUR |
| 13+ | 5.75 EUR |
| 14+ | 5.43 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G6CU-1117P-US 3VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 3VDC; Icontacts max: 10A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 3V DC, Contact current max.: 10A, AC contacts rating @R: 10A / 250V AC, DC contacts rating @R: 10A / 30V DC, Relay series: G6C, Switched voltage: max. 125V DC; max. 380V AC, Relay variant: bistable; miniature, Mounting: PCB; socket, Coil resistance: 45Ω, Operate time: 10ms, Body dimensions: 20x15x10mm, Release time: 10ms, Operating temperature: -25...70°C, Contact resistance: 30mΩ, Terminal pitch: 7.62mm, Coil current: 67mA, Enclosure description: standard seal, Design: single coil, Anzahl je Verpackung: 1 Stücke.
