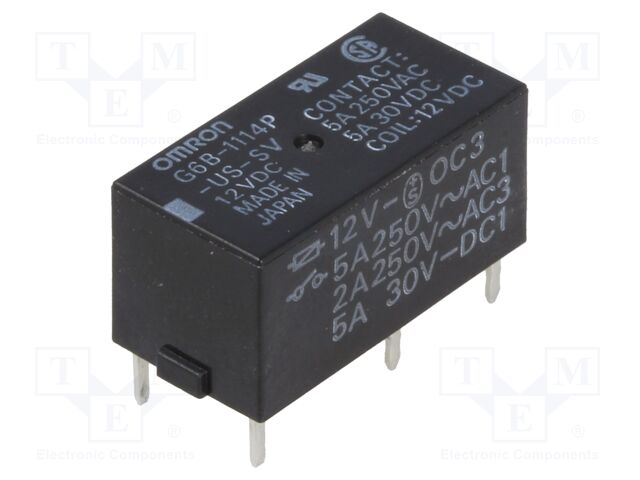

G6B-1114P-US-SV 12VDC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 5A
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Relay series: G6B
Switched voltage: max. 125V DC; max. 380V AC
Relay variant: miniature
Mounting: PCB; socket
Coil resistance: 720Ω
Operate time: 10ms
Body dimensions: 20x10x10mm
Release time: 10ms
Operating temperature: -25...70°C
Contact resistance: 30mΩ
Terminal pitch: 7.62mm
Coil current: 16.7mA
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 5A
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Relay series: G6B
Switched voltage: max. 125V DC; max. 380V AC
Relay variant: miniature
Mounting: PCB; socket
Coil resistance: 720Ω
Operate time: 10ms
Body dimensions: 20x10x10mm
Release time: 10ms
Operating temperature: -25...70°C
Contact resistance: 30mΩ
Terminal pitch: 7.62mm
Coil current: 16.7mA
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details G6B-1114P-US-SV 12VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 5A, AC contacts rating @R: 5A / 250V AC, DC contacts rating @R: 5A / 30V DC, Relay series: G6B, Switched voltage: max. 125V DC; max. 380V AC, Relay variant: miniature, Mounting: PCB; socket, Coil resistance: 720Ω, Operate time: 10ms, Body dimensions: 20x10x10mm, Release time: 10ms, Operating temperature: -25...70°C, Contact resistance: 30mΩ, Terminal pitch: 7.62mm, Coil current: 16.7mA, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote G6B-1114P-US-SV 12VDC
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
G6B-1114P-US-SV 12VDC | Hersteller : OMRON Electronic Components |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 5A AC contacts rating @R: 5A / 250V AC DC contacts rating @R: 5A / 30V DC Relay series: G6B Switched voltage: max. 125V DC; max. 380V AC Relay variant: miniature Mounting: PCB; socket Coil resistance: 720Ω Operate time: 10ms Body dimensions: 20x10x10mm Release time: 10ms Operating temperature: -25...70°C Contact resistance: 30mΩ Terminal pitch: 7.62mm Coil current: 16.7mA |
Produkt ist nicht verfügbar |
