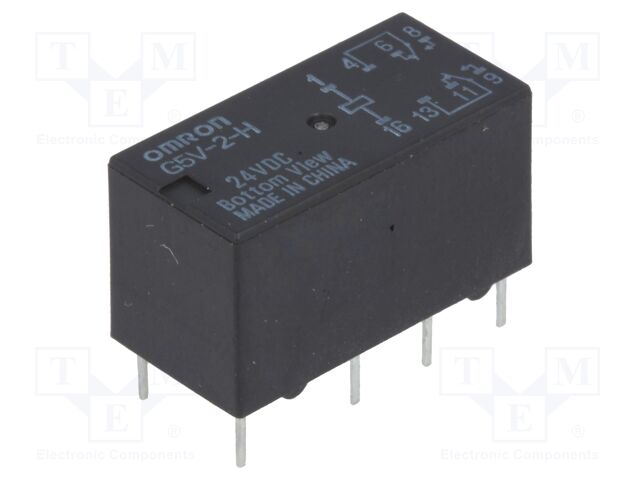

G5V-2-H 24VDC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Relay series: G5V-2
Switched voltage: max. 125V AC; max. 125V DC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.6kΩ
Operate time: 7ms
Body dimensions: 20.5x10.1x11.5mm
Release time: 3ms
Coil power consumption: 360mW
Operating temperature: -25...70°C
Contact resistance: 50mΩ
Terminal pitch: 5mm
Coil current: 15mA
Contact plating: gold-plated
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Relay series: G5V-2
Switched voltage: max. 125V AC; max. 125V DC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.6kΩ
Operate time: 7ms
Body dimensions: 20.5x10.1x11.5mm
Release time: 3ms
Coil power consumption: 360mW
Operating temperature: -25...70°C
Contact resistance: 50mΩ
Terminal pitch: 5mm
Coil current: 15mA
Contact plating: gold-plated
Anzahl je Verpackung: 1 Stücke
auf Bestellung 396 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
18+ | 4.03 EUR |
20+ | 3.66 EUR |
27+ | 2.66 EUR |
29+ | 2.52 EUR |
500+ | 2.47 EUR |
