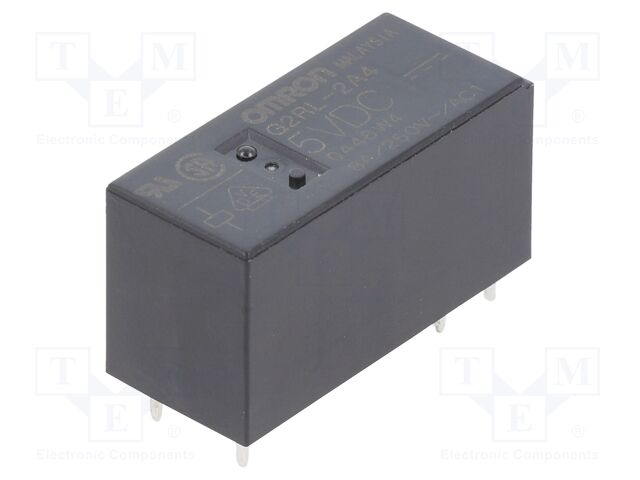

G2RL-2A4 DC5 Omron Electronics Inc-EMC Div
Hersteller: Omron Electronics Inc-EMC Div
Description: RELAY GEN PURPOSE DPST 8A 5V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 5VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Approval Agency: CQC, CSA, UR, VDE
Relay Type: General Purpose
Coil Current: 80 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Alloy, Cadmium Free
Contact Form: DPST-NO (2 Form A)
Contact Rating (Current): 8 A
Switching Voltage: 440VAC, 300VDC - Max
Must Release Voltage: 0.5 VDC
Must Operate Voltage: 3.5 VDC
Operate Time: 15 ms
Release Time: 5 ms
Part Status: Active
Coil Insulation: Class F
Load - Max Switching: 3520VA, 2400W
Description: RELAY GEN PURPOSE DPST 8A 5V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 5VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Approval Agency: CQC, CSA, UR, VDE
Relay Type: General Purpose
Coil Current: 80 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Alloy, Cadmium Free
Contact Form: DPST-NO (2 Form A)
Contact Rating (Current): 8 A
Switching Voltage: 440VAC, 300VDC - Max
Must Release Voltage: 0.5 VDC
Must Operate Voltage: 3.5 VDC
Operate Time: 15 ms
Release Time: 5 ms
Part Status: Active
Coil Insulation: Class F
Load - Max Switching: 3520VA, 2400W
auf Bestellung 12 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
3+ | 7.52 EUR |
10+ | 7.05 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G2RL-2A4 DC5 Omron Electronics Inc-EMC Div
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPST-NO; Ucoil: 5VDC; Icontacts max: 8A, Type of relay: electromagnetic, Contacts configuration: DPST-NO, Rated coil voltage: 5V DC, Contact current max.: 8A, AC contacts rating @R: 8A / 250V AC, DC contacts rating @R: 8A / 24V DC, Relay series: G2RL, Switched voltage: max. 300V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 62.5Ω, Operate time: 15ms, Body dimensions: 29x12.7x15.7mm, Release time: 5ms, Operating temperature: -40...85°C, Contact resistance: 100mΩ, Terminal pitch: 5mm, Coil current: 80mA, Leads: for PCB, Enclosure description: hermetic seal, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote G2RL-2A4 DC5 nach Preis ab 4.42 EUR bis 7.59 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
G2RL-2A4-DC5 | Hersteller : Omron Electronics | General Purpose Relays DPST-NO 5VDC Sealed ClassF GP Type |
auf Bestellung 513 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||
G2RL2A4DC5 | Hersteller : Omron | Power Relay 5VDC 8A DPST-NO(29x12.7x15.7)mm THT |
Produkt ist nicht verfügbar |
||||||||||||||||||
G2RL-2A4 DC5 | Hersteller : OMRON Electronic Components |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPST-NO; Ucoil: 5VDC; Icontacts max: 8A Type of relay: electromagnetic Contacts configuration: DPST-NO Rated coil voltage: 5V DC Contact current max.: 8A AC contacts rating @R: 8A / 250V AC DC contacts rating @R: 8A / 24V DC Relay series: G2RL Switched voltage: max. 300V DC; max. 440V AC Relay variant: miniature Mounting: PCB Coil resistance: 62.5Ω Operate time: 15ms Body dimensions: 29x12.7x15.7mm Release time: 5ms Operating temperature: -40...85°C Contact resistance: 100mΩ Terminal pitch: 5mm Coil current: 80mA Leads: for PCB Enclosure description: hermetic seal Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
||||||||||||||||||
G2RL-2A4 DC5 | Hersteller : OMRON Electronic Components |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPST-NO; Ucoil: 5VDC; Icontacts max: 8A Type of relay: electromagnetic Contacts configuration: DPST-NO Rated coil voltage: 5V DC Contact current max.: 8A AC contacts rating @R: 8A / 250V AC DC contacts rating @R: 8A / 24V DC Relay series: G2RL Switched voltage: max. 300V DC; max. 440V AC Relay variant: miniature Mounting: PCB Coil resistance: 62.5Ω Operate time: 15ms Body dimensions: 29x12.7x15.7mm Release time: 5ms Operating temperature: -40...85°C Contact resistance: 100mΩ Terminal pitch: 5mm Coil current: 80mA Leads: for PCB Enclosure description: hermetic seal |
Produkt ist nicht verfügbar |
