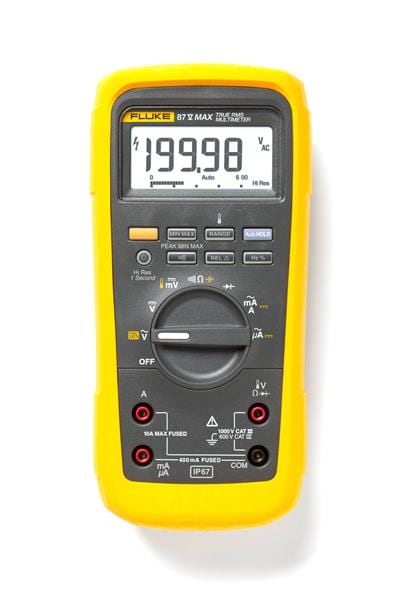

FLUKE 87-V MAX
Hersteller: FLUKECategory: Portable digital multimeters
Description: Digital multimeter; LCD; (6000/20000); Bargraph: 33segm.40x/s
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: (6000/20000)
Bargraph: 33 segm. 40x/s
DC current measuring range: 0.1...600µA; 6mA; 60mA; 400mA; 6A; 10A; 20A < 30s
AC current measuring range: 0.1...600µA; 6mA; 60mA; 400mA; 6A; 10A; (20A <30s)
Measuring instrument features: auto and manual ranging; automatic power-off; built-in thermometer; filter ensuring voltage and frequency measuring accuracy; HOLD function; impact resistant holster; indicates incorrect connection of test leads; MIN/MAX/MEDIUM function; PEAK HOLD function; test leads resistance compensation
DC current measuring accuracy: ±(0.2% + 4 digit)
AC current measuring accuracy: ±(1% + 2 digit)
DC voltage measuring range: 0.1...600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.05% + 1 digit)
AC voltage measuring range: 0.1...600mV; 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(0.7% + 4 digit)
Resistance measuring accuracy: ±(0.2%+1 digit)
True effective value measurement: True RMS AC
Resistance measuring range: 100mΩ...600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 50MΩ
Capacitance measuring range: 10pF...10nF; 100nF; 1µF; 10µF; 100µF; 9.999mF
Capacitance measuring accuracy: ±(1%+ 2 digit)
Frequency measuring range: 10mHz...199.99Hz; 1999.9Hz; 19.999kHz; 199.99kHz
Frequency measuring accuracy: ±(0.005%+1 digit)
Temperature measuring range: -200...1090°C
Temperature measurement accuracy: ±(1% + 10 digit)
Temperature measurement resolution: 0.1°C
Continuity test: acoustic indication
Diode test: 1mA @3V
Pollution degree: 2
Weight with battery: 700g
Power supply: battery LR6 AA 1,5V x3
Standard equipment: crocodile clip FLK-AC175 x2; FLK-80BK-A drop-like K-type probe; FLK-TL175 test leads
Optional equipment: 400A AC/DC FLK-I410 current clamp probe; FLK-C25 soft cover; FLK-TL238 set; FLK-TOOLPAK strap with magnet for suspending the meter
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
IP rating: IP67
Related items: FLK-80BK-A; FLK-80PJ-1; FLK-80PJ-9; FLK-80PJ-EXT; FLK-80PK-1; FLK-80PK-3A; FLK-80PK-8; FLK-80PK-9; FLK-80PK-11; FLK-80PK-22; FLK-80PK-24; FLK-80PK-25; FLK-80PK-26; FLK-80PK-27; FLK-80PR-60; FLK-80PT-EXT; FLK-80T-150UA; POM-4408; POM-5519A; POM-5673B
Battery/ rechargeable battery: battery LR6 AA 1,5V x3
Illumination: yes
Dimensions (W x H x D): 63x198x100mm
Conductance measurement: 0.01...60nS
Conductance measuring accuracy: ±(1% + 10digit)
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 1+ | 939.51 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FLUKE 87-V MAX FLUKE
Description: FLUKE - FLUKE-87V-MAX - Digitalmultimeter, automatisch, manuell, 1kV AC/DC, 10A AC/DC, TRMS, 19999 Zählwerte, 4.5-stellig, tariffCode: 90303100, Messwert Gleichspannung, max.: 1kV, Messwert Wechselspannung, max.: 1kV, Messwert Widerstand, max.: 50Mohm, Messwert Gleichstrom, max.: 10A, rohsCompliant: Y-EX, hazardous: false, rohsPhthalatesCompliant: TBA, usEccn: 3A992.a, Schritte: 19999, Herstellergewährleistung: Begrenzte Lebenszeitgewährleistung, euEccn: NLR, Anzahl der Stellen: 4.5, DMM-Messverfahren: Echteffektivwert, DMM-Funktionen: AC/DC-Strom, AC/DC-Spannung, Kapazität, Durchgang, Diode, Frequenz, Widerstand, Temperatur, Produktpalette: -, productTraceability: No, Messwert Wechselstrom, max.: 10A, Bereichswahl: Automatisch, manuell, SVHC: No SVHC (15-Jun-2015).
