FDB0190N807L onsemi
![fdb0190n807l-d.pdf](/images/adobe-acrobat.png)
Description: MOSFET N-CH 80V 270A TO263-7
Packaging: Tape & Reel (TR)
Package / Case: TO-263-7, D2PAK (6 Leads + Tab)
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 270A (Tc)
Rds On (Max) @ Id, Vgs: 1.7mOhm @ 34A, 10V
Power Dissipation (Max): 3.8W (Ta), 250W (Tc)
Vgs(th) (Max) @ Id: 4V @ 250µA
Supplier Device Package: TO-263-7
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 8V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 249 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 19110 pF @ 40 V
auf Bestellung 1600 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
800+ | 5.64 EUR |
1600+ | 4.83 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FDB0190N807L onsemi
Description: MOSFET N-CH 80V 270A TO263-7, Packaging: Tape & Reel (TR), Package / Case: TO-263-7, D2PAK (6 Leads + Tab), Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 175°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 270A (Tc), Rds On (Max) @ Id, Vgs: 1.7mOhm @ 34A, 10V, Power Dissipation (Max): 3.8W (Ta), 250W (Tc), Vgs(th) (Max) @ Id: 4V @ 250µA, Supplier Device Package: TO-263-7, Part Status: Active, Drive Voltage (Max Rds On, Min Rds On): 8V, 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 80 V, Gate Charge (Qg) (Max) @ Vgs: 249 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 19110 pF @ 40 V.
Weitere Produktangebote FDB0190N807L nach Preis ab 4.61 EUR bis 9.35 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
FDB0190N807L | Hersteller : onsemi / Fairchild |
![]() |
auf Bestellung 6400 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
|
FDB0190N807L | Hersteller : onsemi |
![]() Packaging: Cut Tape (CT) Package / Case: TO-263-7, D2PAK (6 Leads + Tab) Mounting Type: Surface Mount Operating Temperature: -55°C ~ 175°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: N-Channel Current - Continuous Drain (Id) @ 25°C: 270A (Tc) Rds On (Max) @ Id, Vgs: 1.7mOhm @ 34A, 10V Power Dissipation (Max): 3.8W (Ta), 250W (Tc) Vgs(th) (Max) @ Id: 4V @ 250µA Supplier Device Package: TO-263-7 Part Status: Active Drive Voltage (Max Rds On, Min Rds On): 8V, 10V Vgs (Max): ±20V Drain to Source Voltage (Vdss): 80 V Gate Charge (Qg) (Max) @ Vgs: 249 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 19110 pF @ 40 V |
auf Bestellung 1600 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
FDB0190N807L | Hersteller : ON Semiconductor |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||||||
![]() |
FDB0190N807L | Hersteller : ONSEMI |

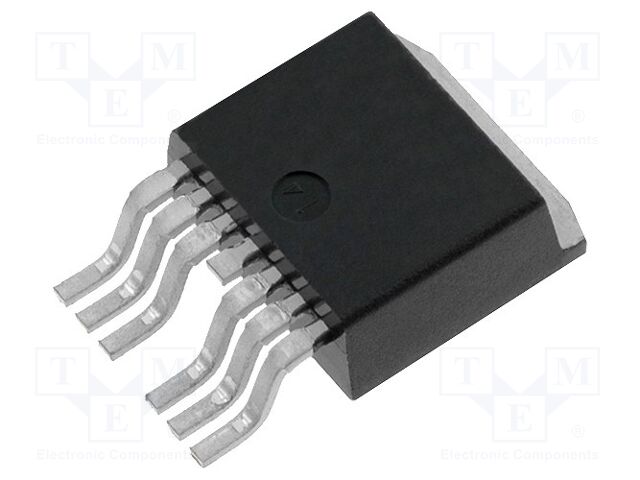

![]() Description: Transistor: N-MOSFET; unipolar; 80V; 190A; Idm: 1440A; 250W; D2PAK-6 Mounting: SMD Gate charge: 249nC Kind of channel: enhanced Gate-source voltage: ±20V Pulsed drain current: 1.44kA Case: D2PAK-6 Drain-source voltage: 80V Drain current: 190A On-state resistance: 4.3mΩ Type of transistor: N-MOSFET Power dissipation: 250W Polarisation: unipolar Kind of package: reel; tape Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
|||||||||||||||||
![]() |
FDB0190N807L | Hersteller : ONSEMI |
![]() Description: Transistor: N-MOSFET; unipolar; 80V; 190A; Idm: 1440A; 250W; D2PAK-6 Mounting: SMD Gate charge: 249nC Kind of channel: enhanced Gate-source voltage: ±20V Pulsed drain current: 1.44kA Case: D2PAK-6 Drain-source voltage: 80V Drain current: 190A On-state resistance: 4.3mΩ Type of transistor: N-MOSFET Power dissipation: 250W Polarisation: unipolar Kind of package: reel; tape |
Produkt ist nicht verfügbar |
