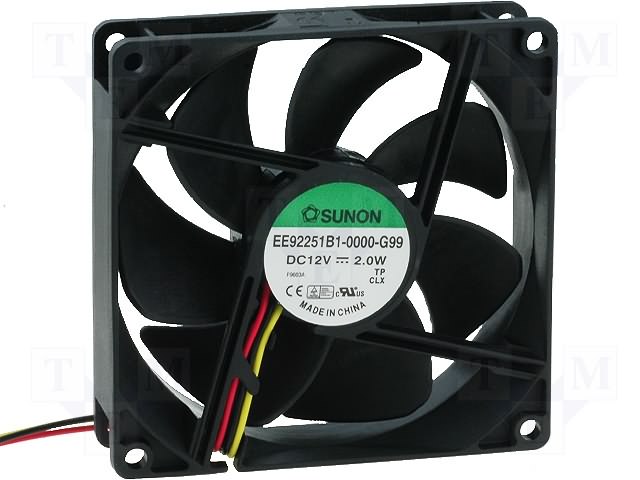

EE92251B1-000U-G99 SUNON
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 92x92x25mm; 87.55m3/h; 34dBA; ball bearing
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V
Fan dimensions: 92x92x25mm
Power consumption: 2W
Current rating: 0.165A
Fan efficiency: 87.55m3/h
Noise level: 34dBA
Kind of Bearing: ball bearing
Signal output: F type
Rotational rate/speed: 3000 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x3
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 3.81mm H2O
Wire size: 24AWG
Anzahl je Verpackung: 1 Stücke
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 92x92x25mm; 87.55m3/h; 34dBA; ball bearing
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V
Fan dimensions: 92x92x25mm
Power consumption: 2W
Current rating: 0.165A
Fan efficiency: 87.55m3/h
Noise level: 34dBA
Kind of Bearing: ball bearing
Signal output: F type
Rotational rate/speed: 3000 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x3
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 3.81mm H2O
Wire size: 24AWG
Anzahl je Verpackung: 1 Stücke
auf Bestellung 102 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
12+ | 6.11 EUR |
14+ | 5.31 EUR |
50+ | 4.35 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EE92251B1-000U-G99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 92x92x25mm; 87.55m3/h; 34dBA; ball bearing, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V, Fan dimensions: 92x92x25mm, Power consumption: 2W, Current rating: 0.165A, Fan efficiency: 87.55m3/h, Noise level: 34dBA, Kind of Bearing: ball bearing, Signal output: F type, Rotational rate/speed: 3000 (±10%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x3, Operating temperature: -10...70°C, Cable length: 0.3m, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 3.81mm H2O, Wire size: 24AWG, Anzahl je Verpackung: 1 Stücke.
