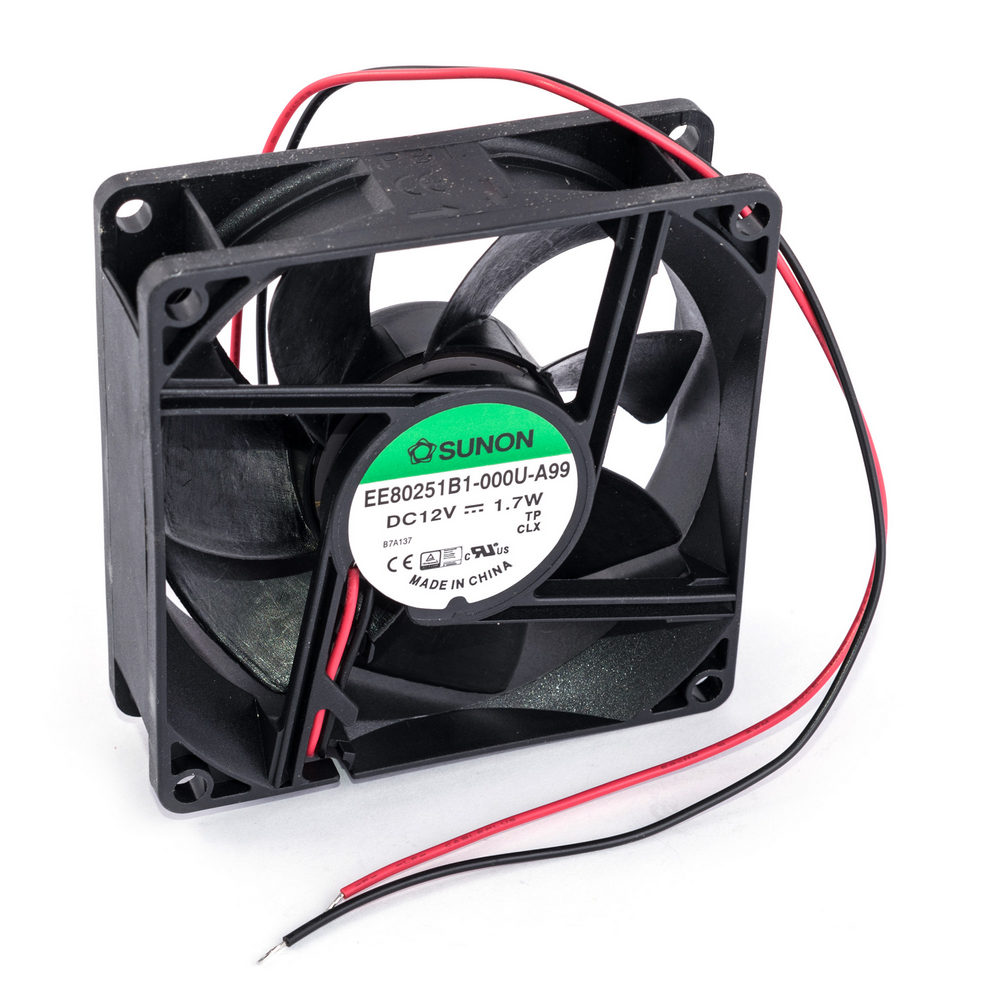

EE80251B1-000U-A99 SUNON
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 80x80x25mm; 69.7m3/h; 33dBA; ball; Len: 300mm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V
Fan dimensions: 80x80x25mm
Power consumption: 1.7W
Current rating: 0.145A
Fan efficiency: 69.7m3/h
Noise level: 33dBA
Kind of Bearing: ball
Rotational rate/speed: 3200 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 500MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: E
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 4.57mm H2O
Wire size: 28AWG
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 80x80x25mm; 69.7m3/h; 33dBA; ball; Len: 300mm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V
Fan dimensions: 80x80x25mm
Power consumption: 1.7W
Current rating: 0.145A
Fan efficiency: 69.7m3/h
Noise level: 33dBA
Kind of Bearing: ball
Rotational rate/speed: 3200 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 500MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: E
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 4.57mm H2O
Wire size: 28AWG
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 71.5 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EE80251B1-000U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 80x80x25mm; 69.7m3/h; 33dBA; ball; Len: 300mm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V, Fan dimensions: 80x80x25mm, Power consumption: 1.7W, Current rating: 0.145A, Fan efficiency: 69.7m3/h, Noise level: 33dBA, Kind of Bearing: ball, Rotational rate/speed: 3200 (±10%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 500MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: E, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.3m, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 4.57mm H2O, Wire size: 28AWG.
Möglichen Substitutionen EE80251B1-000U-A99 SUNON
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|

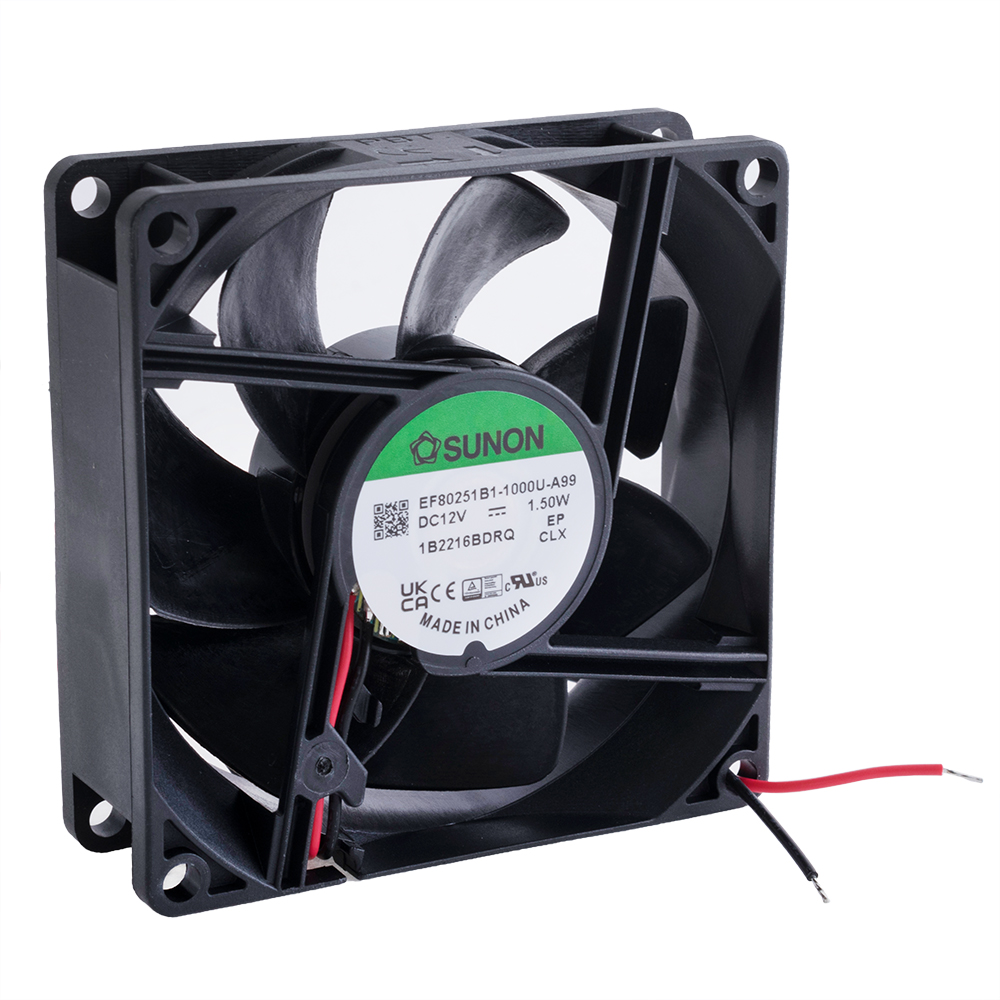

Вентилятор 80x80x25, 12V, (EF80251B1-A99-A) Produktcode: 184880 |
