![EC4SBW-48D12 EC4SBW-48D12](https://ce8dc832c.cloudimg.io/v7/_cdn_/C6/8E/B0/00/0/780396_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=15287dc76a23e43932b25bd777e9ecb7c767b4cc)

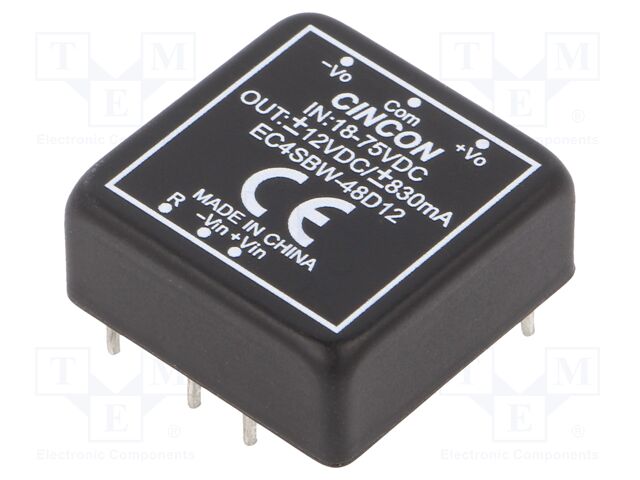

EC4SBW-48D12 CINCON
![Datasheet-EC4SBW-series.pdf](/images/adobe-acrobat.png)
Category: DC/DC Converters
Description: Converter: DC/DC; 20W; Uin: 18÷75V; Uout: 12VDC; Uout2: -12VDC; THT
Type of converter: DC/DC
Power: 20W
Input voltage: 18...75V
Output voltage: 12V DC
Output voltage 2: -12V DC
Output current: 0.83A
Output current 2: 0.83A
Body dimensions: 25.4x25.4x10.2mm
Efficiency: 88.5%
Operating temperature: -40...85°C
Switching frequency: 330kHz
Protection: anti-overload OPP; short circuit protection SCP; voltage drop BOP
Insulation voltage: 1.5kV DC
Mounting: THT
Manufacturer series: EC4SBW
Number of outputs: 2
Trade name: EC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 12 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
2+ | 36.49 EUR |
3+ | 34.55 EUR |
12+ | 34.53 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EC4SBW-48D12 CINCON
Description: DC DC CONVERTER +/-12V 20W, Features: Remote On/Off, OCP, OVP, SCP, UVLO, Packaging: Tube, Package / Case: 6-DIP Module, Size / Dimension: 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 85°C (With Derating), Applications: ITE (Commercial), Voltage - Input (Max): 75V, Approval Agency: CE, Efficiency: 88.5%, Current - Output (Max): 830mA, 830mA, Voltage - Input (Min): 18V, Voltage - Output 1: 12V, Voltage - Output 2: -12V, Control Features: Enable, Active High, Part Status: Active, Power (Watts): 20 W, Number of Outputs: 2, Voltage - Isolation: 1.5 kV, Standard Number: 62368-1.
Weitere Produktangebote EC4SBW-48D12 nach Preis ab 34.53 EUR bis 57.82 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
EC4SBW-48D12 | Hersteller : CINCON |
![]() Description: Converter: DC/DC; 20W; Uin: 18÷75V; Uout: 12VDC; Uout2: -12VDC; THT Type of converter: DC/DC Power: 20W Input voltage: 18...75V Output voltage: 12V DC Output voltage 2: -12V DC Output current: 0.83A Output current 2: 0.83A Body dimensions: 25.4x25.4x10.2mm Efficiency: 88.5% Operating temperature: -40...85°C Switching frequency: 330kHz Protection: anti-overload OPP; short circuit protection SCP; voltage drop BOP Insulation voltage: 1.5kV DC Mounting: THT Manufacturer series: EC4SBW Number of outputs: 2 Trade name: EC |
auf Bestellung 12 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
![]() |
EC4SBW-48D12 | Hersteller : Cincon |
![]() |
auf Bestellung 16 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
![]() |
EC4SBW-48D12 | Hersteller : Cincon Electronics Co. LTD |
![]() Features: Remote On/Off, OCP, OVP, SCP, UVLO Packaging: Tube Package / Case: 6-DIP Module Size / Dimension: 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial) Voltage - Input (Max): 75V Approval Agency: CE Efficiency: 88.5% Current - Output (Max): 830mA, 830mA Voltage - Input (Min): 18V Voltage - Output 1: 12V Voltage - Output 2: -12V Control Features: Enable, Active High Part Status: Active Power (Watts): 20 W Number of Outputs: 2 Voltage - Isolation: 1.5 kV Standard Number: 62368-1 |
auf Bestellung 48 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
EC4SBW-48D12 | Hersteller : Cincon Electronics Co |
![]() |
Produkt ist nicht verfügbar |
||||||||||||||||
EC4SBW-48D12 | Hersteller : Cincon Electronics Co |
![]() |
Produkt ist nicht verfügbar |
