![EC3SAW-24D12HP EC3SAW-24D12HP](https://ce8dc832c.cloudimg.io/v7/_cdn_/70/10/D0/00/0/852231_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=27553fedaa1612fd2be905e26b1bd20697ec5fa9)

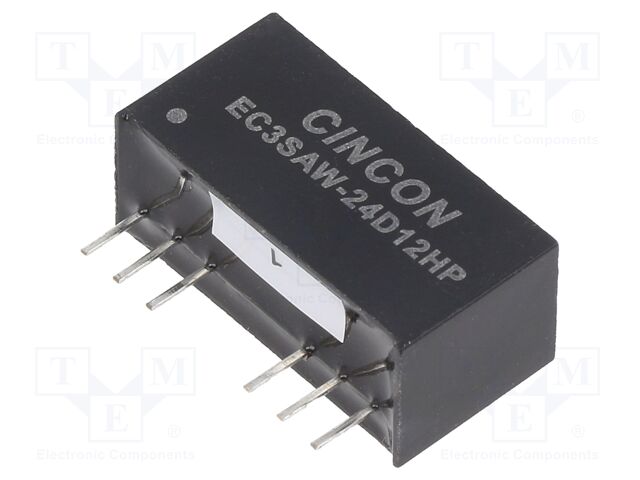

EC3SAW-24D12HP CINCON
![Datasheet-EC3SAWH-series.pdf](/images/adobe-acrobat.png)
Category: DC/DC Converters
Description: Converter: DC/DC; 3W; Uin: 9÷36V; Uout: 12VDC; Uout2: -12VDC; 100kHz
Type of converter: DC/DC
Body dimensions: 21.8x9.2x11.1mm
Operating temperature: -40...85°C
Protection: anti-overload OPP; short circuit protection SCP
Power: 3W
Efficiency: 83%
Manufacturer series: EC3SAWH
Input voltage: 9...36V
Output voltage 2: -12V DC
Switching frequency: 100kHz
Output current 2: 125mA
Trade name: EC
Mounting: THT
Number of outputs: 2
Output voltage: 12V DC
Output current: 0.125A
Insulation voltage: 3kV DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 20 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
5+ | 15.29 EUR |
6+ | 12.56 EUR |
7+ | 11.88 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EC3SAW-24D12HP CINCON
Description: DC DC CONVERTER +/-12V 3W, Packaging: Tube, Features: Adjustable Output, Remote On/Off, Package / Case: 8-SIP Module, 7 Leads, Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 85°C (With Derating), Applications: ITE (Commercial), Voltage - Input (Max): 36V, Approval Agency: CE, UL, Efficiency: 84%, Current - Output (Max): 125mA, 125mA, Voltage - Input (Min): 9V, Voltage - Output 1: 12V, Voltage - Output 2: -12V, Power (Watts): 3 W, Number of Outputs: 2, Voltage - Isolation: 1.5 kV.
Weitere Produktangebote EC3SAW-24D12HP nach Preis ab 11.88 EUR bis 20.45 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
EC3SAW-24D12HP | Hersteller : CINCON |
![]() Description: Converter: DC/DC; 3W; Uin: 9÷36V; Uout: 12VDC; Uout2: -12VDC; 100kHz Type of converter: DC/DC Body dimensions: 21.8x9.2x11.1mm Operating temperature: -40...85°C Protection: anti-overload OPP; short circuit protection SCP Power: 3W Efficiency: 83% Manufacturer series: EC3SAWH Input voltage: 9...36V Output voltage 2: -12V DC Switching frequency: 100kHz Output current 2: 125mA Trade name: EC Mounting: THT Number of outputs: 2 Output voltage: 12V DC Output current: 0.125A Insulation voltage: 3kV DC |
auf Bestellung 20 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
EC3SAW-24D12HP | Hersteller : Cincon Electronics Co. LTD |
![]() Packaging: Tube Features: Adjustable Output, Remote On/Off Package / Case: 8-SIP Module, 7 Leads Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial) Voltage - Input (Max): 36V Approval Agency: CE, UL Efficiency: 84% Current - Output (Max): 125mA, 125mA Voltage - Input (Min): 9V Voltage - Output 1: 12V Voltage - Output 2: -12V Power (Watts): 3 W Number of Outputs: 2 Voltage - Isolation: 1.5 kV |
auf Bestellung 13 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
EC3SAW-24D12HP | Hersteller : Cincon |
![]() |
auf Bestellung 12 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
EC3SAW-24D12HP | Hersteller : Cincon Electronics Co |
![]() |
Produkt ist nicht verfügbar |
