Produkte > Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör > DP203AT2122LBT Sunon
![DP203AT2122LBT DP203AT2122LBT](/img/120x120x25.-230v.-dp203at2122lbt-1.jpg)

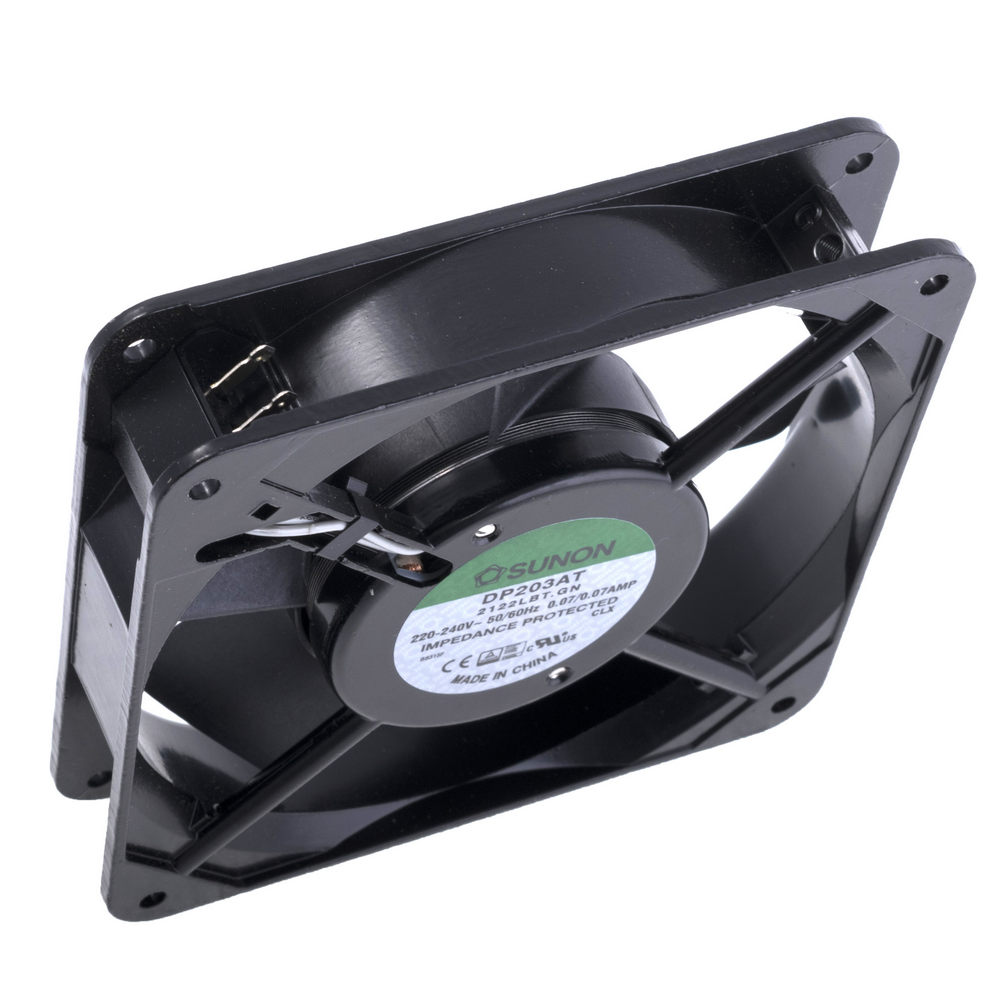

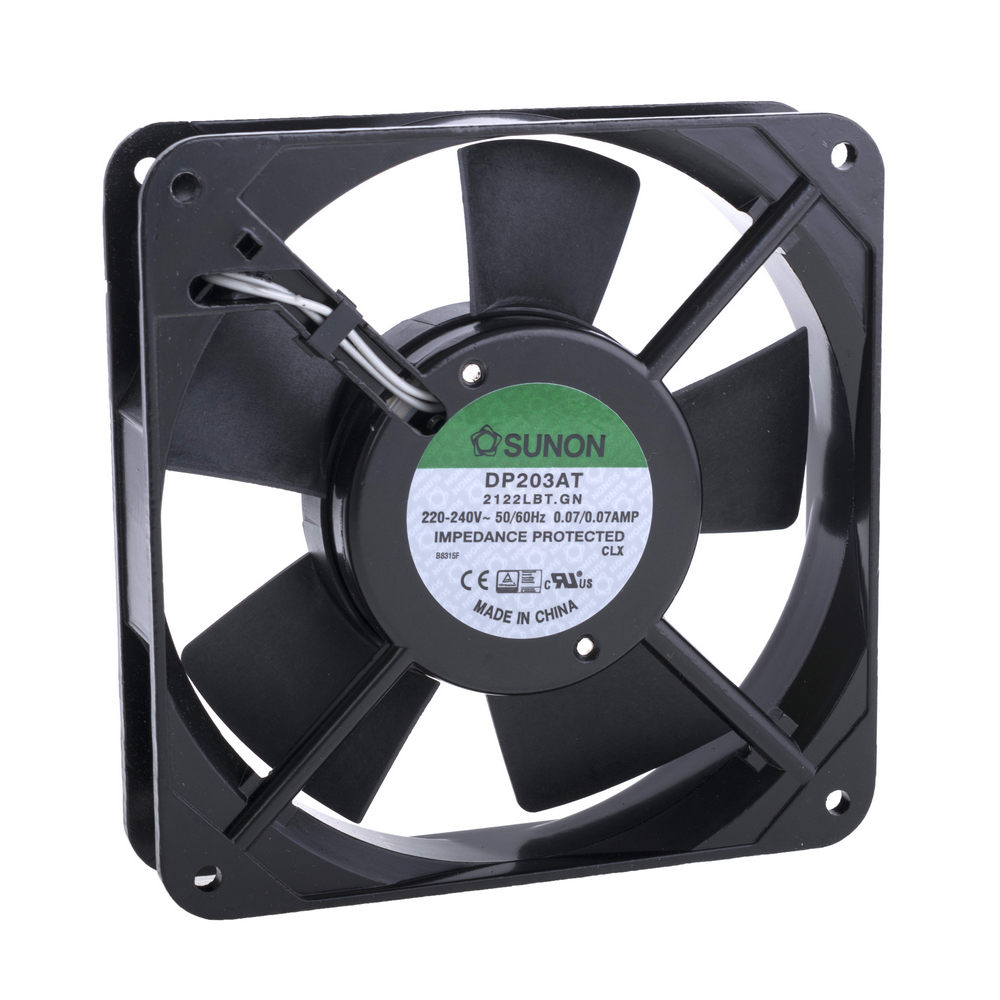

DP203AT2122LBT Sunon
![DC Brushless Fan & Blower_U.pdf](/images/adobe-acrobat.png)
Produktcode: 52378
Hersteller: SunonAbmessungen, mm: 120x120x25
Spannung, V: 230 AC
Luftvolumen, m3/Stunde: 79
Leistung, Watt: 14
Lärm, dB: 37
Rotationsgeschwindigkeit, r/min: 1700
Beschreibung: Lager roll-on-
ZCODE: 8414 51 00 90
auf Bestellung 8 Stück:
Lieferzeit 21-28 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 8.5 EUR |
Produktrezensionen
Produktbewertung abgeben
Verwandte Produkte DP203AT2122LBT Sunon
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
![]() +3 |
Befestigung für Ventilatore und Gitter, Plastikklammer FSP-1 Produktcode: 62414 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Beschreibung: Befestigung |
verfügbar: 296 Stück
|
|
|||||||
![]() +1 |
Befestigung für Ventilatore und Gitter, Plastikklammer FSP-2 Produktcode: 26792 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Beschreibung: Befestigung |
verfügbar: 432 Stück
|
|
Weitere Produktangebote DP203AT2122LBT nach Preis ab 9.38 EUR bis 18.26 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
DP203AT2122LBT.GN | Hersteller : SUNON |
![]() ![]() Description: Fan: AC; axial; 230VAC; 120x120x25mm; 79m3/h(±7%); 37dBA; 1700rpm Type of fan: AC Kind of fan: axial Supply voltage: 230V AC Fan dimensions: 120x120x25mm Power consumption: 14W Current rating: 70mA Fan efficiency: 79m3/h (±7%) Noise level: 37dBA Kind of Bearing: ball bearing Rotational rate/speed: 1700rpm Current and power consumption tolerance: ±15% Frequency: 50Hz Min. insulation resistance: 500MΩ Impeller material: thermoplastic Enclosure material: aluminium Leads: connectors 2,8x0,3mm Operating temperature: -10...70°C Flammability rating: UL94V-0 Static pressure: 3.05mm H2O Anzahl je Verpackung: 1 Stücke |
auf Bestellung 1263 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
![]() |
DP203AT2122LBT.GN | Hersteller : SUNON |
![]() ![]() Description: Fan: AC; axial; 230VAC; 120x120x25mm; 79m3/h(±7%); 37dBA; 1700rpm Type of fan: AC Kind of fan: axial Supply voltage: 230V AC Fan dimensions: 120x120x25mm Power consumption: 14W Current rating: 70mA Fan efficiency: 79m3/h (±7%) Noise level: 37dBA Kind of Bearing: ball bearing Rotational rate/speed: 1700rpm Current and power consumption tolerance: ±15% Frequency: 50Hz Min. insulation resistance: 500MΩ Impeller material: thermoplastic Enclosure material: aluminium Leads: connectors 2,8x0,3mm Operating temperature: -10...70°C Flammability rating: UL94V-0 Static pressure: 3.05mm H2O |
auf Bestellung 1263 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
DP203AT2122LBT.GN | Hersteller : Sunon | DP203AT2122LBT.GN |
auf Bestellung 1381 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
DP203AT-2122LBT.GN | Hersteller : Sunon Fans |
![]() Packaging: Bulk Power (Watts): 13.00W Voltage - Rated: 220 ~ 240VAC Size / Dimension: Square - 119mm L x 119mm H Bearing Type: Ball RPM: 1900 RPM Air Flow: 54.0 CFM (1.51m³/min) Width: 25.50mm Weight: 0.728 lb (330.22 g) Termination: 2 Terminals Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 40.0dB(A) Static Pressure: 0.130 in H2O (32.4 Pa) Part Status: Active |
Produkt ist nicht verfügbar |
||||||||||||
![]() |
DP203AT-2122LBT.GN | Hersteller : Sunon |
![]() |
Produkt ist nicht verfügbar |
