![DMTH10H032LPSWQ-13 DMTH10H032LPSWQ-13](https://mm.digikey.com/Volume0/opasdata/d220001/medias/images/3759/31%7EPowerDI5060-8%28SWP%29Type-UX%7E%7E8.jpg)

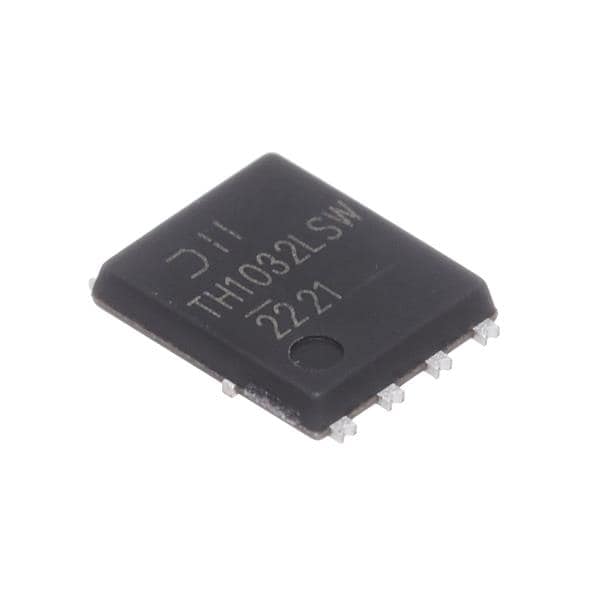

DMTH10H032LPSWQ-13 Diodes Incorporated
![DMTH10H032LPSWQ.pdf](/images/adobe-acrobat.png)
Description: MOSFET BVDSS: 61V~100V POWERDI50
Packaging: Cut Tape (CT)
Package / Case: 8-PowerTDFN
Mounting Type: Surface Mount, Wettable Flank
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 33A (Tc)
Rds On (Max) @ Id, Vgs: 32mOhm @ 5A, 10V
Power Dissipation (Max): 3.4W (Ta), 68W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: PowerDI5060-8 (Type UX)
Grade: Automotive
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 11.9 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 683 pF @ 50 V
Qualification: AEC-Q101
auf Bestellung 2457 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
17+ | 1.07 EUR |
20+ | 0.92 EUR |
100+ | 0.64 EUR |
500+ | 0.53 EUR |
1000+ | 0.45 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details DMTH10H032LPSWQ-13 Diodes Incorporated
Description: MOSFET BVDSS: 61V~100V POWERDI50, Packaging: Tape & Reel (TR), Package / Case: 8-PowerTDFN, Mounting Type: Surface Mount, Wettable Flank, Operating Temperature: -55°C ~ 175°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 33A (Tc), Rds On (Max) @ Id, Vgs: 32mOhm @ 5A, 10V, Power Dissipation (Max): 3.4W (Ta), 68W (Tc), Vgs(th) (Max) @ Id: 2.5V @ 250µA, Supplier Device Package: PowerDI5060-8 (Type UX), Grade: Automotive, Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 100 V, Gate Charge (Qg) (Max) @ Vgs: 11.9 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 683 pF @ 50 V, Qualification: AEC-Q101.
Weitere Produktangebote DMTH10H032LPSWQ-13 nach Preis ab 0.39 EUR bis 1.1 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DMTH10H032LPSWQ-13 | Hersteller : Diodes Incorporated |
![]() |
auf Bestellung 2475 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||
DMTH10H032LPSWQ-13 | Hersteller : DIODES INCORPORATED |
![]() Description: Transistor: N-MOSFET; unipolar Mounting: SMD Kind of package: tape Polarisation: unipolar Kind of channel: enhanced Type of transistor: N-MOSFET Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
||||||||||||||||||
![]() |
DMTH10H032LPSWQ-13 | Hersteller : Diodes Incorporated |
![]() Packaging: Tape & Reel (TR) Package / Case: 8-PowerTDFN Mounting Type: Surface Mount, Wettable Flank Operating Temperature: -55°C ~ 175°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: N-Channel Current - Continuous Drain (Id) @ 25°C: 33A (Tc) Rds On (Max) @ Id, Vgs: 32mOhm @ 5A, 10V Power Dissipation (Max): 3.4W (Ta), 68W (Tc) Vgs(th) (Max) @ Id: 2.5V @ 250µA Supplier Device Package: PowerDI5060-8 (Type UX) Grade: Automotive Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V Vgs (Max): ±20V Drain to Source Voltage (Vdss): 100 V Gate Charge (Qg) (Max) @ Vgs: 11.9 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 683 pF @ 50 V Qualification: AEC-Q101 |
Produkt ist nicht verfügbar |
|||||||||||||||||
DMTH10H032LPSWQ-13 | Hersteller : DIODES INCORPORATED |
![]() Description: Transistor: N-MOSFET; unipolar Mounting: SMD Kind of package: tape Polarisation: unipolar Kind of channel: enhanced Type of transistor: N-MOSFET |
Produkt ist nicht verfügbar |
