![DLC03A-05 DLC03A-05](https://ce8dc832c.cloudimg.io/v7/_cdn_/93/BE/A0/00/0/715577_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=d1ea48343506f7a4761a586c475deaa588fe7c59)

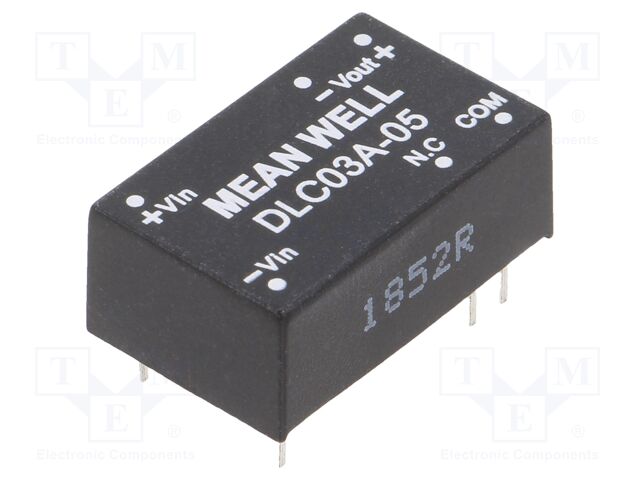

DLC03A-05 MEAN WELL
![SLC03DLC03-spec.pdf](/images/adobe-acrobat.png)
Category: DC/DC Converters
Description: Converter: DC/DC; 3W; Uin: 9÷18V; Uout: 5VDC; Uout2: -5VDC; DIP16
Operating temperature: -40...85°C
Mounting: THT
Manufacturer series: DLC03
Input voltage: 9...18V
Type of converter: DC/DC
Output voltage 2: -5V DC
Efficiency: 79%
Switching frequency: 100kHz
Protection: anti-overload OPP; short circuit protection SCP; undervoltage UVP
Output current 2: 0...300mA
Case: DIP16
Power: 3W
Number of outputs: 2
Body dimensions: 22.1x13.8x8.55mm
Output voltage: 5V DC
Output current: 0...300mA
Insulation voltage: 1.5kV DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 9 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
7+ | 10.61 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details DLC03A-05 MEAN WELL
Category: DC/DC Converters, Description: Converter: DC/DC; 3W; Uin: 9÷18V; Uout: 5VDC; Uout2: -5VDC; DIP16, Operating temperature: -40...85°C, Mounting: THT, Manufacturer series: DLC03, Input voltage: 9...18V, Type of converter: DC/DC, Output voltage 2: -5V DC, Efficiency: 79%, Switching frequency: 100kHz, Protection: anti-overload OPP; short circuit protection SCP; undervoltage UVP, Output current 2: 0...300mA, Case: DIP16, Power: 3W, Number of outputs: 2, Body dimensions: 22.1x13.8x8.55mm, Output voltage: 5V DC, Output current: 0...300mA, Insulation voltage: 1.5kV DC, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote DLC03A-05 nach Preis ab 10.61 EUR bis 16.56 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
DLC03A-05 | Hersteller : MEAN WELL |
![]() Description: Converter: DC/DC; 3W; Uin: 9÷18V; Uout: 5VDC; Uout2: -5VDC; DIP16 Operating temperature: -40...85°C Mounting: THT Manufacturer series: DLC03 Input voltage: 9...18V Type of converter: DC/DC Output voltage 2: -5V DC Efficiency: 79% Switching frequency: 100kHz Protection: anti-overload OPP; short circuit protection SCP; undervoltage UVP Output current 2: 0...300mA Case: DIP16 Power: 3W Number of outputs: 2 Body dimensions: 22.1x13.8x8.55mm Output voltage: 5V DC Output current: 0...300mA Insulation voltage: 1.5kV DC |
auf Bestellung 9 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
DLC03A-05 | Hersteller : MEAN WELL |
![]() |
auf Bestellung 5 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
DLC03A-05 | Hersteller : MEAN WELL USA Inc. |
![]() Packaging: Tube Features: OCP, SCP, UVLO Package / Case: 16-DIP Module, 6 Leads Size / Dimension: 0.87" L x 0.54" W x 0.34" H (22.1mm x 13.8mm x 8.6mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial) Voltage - Input (Max): 18V Efficiency: 79% Current - Output (Max): 300mA, 300mA Voltage - Input (Min): 9V Voltage - Output 1: 5V Voltage - Output 2: -5V Power (Watts): 3 W Number of Outputs: 2 Voltage - Isolation: 1.5 kV |
auf Bestellung 14 Stücke: Lieferzeit 10-14 Tag (e) |
|
