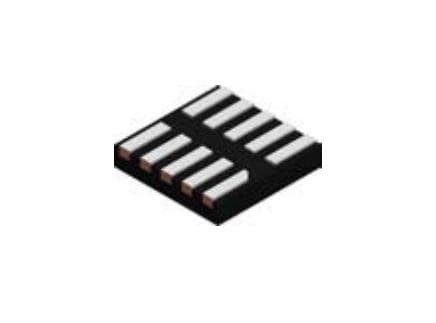

![DAC82001DRXR DAC82001DRXR](https://mm.digikey.com/Volume0/opasdata/d220001/medias/images/5792/MFG_DAC82002DRXR.jpg)
DAC82001DRXR Texas Instruments
![dac82001.pdf](/images/adobe-acrobat.png)
Description: IC DAC 16BIT V-OUT 10WSON
Packaging: Cut Tape (CT)
Package / Case: 10-WFDFN
Output Type: Voltage - Unbuffered
Mounting Type: Surface Mount
Number of Bits: 16
Data Interface: 3-Wire Serial, SPI
Reference Type: External
Operating Temperature: -40°C ~ 85°C
Voltage - Supply, Analog: 2.7V ~ 5.5V
Voltage - Supply, Digital: 2.7V ~ 5.5V
Settling Time: 1µs (Typ)
Supplier Device Package: 10-WSON (2.5x2.5)
Architecture: R-2R, Segmented DAC
Number of D/A Converters: 1
INL/DNL (LSB): ±0.6, ±0.5
Differential Output: No
DigiKey Programmable: Not Verified
auf Bestellung 1961 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
2+ | 14.7 EUR |
10+ | 13.49 EUR |
25+ | 12.93 EUR |
100+ | 12.31 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details DAC82001DRXR Texas Instruments
Description: IC DAC 16BIT V-OUT 10WSON, Packaging: Tape & Reel (TR), Package / Case: 10-WFDFN, Output Type: Voltage - Unbuffered, Mounting Type: Surface Mount, Number of Bits: 16, Data Interface: 3-Wire Serial, SPI, Reference Type: External, Operating Temperature: -40°C ~ 85°C, Voltage - Supply, Analog: 2.7V ~ 5.5V, Voltage - Supply, Digital: 2.7V ~ 5.5V, Settling Time: 1µs (Typ), Supplier Device Package: 10-WSON (2.5x2.5), Architecture: R-2R, Segmented DAC, Number of D/A Converters: 1, INL/DNL (LSB): ±0.6, ±0.5, Differential Output: No, DigiKey Programmable: Not Verified.
Weitere Produktangebote DAC82001DRXR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
DAC82001DRXR | Hersteller : TEXAS INSTRUMENTS |
![]() Description: IC: D/A converter; 16bit; 1Msps; Ch: 1; WSON10; -40÷85°C; 2.7÷5.5VDC Type of integrated circuit: D/A converter Interface: SPI Case: WSON10 Number of channels: 1 Supply voltage: 2.7...5.5V DC Mounting: SMD Operating temperature: -40...85°C Converter resolution: 16bit Sampling speed: 1Msps Max INL: ±2LSB Max DNL: ±1LSB Anzahl je Verpackung: 3000 Stücke |
Produkt ist nicht verfügbar |
||
![]() |
DAC82001DRXR | Hersteller : Texas Instruments |
![]() Packaging: Tape & Reel (TR) Package / Case: 10-WFDFN Output Type: Voltage - Unbuffered Mounting Type: Surface Mount Number of Bits: 16 Data Interface: 3-Wire Serial, SPI Reference Type: External Operating Temperature: -40°C ~ 85°C Voltage - Supply, Analog: 2.7V ~ 5.5V Voltage - Supply, Digital: 2.7V ~ 5.5V Settling Time: 1µs (Typ) Supplier Device Package: 10-WSON (2.5x2.5) Architecture: R-2R, Segmented DAC Number of D/A Converters: 1 INL/DNL (LSB): ±0.6, ±0.5 Differential Output: No DigiKey Programmable: Not Verified |
Produkt ist nicht verfügbar |
|
|
DAC82001DRXR | Hersteller : Texas Instruments |
![]() |
Produkt ist nicht verfügbar |
|
DAC82001DRXR | Hersteller : TEXAS INSTRUMENTS |
![]() Description: IC: D/A converter; 16bit; 1Msps; Ch: 1; WSON10; -40÷85°C; 2.7÷5.5VDC Type of integrated circuit: D/A converter Interface: SPI Case: WSON10 Number of channels: 1 Supply voltage: 2.7...5.5V DC Mounting: SMD Operating temperature: -40...85°C Converter resolution: 16bit Sampling speed: 1Msps Max INL: ±2LSB Max DNL: ±1LSB |
Produkt ist nicht verfügbar |
