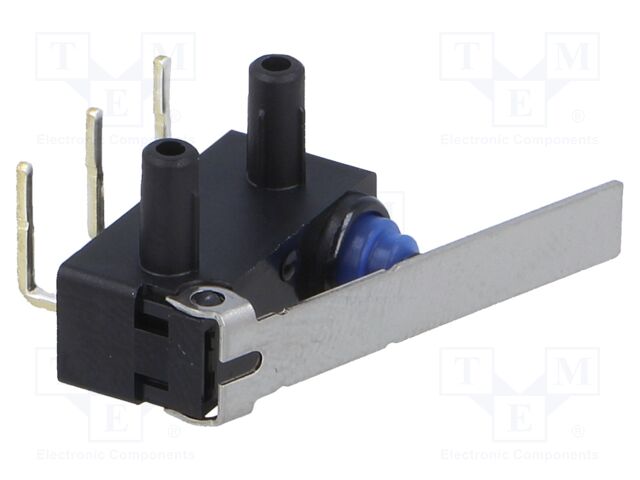

D2HW-BL221DL OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 0.1A/125VAC; 2A/12VDC; with lever; SPDT
Type of switch: microswitch SNAP ACTION
AC contacts rating @R: 0.1A / 125V AC
DC contacts rating @R: 2A / 12V DC
Switches features: with lever
Contacts configuration: SPDT
Max. contact resistance:: 100mΩ
Switching method: ON-(ON)
Number of positions: 2
Manufacturer series: D2HW-B
Stable positions number: 1
IP rating: IP67
Leads: angled; for PCB; right
Body dimensions: 13.3x5.3x6.5mm
Mechanical durability: 1000000 cycles
Operating temperature: -40...85°C
Operating Force: 0.75N
Lever length: 20mm
Electrical life: 100000 cycles
Contact plating: gold-plated
Terminal pitch: 5.08mm
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 0.1A/125VAC; 2A/12VDC; with lever; SPDT
Type of switch: microswitch SNAP ACTION
AC contacts rating @R: 0.1A / 125V AC
DC contacts rating @R: 2A / 12V DC
Switches features: with lever
Contacts configuration: SPDT
Max. contact resistance:: 100mΩ
Switching method: ON-(ON)
Number of positions: 2
Manufacturer series: D2HW-B
Stable positions number: 1
IP rating: IP67
Leads: angled; for PCB; right
Body dimensions: 13.3x5.3x6.5mm
Mechanical durability: 1000000 cycles
Operating temperature: -40...85°C
Operating Force: 0.75N
Lever length: 20mm
Electrical life: 100000 cycles
Contact plating: gold-plated
Terminal pitch: 5.08mm
auf Bestellung 53 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
34+ | 2.14 EUR |
36+ | 2.03 EUR |
41+ | 1.76 EUR |
43+ | 1.67 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details D2HW-BL221DL OMRON Electronic Components
Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 0.1A/125VAC; 2A/12VDC; with lever; SPDT, Type of switch: microswitch SNAP ACTION, AC contacts rating @R: 0.1A / 125V AC, DC contacts rating @R: 2A / 12V DC, Switches features: with lever, Contacts configuration: SPDT, Max. contact resistance:: 100mΩ, Switching method: ON-(ON), Number of positions: 2, Manufacturer series: D2HW-B, Stable positions number: 1, IP rating: IP67, Leads: angled; for PCB; right, Body dimensions: 13.3x5.3x6.5mm, Mechanical durability: 1000000 cycles, Operating temperature: -40...85°C, Operating Force: 0.75N, Lever length: 20mm, Electrical life: 100000 cycles, Contact plating: gold-plated, Terminal pitch: 5.08mm, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote D2HW-BL221DL nach Preis ab 1.67 EUR bis 6.42 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D2HW-BL221DL | Hersteller : OMRON Electronic Components |
Category: Microswitches SNAP ACTION Description: Microswitch SNAP ACTION; 0.1A/125VAC; 2A/12VDC; with lever; SPDT Type of switch: microswitch SNAP ACTION AC contacts rating @R: 0.1A / 125V AC DC contacts rating @R: 2A / 12V DC Switches features: with lever Contacts configuration: SPDT Max. contact resistance:: 100mΩ Switching method: ON-(ON) Number of positions: 2 Manufacturer series: D2HW-B Stable positions number: 1 IP rating: IP67 Leads: angled; for PCB; right Body dimensions: 13.3x5.3x6.5mm Mechanical durability: 1000000 cycles Operating temperature: -40...85°C Operating Force: 0.75N Lever length: 20mm Electrical life: 100000 cycles Contact plating: gold-plated Terminal pitch: 5.08mm Anzahl je Verpackung: 1 Stücke |
auf Bestellung 53 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||||
D2HW-BL221DL | Hersteller : Omron | Switch Snap Action N.O./N.C. SPDT Long Hinge Lever 2A 125VAC 42VDC 0.5N Thru-Hole PC Pins |
auf Bestellung 500 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
D2HW-BL221DL | Hersteller : Omron | Switch Snap Action N.O./N.C. SPDT Long Hinge Lever 2A 125VAC 42VDC 0.5N Thru-Hole PC Pins |
auf Bestellung 500 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
D2HW-BL221DL | Hersteller : Omron | Switch Snap Action N.O./N.C. SPDT Long Hinge Lever 2A 125VAC 42VDC 0.5N Thru-Hole PC Pins |
auf Bestellung 350 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
D2HW-BL221DL | Hersteller : Omron Electronics Inc-EMC Div |
Description: SWITCH SNAP ACT SPDT 0.1A 125V Packaging: Tray Features: Support Posts Current Rating (Amps): 100mA (AC), 2A (DC) Mounting Type: Through Hole, Right Angle Circuit: SPDT Switch Function: On-Mom Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Actuator Type: Lever, Straight Operating Force: 50gf Ingress Protection: IP67 - Dust Tight, Waterproof Release Force: 3.059gf Differential Travel: 0.031" (0.8mm) Overtravel: 0.098" (2.5mm) Operating Position: 0.366" (9.3mm) Part Status: Active Voltage Rating - AC: 125 V Voltage Rating - DC: 12 V |
auf Bestellung 453 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||
D2HW-BL221DL | Hersteller : Omron Electronics | Basic / Snap Action Switches LONG HINGE LEVER PCB |
auf Bestellung 36 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||
D2HW-BL221DL | Hersteller : OMRON / PARTNER STOCK |
Description: OMRON / PARTNER STOCK - D2HW-BL221DL - Mikroschalter, Subminiatur, Langhebel, SPDT, Lötanschluss, 2 mA, 12 V tariffCode: 85365080 rohsCompliant: YES Schalteranschlüsse: Lötanschluss Mikroschalter-Betätiger: Langhebel hazardous: false rohsPhthalatesCompliant: YES Kontaktstrom, max.: 2mA usEccn: EAR99 AC-Kontaktspannung, nom.: 125V euEccn: NLR DC-Kontaktspannung, nom.: 12V Produktpalette: D2HW Series productTraceability: No Betätigungskraft, max.: 0.5N Kontaktkonfiguration: SPDT Mikroschaltertyp: Subminiatur SVHC: No SVHC (23-Jan-2024) |
auf Bestellung 350 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||||
D2HWBL221DL | Hersteller : Omron | Switch Snap Action N.O./N.C. SPDT Long Hinge Lever 2A 125VAC 42VDC 0.5N Thru-Hole PC Pins |
auf Bestellung 500 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||||
D2HW-BL221DL | Hersteller : Omron | Switch Snap Action N.O./N.C. SPDT Long Hinge Lever 2A 125VAC 42VDC 0.5N Thru-Hole PC Pins |
Produkt ist nicht verfügbar |
||||||||||||||||||
D2HW-BL221DL | Hersteller : Omron | Switch Snap Action N.O./N.C. SPDT Long Hinge Lever 2A 125VAC 42VDC 0.5N Thru-Hole PC Pins |
Produkt ist nicht verfügbar |
