![D2F-01F D2F-01F](https://ce8dc832c.cloudimg.io/v7/_cdn_/9A/8C/50/00/0/379049_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=82834df8a1f92f4c7834aa9f4e33c9ab0f3b7589)

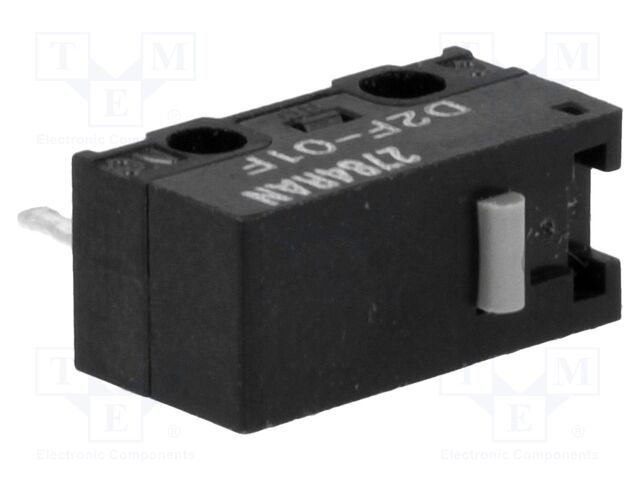

D2F-01F OMRON Electronic Components
![D2F.pdf](/images/adobe-acrobat.png)
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 1A/125VAC; 0.1A/30VDC; without lever
Type of switch: microswitch SNAP ACTION
AC contacts rating @R: 1A / 125V AC
DC contacts rating @R: 0.1A / 30V DC
Switches features: without lever
Contacts configuration: SPDT
Switching method: ON-(ON)
Number of positions: 2
Stable positions number: 1
IP rating: IP40
Leads: for PCB; straight
Body dimensions: 12.8x5.8x6mm
Mechanical durability: 1000000 cycles
Operating temperature: -25...85°C
Operating Force: 0.74N
Terminal pitch: 5.08mm
Manufacturer series: D2F
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2647 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
88+ | 0.82 EUR |
94+ | 0.76 EUR |
102+ | 0.71 EUR |
107+ | 0.67 EUR |
500+ | 0.64 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details D2F-01F OMRON Electronic Components
Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 1A/125VAC; 0.1A/30VDC; without lever, Type of switch: microswitch SNAP ACTION, AC contacts rating @R: 1A / 125V AC, DC contacts rating @R: 0.1A / 30V DC, Switches features: without lever, Contacts configuration: SPDT, Switching method: ON-(ON), Number of positions: 2, Stable positions number: 1, IP rating: IP40, Leads: for PCB; straight, Body dimensions: 12.8x5.8x6mm, Mechanical durability: 1000000 cycles, Operating temperature: -25...85°C, Operating Force: 0.74N, Terminal pitch: 5.08mm, Manufacturer series: D2F, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote D2F-01F nach Preis ab 0.64 EUR bis 3.04 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
D2F-01F | Hersteller : OMRON Electronic Components |
![]() Description: Microswitch SNAP ACTION; 1A/125VAC; 0.1A/30VDC; without lever Type of switch: microswitch SNAP ACTION AC contacts rating @R: 1A / 125V AC DC contacts rating @R: 0.1A / 30V DC Switches features: without lever Contacts configuration: SPDT Switching method: ON-(ON) Number of positions: 2 Stable positions number: 1 IP rating: IP40 Leads: for PCB; straight Body dimensions: 12.8x5.8x6mm Mechanical durability: 1000000 cycles Operating temperature: -25...85°C Operating Force: 0.74N Terminal pitch: 5.08mm Manufacturer series: D2F |
auf Bestellung 2647 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||||
![]() |
D2F-01F | Hersteller : Omron |
![]() |
auf Bestellung 3851 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||||
![]() |
D2F-01F | Hersteller : Omron |
![]() |
auf Bestellung 2700 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||||
![]() |
D2F-01F | Hersteller : Omron |
![]() |
auf Bestellung 200 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||||
![]() |
D2F-01F | Hersteller : Omron Electronics |
![]() |
auf Bestellung 1494 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||||
![]() |
D2F-01F | Hersteller : Omron Electronics Inc-EMC Div |
![]() Packaging: Tray Current Rating (Amps): 100mA (DC) Mounting Type: Through Hole Circuit: SPDT Switch Function: On-Mom Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Actuator Type: Round (Pin Plunger) Operating Force: 75gf Ingress Protection: IP40 Release Force: 5.099gf Pretravel: 0.020" (0.5mm) Differential Travel: 0.005" (0.13mm) Overtravel: 0.010" (0.25mm) Operating Position: 0.217" (5.5mm) Part Status: Active Voltage Rating - DC: 30 V |
auf Bestellung 21504 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||||
![]() |
D2F01F | Hersteller : OMRON ELECTRONIC COMPONENTS |
![]() tariffCode: 85365007 rohsCompliant: YES Schalteranschlüsse: Lötanschluss Mikroschalter-Betätiger: Stiftstößel hazardous: false rohsPhthalatesCompliant: YES Kontaktstrom, max.: 100mA usEccn: EAR99 AC-Kontaktspannung, nom.: 125VAC euEccn: NLR DC-Kontaktspannung, nom.: 30VDC Produktpalette: D2F productTraceability: No Betätigungskraft, max.: 0.74N Kontaktkonfiguration: SPDT Mikroschaltertyp: Ultra-Subminiatur SVHC: No SVHC (23-Jan-2024) |
auf Bestellung 10198 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||||||
![]() |
D2F-01F | Hersteller : OMRON / PARTNER STOCK |
![]() tariffCode: 85365080 rohsCompliant: YES Schalteranschlüsse: Lötanschluss Mikroschalter-Betätiger: Stiftstößel hazardous: false rohsPhthalatesCompliant: YES Kontaktstrom, max.: 100mA usEccn: EAR99 AC-Kontaktspannung, nom.: 125V euEccn: NLR DC-Kontaktspannung, nom.: 30V Produktpalette: D2F Series productTraceability: No Betätigungskraft, max.: 75gf Kontaktkonfiguration: SPDT Mikroschaltertyp: Ultra-Subminiatur SVHC: No SVHC (23-Jan-2024) |
auf Bestellung 3851 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||||||
![]() |
D2F01F | Hersteller : Omron |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||||||||||
![]() |
D2F-01F | Hersteller : Omron |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||||||||||
![]() |
D2F-01F | Hersteller : Omron |
![]() |
Produkt ist nicht verfügbar |
