![D2F-01FL3 D2F-01FL3](https://ce8dc832c.cloudimg.io/v7/_cdn_/7A/8C/50/00/0/379047_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=3bfb5dc3b8a4dcf6e4beafd0554c06a750548cc3)

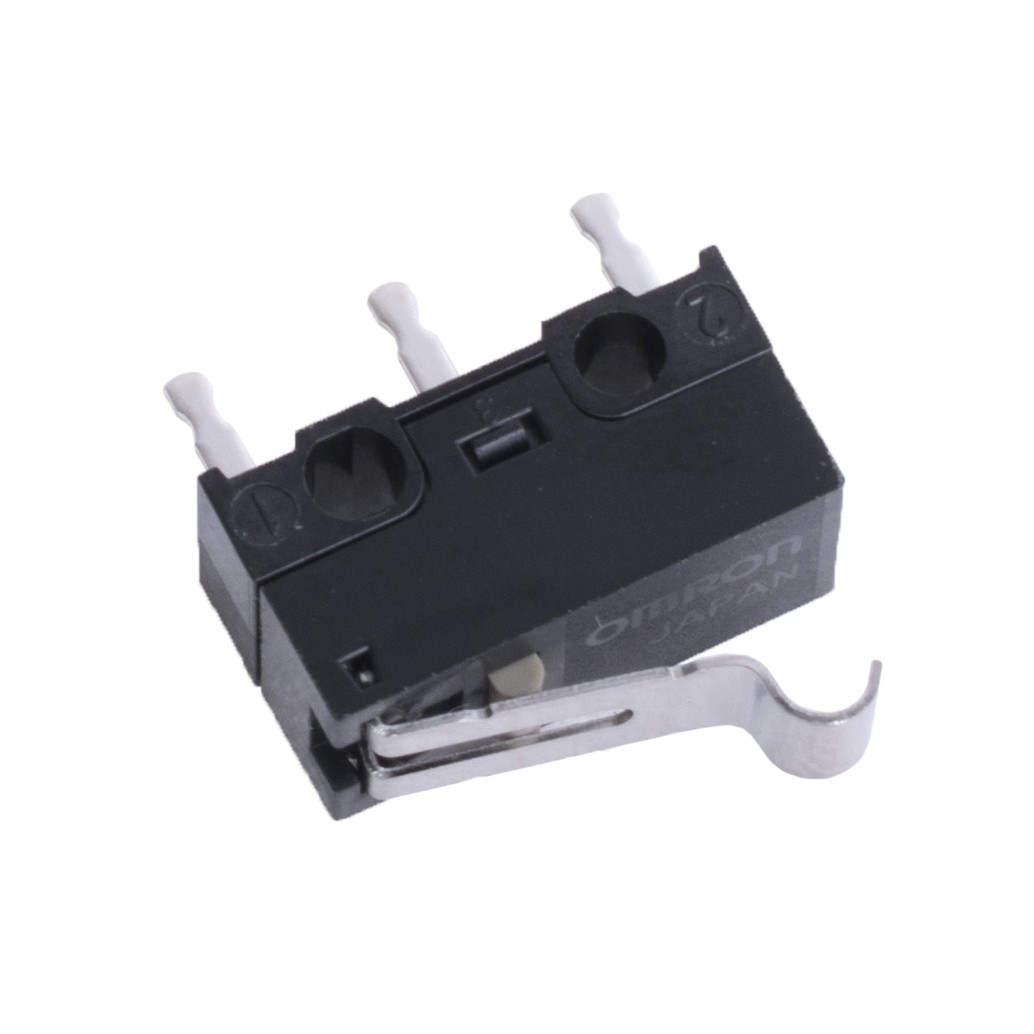

D2F-01FL3 OMRON Electronic Components
![D2F.pdf](/images/adobe-acrobat.png)
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 1A/125VAC; 0.1A/30VDC; SPDT; ON-(ON)
Type of switch: microswitch SNAP ACTION
AC contacts rating @R: 1A / 125V AC
DC contacts rating @R: 0.1A / 30V DC
Switches features: with lever with roller simulation
Contacts configuration: SPDT
Switching method: ON-(ON)
Number of positions: 2
Manufacturer series: D2F
Stable positions number: 1
IP rating: IP40
Leads: for PCB; self-clinching
Body dimensions: 12.8x5.8x6mm
Mechanical durability: 1000000 cycles
Operating temperature: -25...85°C
Operating Force: 0.74N
Lever length: 10mm
Terminal pitch: 5.08mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2160 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
53+ | 1.37 EUR |
57+ | 1.27 EUR |
76+ | 0.94 EUR |
81+ | 0.89 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details D2F-01FL3 OMRON Electronic Components
Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 1A/125VAC; 0.1A/30VDC; SPDT; ON-(ON), Type of switch: microswitch SNAP ACTION, AC contacts rating @R: 1A / 125V AC, DC contacts rating @R: 0.1A / 30V DC, Switches features: with lever with roller simulation, Contacts configuration: SPDT, Switching method: ON-(ON), Number of positions: 2, Manufacturer series: D2F, Stable positions number: 1, IP rating: IP40, Leads: for PCB; self-clinching, Body dimensions: 12.8x5.8x6mm, Mechanical durability: 1000000 cycles, Operating temperature: -25...85°C, Operating Force: 0.74N, Lever length: 10mm, Terminal pitch: 5.08mm, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote D2F-01FL3 nach Preis ab 0.89 EUR bis 4.26 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
D2F-01FL3 | Hersteller : OMRON Electronic Components |
![]() Description: Microswitch SNAP ACTION; 1A/125VAC; 0.1A/30VDC; SPDT; ON-(ON) Type of switch: microswitch SNAP ACTION AC contacts rating @R: 1A / 125V AC DC contacts rating @R: 0.1A / 30V DC Switches features: with lever with roller simulation Contacts configuration: SPDT Switching method: ON-(ON) Number of positions: 2 Manufacturer series: D2F Stable positions number: 1 IP rating: IP40 Leads: for PCB; self-clinching Body dimensions: 12.8x5.8x6mm Mechanical durability: 1000000 cycles Operating temperature: -25...85°C Operating Force: 0.74N Lever length: 10mm Terminal pitch: 5.08mm |
auf Bestellung 2160 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
D2F-01FL3 | Hersteller : Omron |
![]() |
auf Bestellung 1014 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
D2F-01FL3 | Hersteller : Omron |
![]() |
auf Bestellung 750 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
D2F-01FL3 | Hersteller : Omron Electronics |
![]() |
auf Bestellung 3750 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
D2F-01FL3 | Hersteller : OMRON ELECTRONIC COMPONENTS |
![]() tariffCode: 85365007 rohsCompliant: YES Schalteranschlüsse: PC-Pin Mikroschalter-Betätiger: Simulierter Rollenhebel hazardous: false rohsPhthalatesCompliant: YES Kontaktstrom, max.: 100mA usEccn: EAR99 AC-Kontaktspannung, nom.: - euEccn: NLR DC-Kontaktspannung, nom.: 30V Produktpalette: D2F productTraceability: No Betätigungskraft, max.: 75gf Kontaktkonfiguration: SPDT Mikroschaltertyp: Ultra-Subminiatur SVHC: To Be Advised |
auf Bestellung 1072 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
![]() +1 |
D2F-01FL3 Produktcode: 125749 |
Hersteller : Omron |
![]() Gruppe: Мікроперемикачі Ausg. oder SMD : THT Abmessungen: 12,8x5,8x6 mm Länge des Stabs: 10 mm Beschreibung: Мікроперемикач SNAP ACTION, з важелем з імітацією ролика, ресурс 1000000 циклів, крок виводів 5,08мм 2 0,1 A/30 VDC |
Produkt ist nicht verfügbar
|
|||||||||||||||||
![]() |
D2F01FL3 | Hersteller : Omron |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||||||
![]() |
D2F-01FL3 | Hersteller : Omron |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||||||
|
D2F-01FL3 | Hersteller : Omron Electronics Inc-EMC Div |
![]() Packaging: Tray Current Rating (Amps): 100mA (DC) Mounting Type: Through Hole Circuit: SPDT Switch Function: On-Mom Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Actuator Type: Lever, Simulated Roller Operating Force: 40gf Ingress Protection: IP40 Release Force: 2.039gf Differential Travel: 0.018" (0.45mm) Overtravel: 0.020" (0.5mm) Operating Position: 0.335" (8.5mm) Part Status: Active Voltage Rating - DC: 30 V |
