![CD4001UBPW CD4001UBPW](https://mm.digikey.com/Volume0/opasdata/d220001/medias/images/3936/296%7E4040064-3%7EPW%7E14.jpg)
CD4001UBPW Texas Instruments
![suppproductinfo.tsp?distId=10&gotoUrl=https%3A%2F%2Fwww.ti.com%2Flit%2Fgpn%2Fcd4001b](/images/adobe-acrobat.png)
Description: IC GATE NOR 4CH 2-INP 14TSSOP
Packaging: Bulk
Package / Case: 14-TSSOP (0.173", 4.40mm Width)
Mounting Type: Surface Mount
Logic Type: NOR Gate
Operating Temperature: -55°C ~ 125°C
Voltage - Supply: 3V ~ 18V
Current - Output High, Low: 3.4mA, 3.4mA
Number of Inputs: 2
Supplier Device Package: 14-TSSOP
Input Logic Level - High: 4V ~ 12.5V
Input Logic Level - Low: 1V ~ 2.5V
Max Propagation Delay @ V, Max CL: 50ns @ 15V, 50pF
Part Status: Active
Number of Circuits: 4
Current - Quiescent (Max): 1 µA
auf Bestellung 18540 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
529+ | 0.92 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details CD4001UBPW Texas Instruments
Description: IC GATE NOR 4CH 2-INP 14TSSOP, Packaging: Bulk, Package / Case: 14-TSSOP (0.173", 4.40mm Width), Mounting Type: Surface Mount, Logic Type: NOR Gate, Operating Temperature: -55°C ~ 125°C, Voltage - Supply: 3V ~ 18V, Current - Output High, Low: 3.4mA, 3.4mA, Number of Inputs: 2, Supplier Device Package: 14-TSSOP, Input Logic Level - High: 4V ~ 12.5V, Input Logic Level - Low: 1V ~ 2.5V, Max Propagation Delay @ V, Max CL: 50ns @ 15V, 50pF, Part Status: Active, Number of Circuits: 4, Current - Quiescent (Max): 1 µA.
Weitere Produktangebote CD4001UBPW nach Preis ab 0.74 EUR bis 2.13 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
CD4001UBPW | Hersteller : TEXAS INSTRUMENTS |

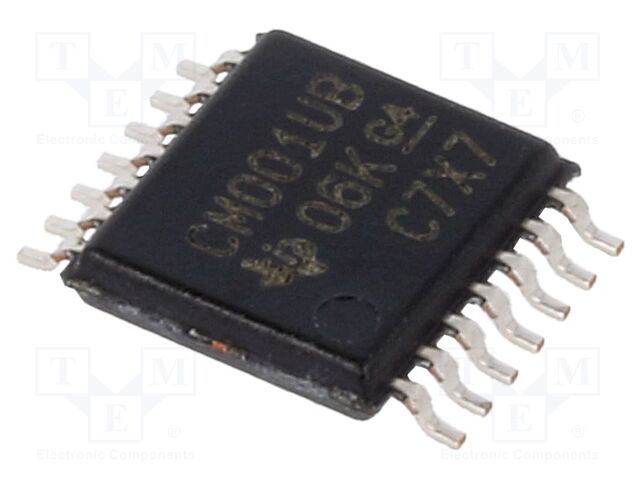

![]() Description: IC: digital; NOR; Ch: 4; IN: 2; CMOS; SMD; TSSOP14; 3÷18VDC; -55÷125°C Type of integrated circuit: digital Kind of gate: NOR Number of channels: quad; 4 Number of inputs: 2 Technology: CMOS Mounting: SMD Case: TSSOP14 Supply voltage: 3...18V DC Operating temperature: -55...125°C Kind of package: tube Family: CD4000 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 1080 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||||
![]() |
CD4001UBPW | Hersteller : TEXAS INSTRUMENTS |
![]() Description: IC: digital; NOR; Ch: 4; IN: 2; CMOS; SMD; TSSOP14; 3÷18VDC; -55÷125°C Type of integrated circuit: digital Kind of gate: NOR Number of channels: quad; 4 Number of inputs: 2 Technology: CMOS Mounting: SMD Case: TSSOP14 Supply voltage: 3...18V DC Operating temperature: -55...125°C Kind of package: tube Family: CD4000 |
auf Bestellung 1080 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
CD4001UBPW | Hersteller : Texas Instruments |
![]() Packaging: Tube Package / Case: 14-TSSOP (0.173", 4.40mm Width) Mounting Type: Surface Mount Logic Type: NOR Gate Operating Temperature: -55°C ~ 125°C Voltage - Supply: 3V ~ 18V Current - Output High, Low: 3.4mA, 3.4mA Number of Inputs: 2 Supplier Device Package: 14-TSSOP Input Logic Level - High: 4V ~ 12.5V Input Logic Level - Low: 1V ~ 2.5V Max Propagation Delay @ V, Max CL: 50ns @ 15V, 50pF Part Status: Active Number of Circuits: 4 Current - Quiescent (Max): 1 µA |
auf Bestellung 3284 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
