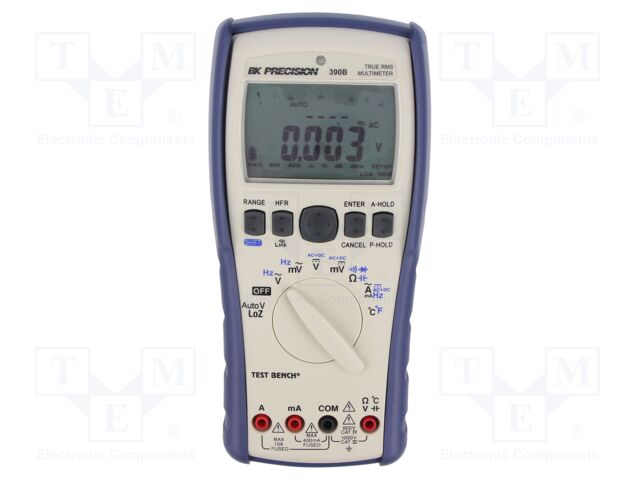

BK390B B&K PRECISION
Hersteller: B&K PRECISION
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth,USB; LCD; (40000); 10x/s
Interface: Bluetooth; USB
Operating temperature: -10...50°C
Battery/ rechargeable battery: battery AA 1,5V x4
Kind of display used: LCD
Dimensions (W x H x D): 95x207x52mm
Power supply: battery AA 1,5V x4
Illumination: yes
Standard equipment: adapter; case; K-type thermocouple; magnetic catch; test leads ( 2pcs.); USB cable
Measuring instrument features: AUTO HOLD; automatic AC/DC voltage selection (AutoV/LoZ); automatic power-off; low battery indicator; MIN/MAX/AVG/REL function; PEAK HOLD function
Type of meter: digital multimeter
Continuity test: acoustic indication; <400Ω
Sampling: 10x/s
Temperature measuring range: -200...1200°C
True effective value measurement: True RMS AC; True RMS AC+DC
Bargraph: yes
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
AC current measuring range: 40mA; 400mA; 4A; 10A
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
DC current measuring range: 40mA; 400mA; 4A; 10A
DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
Frequency measuring range: 400Hz; 4kHz; 40kHz; 100kHz
Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF
Diode test: 2V
Software: available on AppStore; available on Google Play
Display parameters: (40000)
Capacitance measuring accuracy: ±(0.9%+ 2 digit)
AC current measuring accuracy: ±(0.8% + 10 digit)
DC voltage measuring accuracy: ±(0.03% + 1 digit)
DC current measuring accuracy: ±(0.2% + 1 digit)
AC voltage measuring accuracy: ±(0.5% + 2 digit)
Resistance measuring accuracy: ±(0.2%+1 digit)
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth,USB; LCD; (40000); 10x/s
Interface: Bluetooth; USB
Operating temperature: -10...50°C
Battery/ rechargeable battery: battery AA 1,5V x4
Kind of display used: LCD
Dimensions (W x H x D): 95x207x52mm
Power supply: battery AA 1,5V x4
Illumination: yes
Standard equipment: adapter; case; K-type thermocouple; magnetic catch; test leads ( 2pcs.); USB cable
Measuring instrument features: AUTO HOLD; automatic AC/DC voltage selection (AutoV/LoZ); automatic power-off; low battery indicator; MIN/MAX/AVG/REL function; PEAK HOLD function
Type of meter: digital multimeter
Continuity test: acoustic indication; <400Ω
Sampling: 10x/s
Temperature measuring range: -200...1200°C
True effective value measurement: True RMS AC; True RMS AC+DC
Bargraph: yes
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
AC current measuring range: 40mA; 400mA; 4A; 10A
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
DC current measuring range: 40mA; 400mA; 4A; 10A
DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
Frequency measuring range: 400Hz; 4kHz; 40kHz; 100kHz
Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF
Diode test: 2V
Software: available on AppStore; available on Google Play
Display parameters: (40000)
Capacitance measuring accuracy: ±(0.9%+ 2 digit)
AC current measuring accuracy: ±(0.8% + 10 digit)
DC voltage measuring accuracy: ±(0.03% + 1 digit)
DC current measuring accuracy: ±(0.2% + 1 digit)
AC voltage measuring accuracy: ±(0.5% + 2 digit)
Resistance measuring accuracy: ±(0.2%+1 digit)
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 648.19 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BK390B B&K PRECISION
Description: B&K PRECISION - BK390B - DMM, TRAGBAR, 10A, 1KV, 40000 ZÄHLWERTE, tariffCode: 90303100, Messwert Gleichspannung, max.: 1kV, Messwert Wechselspannung, max.: 1kV, Messwert Widerstand, max.: 40Mohm, Messwert Gleichstrom, max.: 10A, rohsCompliant: YES, hazardous: false, rohsPhthalatesCompliant: TBA, usEccn: 3A992.a, Schritte: 40000, Herstellergewährleistung: 3 Jahre, euEccn: NLR, Anzahl der Stellen: 4.75, DMM-Messverfahren: Echteffektivwert, DMM-Funktionen: AC/DC-Strom, AC/DC-Spannung, Kapazität, Durchgang, Diode, Frequenz, Widerstand, Temperatur, Produktpalette: -, productTraceability: No, Messwert Wechselstrom, max.: 10A, Bereichswahl: Automatisch, manuell, SVHC: No SVHC (14-Jun-2023).
