![B3F-1056 B3F-1056](https://ce8dc832c.cloudimg.io/v7/_cdn_/D8/DC/50/00/0/380301_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=6602fa1e66eacae305ffef2068b45961438e2493)

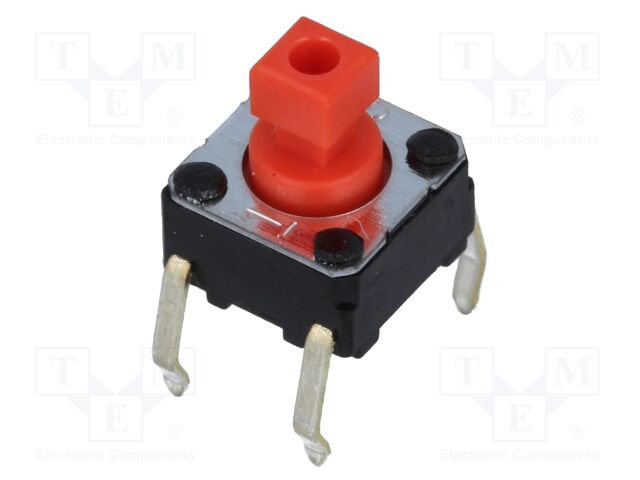

B3F-1056 OMRON Electronic Components
![B3F.PDF](/images/adobe-acrobat.png)
Category: Microswitches TACT
Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 4.9N
Type of switch: microswitch TACT
Contacts configuration: SPST-NO
Number of positions: 2
DC contacts rating @R: 50mA / 24V DC
Mounting: THT
Illumination: none
Operating Force: 4.9N
Body dimensions: 6x6mm
Button height: 7.3mm
Switching method: OFF-(ON)
Terminal pitch: 4.5x6.5mm
Manufacturer series: B3F
Operating temperature: -25...70°C
Button shape: square
Actuator colour: red
Key stroke: 0.25mm
Leads: for PCB; straight
Contact material: phosphor bronze
Max. contact resistance:: 100mΩ
Min. insulation resistance: 0.1GΩ
Contact plating: silver plated
Mechanical durability: 50000 cycles
Related items: B32-1000; B32-1010; B32-1030; B32-1060; B32-1080
Stable positions number: 1
Anzahl je Verpackung: 1 Stücke
auf Bestellung 75 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
75+ | 0.96 EUR |
78+ | 0.92 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details B3F-1056 OMRON Electronic Components
Category: Microswitches TACT, Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 4.9N, Type of switch: microswitch TACT, Contacts configuration: SPST-NO, Number of positions: 2, DC contacts rating @R: 50mA / 24V DC, Mounting: THT, Illumination: none, Operating Force: 4.9N, Body dimensions: 6x6mm, Button height: 7.3mm, Switching method: OFF-(ON), Terminal pitch: 4.5x6.5mm, Manufacturer series: B3F, Operating temperature: -25...70°C, Button shape: square, Actuator colour: red, Key stroke: 0.25mm, Leads: for PCB; straight, Contact material: phosphor bronze, Max. contact resistance:: 100mΩ, Min. insulation resistance: 0.1GΩ, Contact plating: silver plated, Mechanical durability: 50000 cycles, Related items: B32-1000; B32-1010; B32-1030; B32-1060; B32-1080, Stable positions number: 1, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote B3F-1056 nach Preis ab 0.67 EUR bis 1.48 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
B3F-1056 | Hersteller : OMRON Electronic Components |
![]() Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 4.9N Type of switch: microswitch TACT Contacts configuration: SPST-NO Number of positions: 2 DC contacts rating @R: 50mA / 24V DC Mounting: THT Illumination: none Operating Force: 4.9N Body dimensions: 6x6mm Button height: 7.3mm Switching method: OFF-(ON) Terminal pitch: 4.5x6.5mm Manufacturer series: B3F Operating temperature: -25...70°C Button shape: square Actuator colour: red Key stroke: 0.25mm Leads: for PCB; straight Contact material: phosphor bronze Max. contact resistance:: 100mΩ Min. insulation resistance: 0.1GΩ Contact plating: silver plated Mechanical durability: 50000 cycles Related items: B32-1000; B32-1010; B32-1030; B32-1060; B32-1080 Stable positions number: 1 |
auf Bestellung 75 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
B3F-1056 | Hersteller : Omron Electronics |
![]() |
auf Bestellung 4504 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
|
B3F-1056 | Hersteller : Omron Electronics Inc-EMC Div |
![]() Packaging: Bulk Mounting Type: Through Hole Circuit: SPST-NO Switch Function: Off-Mom Operating Temperature: -25°C ~ 70°C Termination Style: PC Pin Illumination: Non-Illuminated Contact Rating @ Voltage: 0.05A @ 24VDC Actuator Type: Plunger for Cap Operating Force: 500gf Outline: 6.00mm x 6.00mm Actuator Height off PCB, Vertical: 7.30mm Actuator Orientation: Top Actuated Part Status: Active |
auf Bestellung 1232 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
B3F1056 | Hersteller : Omron |
![]() |
Produkt ist nicht verfügbar |
