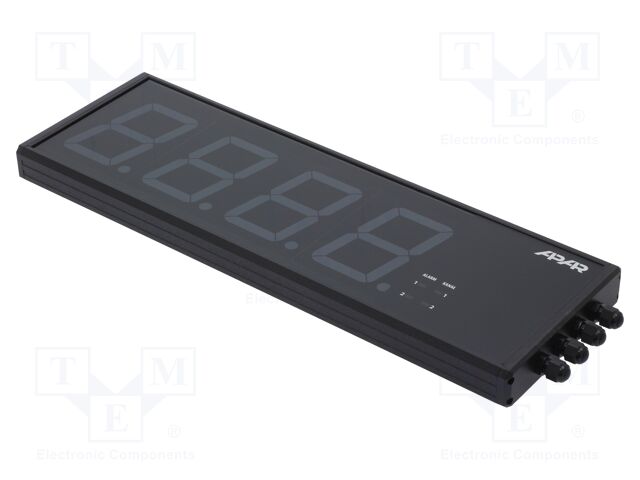

AR753/S2/P/P/RS485/WA APAR

Category: Temperature Regulators, Description: Module: regulator; pressure,speed,temperature,humidity; SPST-NO, Interface: RS485, Supply voltage: 24V AC; 24V DC, Mounting: for wall mounting, Operating temperature: 0...50°C, Manufacturer series: AR753, Body dimensions: 500x166x35mm, IP rating: IP51, Controlled parameter: humidity; pressure; speed; temperature, Controlled parameter range: -1999...9999, The programming method: keypad; RS485, Additional functions: display brightness adjustment; error messages on the LED display; LED status indicator; locked by password; temperature compensation of thermocouple cold ends, Kind of output 2: SPST-NO, Kind of output 1: SPST-NO, Kind of input 1: 0...10V; 0...60mV; 0...2500Ω; 0/4...20mA, Kind of display used: LED, Output 2 electrical parameters: 250V AC / 5A, Output 1 electrical parameters: 250V AC / 5A, Input 1 properties: analogue voltage; current analog; RTD; thermocouple, Display parameters: 4-digit, Display height 1: 100mm, Kind of temperature sensor: Ni100; Pt50; Pt100; Pt1000; thermocouple B; thermocouple E; thermocouple J; thermocouple K; thermocouple N; thermocouple R; thermocouple S; thermocouple T, Kind of output 3: 0/4...20mA, Type of module: regulator, Anzahl je Verpackung: 1 Stücke.
