![AOE6932 AOE6932](https://ce8dc832c.cloudimg.io/v7/_cdn_/14/A6/B0/00/0/748097_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=3bbde3ae364dff5cfbe9d236153723930f1d15ca)

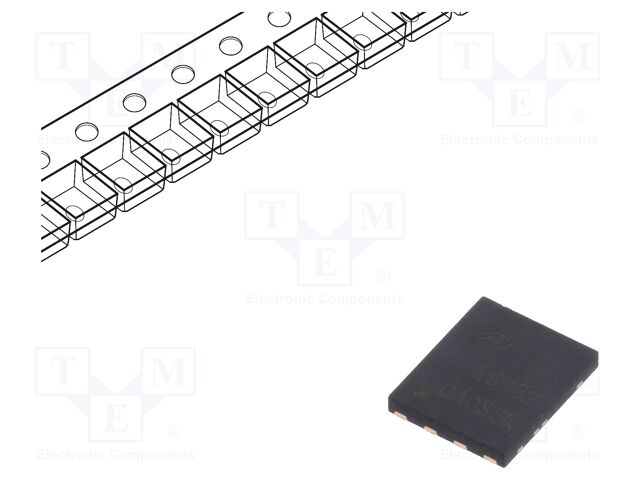

AOE6932 ALPHA & OMEGA SEMICONDUCTOR
![AOE6932.pdf](/images/adobe-acrobat.png)
Category: Multi channel transistors
Description: Transistor: N-MOSFET x2; unipolar; 30V; 55/85A; 9.6/20W; DFN5x6
Type of transistor: N-MOSFET x2
Polarisation: unipolar
Drain-source voltage: 30V
Drain current: 55/85A
Power dissipation: 9.6/20W
Case: DFN5x6
Gate-source voltage: ±12V; ±20V
On-state resistance: 5/1.4mΩ
Mounting: SMD
Gate charge: 30nC
Kind of channel: enhanced
Semiconductor structure: asymmetric
auf Bestellung 2649 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
40+ | 1.79 EUR |
45+ | 1.62 EUR |
50+ | 1.44 EUR |
58+ | 1.24 EUR |
61+ | 1.17 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details AOE6932 ALPHA & OMEGA SEMICONDUCTOR
Description: MOSFET 2N-CH 30V 55A/85A 8DFN, Packaging: Tape & Reel (TR), Package / Case: 8-VDFN Exposed Pad, Mounting Type: Surface Mount, Configuration: 2 N-Channel (Dual) Asymmetrical, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), Power - Max: 24W, 52W, Drain to Source Voltage (Vdss): 30V, Current - Continuous Drain (Id) @ 25°C: 55A (Tc), 85A (Tc), Input Capacitance (Ciss) (Max) @ Vds: 1150pF @ 15V, 4180pF @ 15V, Rds On (Max) @ Id, Vgs: 5mOhm @ 20A, 10V, 1.4mOhm @ 20A, 10V, Gate Charge (Qg) (Max) @ Vgs: 15nC @ 4.5V, 50nC @ 4.5V, Vgs(th) (Max) @ Id: 2.2V @ 250µA, 1.9V @ 250µA, Supplier Device Package: 8-DFN (5x6).
Weitere Produktangebote AOE6932 nach Preis ab 1.17 EUR bis 2.6 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
AOE6932 | Hersteller : ALPHA & OMEGA SEMICONDUCTOR |
![]() Description: Transistor: N-MOSFET x2; unipolar; 30V; 55/85A; 9.6/20W; DFN5x6 Type of transistor: N-MOSFET x2 Polarisation: unipolar Drain-source voltage: 30V Drain current: 55/85A Power dissipation: 9.6/20W Case: DFN5x6 Gate-source voltage: ±12V; ±20V On-state resistance: 5/1.4mΩ Mounting: SMD Gate charge: 30nC Kind of channel: enhanced Semiconductor structure: asymmetric Anzahl je Verpackung: 1 Stücke |
auf Bestellung 2649 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||
![]() |
AOE6932 | Hersteller : Alpha & Omega Semiconductor Inc. |
![]() Packaging: Cut Tape (CT) Package / Case: 8-VDFN Exposed Pad Mounting Type: Surface Mount Configuration: 2 N-Channel (Dual) Asymmetrical Operating Temperature: -55°C ~ 150°C (TJ) Technology: MOSFET (Metal Oxide) Power - Max: 24W, 52W Drain to Source Voltage (Vdss): 30V Current - Continuous Drain (Id) @ 25°C: 55A (Tc), 85A (Tc) Input Capacitance (Ciss) (Max) @ Vds: 1150pF @ 15V, 4180pF @ 15V Rds On (Max) @ Id, Vgs: 5mOhm @ 20A, 10V, 1.4mOhm @ 20A, 10V Gate Charge (Qg) (Max) @ Vgs: 15nC @ 4.5V, 50nC @ 4.5V Vgs(th) (Max) @ Id: 2.2V @ 250µA, 1.9V @ 250µA Supplier Device Package: 8-DFN (5x6) |
auf Bestellung 2922 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
AOE6932 Produktcode: 182233 |
![]() |
Produkt ist nicht verfügbar
|
|||||||||||||||
![]() |
AOE6932 | Hersteller : Alpha & Omega Semiconductor |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||
![]() |
AOE6932 | Hersteller : Alpha & Omega Semiconductor |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||
![]() |
AOE6932 | Hersteller : Alpha & Omega Semiconductor Inc. |
![]() Packaging: Tape & Reel (TR) Package / Case: 8-VDFN Exposed Pad Mounting Type: Surface Mount Configuration: 2 N-Channel (Dual) Asymmetrical Operating Temperature: -55°C ~ 150°C (TJ) Technology: MOSFET (Metal Oxide) Power - Max: 24W, 52W Drain to Source Voltage (Vdss): 30V Current - Continuous Drain (Id) @ 25°C: 55A (Tc), 85A (Tc) Input Capacitance (Ciss) (Max) @ Vds: 1150pF @ 15V, 4180pF @ 15V Rds On (Max) @ Id, Vgs: 5mOhm @ 20A, 10V, 1.4mOhm @ 20A, 10V Gate Charge (Qg) (Max) @ Vgs: 15nC @ 4.5V, 50nC @ 4.5V Vgs(th) (Max) @ Id: 2.2V @ 250µA, 1.9V @ 250µA Supplier Device Package: 8-DFN (5x6) |
Produkt ist nicht verfügbar |
