![7760056075 7760056075](https://mm.digikey.com/Volume0/opasdata/d220001/medias/images/2773/MFG_77600561049999.jpg)

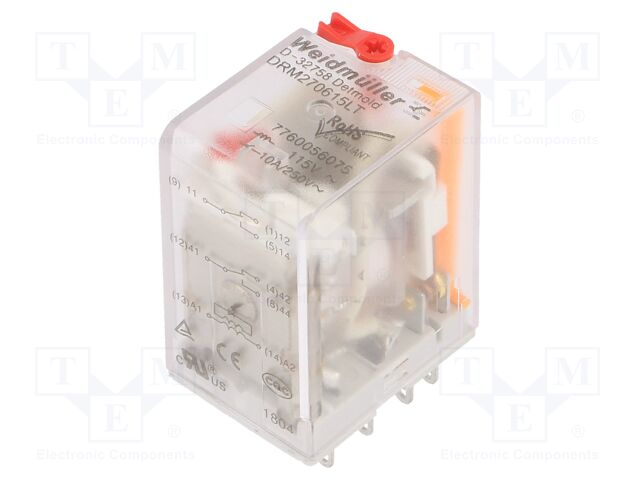

7760056075 Weidmüller
![DRM_Aux_Relay_DS.pdf](/images/adobe-acrobat.png)
Description: RELAY GEN PURPOSE DPDT 10A 115V
Features: Lighted Indicator, Test Button
Packaging: Bulk
Mounting Type: Socketable
Coil Voltage: 115VAC
Operating Temperature: -40°C ~ 55°C
Termination Style: Plug In
Relay Type: General Purpose
Coil Current: 10.8 mA
Coil Type: Non Latching
Contact Material: Silver Alloy
Contact Form: DPDT (2 Form C)
Contact Rating (Current): 10 A
Switching Voltage: 250VAC - Max
Must Release Voltage: 34.5 VAC
Must Operate Voltage: 92 VAC
Operate Time: 20 ms
Release Time: 20 ms
auf Bestellung 976 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 27.65 EUR |
10+ | 25.91 EUR |
25+ | 23.03 EUR |
50+ | 21.88 EUR |
100+ | 20.73 EUR |
250+ | 18.42 EUR |
500+ | 17.27 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 7760056075 Weidmüller
Category: Industrial Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 115VAC; Icontacts max: 10A, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 115V AC, Contact current max.: 10A, AC contacts rating @R: 10A / 250V AC, DC contacts rating @R: 10A / 24V DC, Switched voltage: max. 200V DC; max. 250V AC, Relay variant: industrial, Mounting: socket, Relay series: DRM-2C, Operating temperature: -40...60°C, Body dimensions: 21.5x28x36mm, Contact resistance: 50mΩ, Coil power consumption: 1VA, Leads: connectors 2,5x0,5mm, IP rating: IP20.
Weitere Produktangebote 7760056075
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
7760056075 | Hersteller : WEIDMЬLLER |
![]() |
Produkt ist nicht verfügbar |
||
![]() |
7760056075 | Hersteller : WEIDMÜLLER |
![]() Description: Relay: electromagnetic; DPDT; Ucoil: 115VAC; Icontacts max: 10A Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 115V AC Contact current max.: 10A AC contacts rating @R: 10A / 250V AC DC contacts rating @R: 10A / 24V DC Switched voltage: max. 200V DC; max. 250V AC Relay variant: industrial Mounting: socket Relay series: DRM-2C Operating temperature: -40...60°C Body dimensions: 21.5x28x36mm Contact resistance: 50mΩ Coil power consumption: 1VA Leads: connectors 2,5x0,5mm IP rating: IP20 |
Produkt ist nicht verfügbar |
