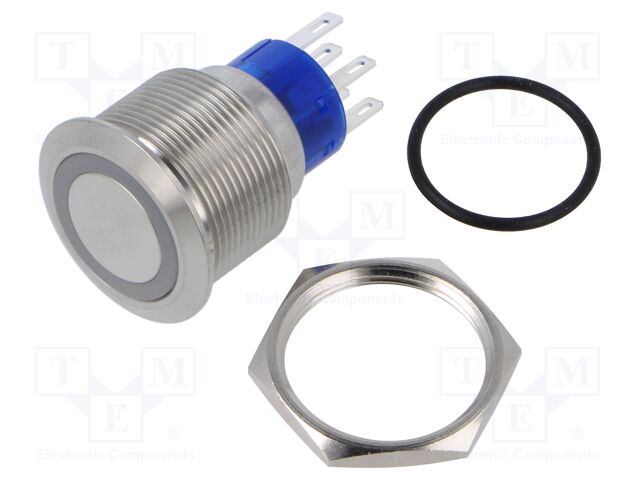

5-2213772-5 TE Connectivity
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-(ON)
Mounting: on panel
Operating temperature: -20...55°C
Flammability rating: UL94V-0
Manufacturer series: AV
Body colour: silver
Type of switch: vandal resistant
Contacts configuration: DPST
AC contacts rating @R: 3A / 250V AC
Switching method: OFF-(ON)
Stable positions number: 1
Operating Force: 3.5N
Illumination: LED; ring
Illumination voltage: 24V DC
Actuator colour: silver
Backlight colour: green
Key stroke: 3.2mm
Button shape: round
Number of positions: 2
Contact plating: silver plated
Mechanical durability: 1000000 cycles
Max. contact resistance:: 50mΩ
Min. insulation resistance: 1GΩ
IP rating: IP67
Mounting hole diameter: Ø22mm
Leads: connectors 2,8x0,5mm
Electrical life: 50000 cycles
Contact material: copper
Anzahl je Verpackung: 1 Stücke
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-(ON)
Mounting: on panel
Operating temperature: -20...55°C
Flammability rating: UL94V-0
Manufacturer series: AV
Body colour: silver
Type of switch: vandal resistant
Contacts configuration: DPST
AC contacts rating @R: 3A / 250V AC
Switching method: OFF-(ON)
Stable positions number: 1
Operating Force: 3.5N
Illumination: LED; ring
Illumination voltage: 24V DC
Actuator colour: silver
Backlight colour: green
Key stroke: 3.2mm
Button shape: round
Number of positions: 2
Contact plating: silver plated
Mechanical durability: 1000000 cycles
Max. contact resistance:: 50mΩ
Min. insulation resistance: 1GΩ
IP rating: IP67
Mounting hole diameter: Ø22mm
Leads: connectors 2,8x0,5mm
Electrical life: 50000 cycles
Contact material: copper
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 2+ | 35.75 EUR |
| 4+ | 25.81 EUR |
