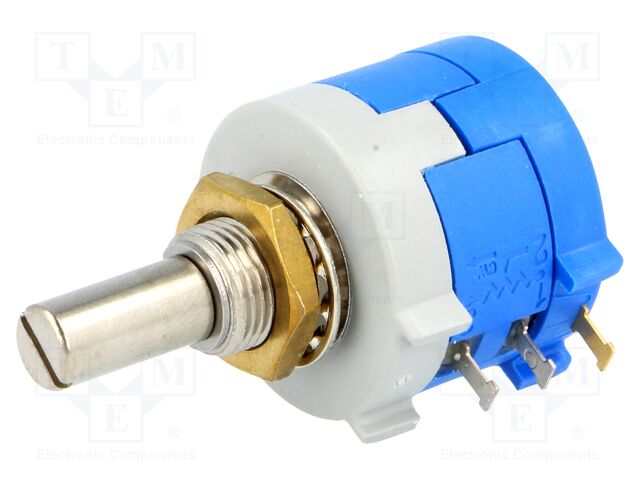

![3590S-6-103L 3590S-6-103L](https://ce8dc832c.cloudimg.io/v7/_cdn_/2D/A4/60/00/0/412370_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=d0b77774526d434ca20ae68e70a49a153e583995)
3590S-6-103L BOURNS
![3590S-2-103-Bourns-datasheet-9539.pdf](/images/adobe-acrobat.png)
Category: Wire multiturn potentiometers
Description: Potentiometer: shaft; multiturn; 10kΩ; 2W; ±5%; 6mm; linear; IP40
Temperature coefficient: 50ppm/°C
IP rating: IP40
Shaft diameter: 6mm
Type of potentiometer: shaft
Number of electrical turns: 10
Shaft length: 12.6mm
Characteristics: linear
Potentiometer features: precise
Linearity tolerance: ±0.25%
Shaft material: metal
Shaft surface: smooth
Thread length: 8mm
Track material: wirewound
Kind of potentiometer: multiturn
L shaft length: 20.6mm
Min. insulation resistance: 1GΩ
Operating temperature: -40...125°C
Power: 2W
Resistance: 10kΩ
Tolerance: ±5%
Body dimensions: Ø22.22x18.6mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 93 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
4+ | 18.39 EUR |
20+ | 18.2 EUR |
50+ | 17.93 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3590S-6-103L BOURNS
Description: BOURNS - 3590S-6-103L - Drehpotentiometer, drahtgewickelt, 10 kohm, 10 Umdrehung(en), Linear, 2 W, ± 5%, 3590 Series, tariffCode: 85334010, Produkthöhe: -, rohsCompliant: Y-EX, Bauform/Gehäuse des Widerstands: -, Anzahl der Umdrehungen: 10Turns, Widerstandstechnologie: Drahtwiderstand, hazardous: false, rohsPhthalatesCompliant: YES, Potentiometermontage: Panelmontage, Nennleistung: 2W, Einstellungsart: Schraubendreherschlitz, Bahnwiderstand: 10kohm, Widerstandsverlauf: Linear, usEccn: EAR99, Anzahl der Einbaustellen: 1, Wellendurchmesser: 6mm, Betriebstemperatur, min.: -40°C, Widerstandstoleranz: 5%, Temperaturkoeffizient: 50ppm/C, Produktlänge: 39.22mm, euEccn: NLR, Potentiometer: Präzision, Länge der Welle: 20.63mm, Produktpalette: 3590 Series, productTraceability: No, Potentiometeranschlüsse: Lötfahne, Betriebstemperatur, max.: 125°C, Produktbreite: -, SVHC: Lead (23-Jan-2024).
Weitere Produktangebote 3590S-6-103L nach Preis ab 17.93 EUR bis 36.84 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
3590S-6-103L | Hersteller : BOURNS |
![]() Description: Potentiometer: shaft; multiturn; 10kΩ; 2W; ±5%; 6mm; linear; IP40 Temperature coefficient: 50ppm/°C IP rating: IP40 Shaft diameter: 6mm Type of potentiometer: shaft Number of electrical turns: 10 Shaft length: 12.6mm Characteristics: linear Potentiometer features: precise Linearity tolerance: ±0.25% Shaft material: metal Shaft surface: smooth Thread length: 8mm Track material: wirewound Kind of potentiometer: multiturn L shaft length: 20.6mm Min. insulation resistance: 1GΩ Operating temperature: -40...125°C Power: 2W Resistance: 10kΩ Tolerance: ±5% Body dimensions: Ø22.22x18.6mm |
auf Bestellung 93 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
3590S-6-103L | Hersteller : Bourns |
![]() |
auf Bestellung 200 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
3590S-6-103L | Hersteller : Bourns |
![]() |
auf Bestellung 107 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
3590S-6-103L | Hersteller : Bourns |
![]() |
auf Bestellung 105 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
3590S-6-103L | Hersteller : Bourns Inc. |
![]() Packaging: Bulk Resistance (Ohms): 10k Power (Watts): 2W Tolerance: ±5% Temperature Coefficient: ±50ppm/°C Adjustment Type: User Defined Mounting Type: Panel Mount Termination Style: Solder Lug Bushing Thread: M9 x 0.375 Actuator Length: 0.812" (20.63mm) Actuator Type: Slotted Built in Switch: None Actuator Diameter: 0.236" (6.00mm) Resistive Material: Wirewound Taper: Linear Rotation: 3600° Number of Gangs: 1 Part Status: Active Number of Turns: 10.0 |
auf Bestellung 84 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
3590S-6-103L | Hersteller : BOURNS |
![]() tariffCode: 85334010 Produkthöhe: - rohsCompliant: Y-EX Bauform/Gehäuse des Widerstands: - Anzahl der Umdrehungen: 10Turns Widerstandstechnologie: Drahtwiderstand hazardous: false rohsPhthalatesCompliant: YES Potentiometermontage: Panelmontage Nennleistung: 2W Einstellungsart: Schraubendreherschlitz Bahnwiderstand: 10kohm Widerstandsverlauf: Linear usEccn: EAR99 Anzahl der Einbaustellen: 1 Wellendurchmesser: 6mm Betriebstemperatur, min.: -40°C Widerstandstoleranz: 5% Temperaturkoeffizient: 50ppm/C Produktlänge: 39.22mm euEccn: NLR Potentiometer: Präzision Länge der Welle: 20.63mm Produktpalette: 3590 Series productTraceability: No Potentiometeranschlüsse: Lötfahne Betriebstemperatur, max.: 125°C Produktbreite: - SVHC: Lead (23-Jan-2024) |
auf Bestellung 56 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
![]() |
3590S-6-103L | Hersteller : Bourns |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||||||
![]() |
3590S-6-103L | Hersteller : Bourns |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||||||
![]() |
3590S-6-103L | Hersteller : Bourns |
![]() |
Produkt ist nicht verfügbar |
