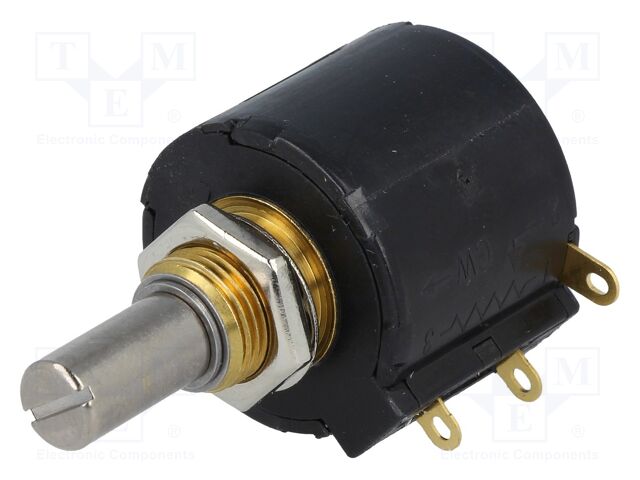

![3549S-1AA-103B 3549S-1AA-103B](https://ce8dc832c.cloudimg.io/v7/_cdn_/83/4C/50/00/0/377912_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=adeedf86b7fc084bac7483b2aaae6ccbbae097db)
3549S-1AA-103B BOURNS
![BOURNS_3549.pdf](/images/adobe-acrobat.png)
Category: Wire multiturn potentiometers
Description: Potentiometer: shaft; multiturn; 10kΩ; 2W; ±3%; 6.35mm; linear; IP50
Type of potentiometer: shaft
Resistance: 10kΩ
Power: 2W
Tolerance: ±3%
Characteristics: linear
Body dimensions: Ø22.5x19.8mm
Potentiometer features: precise
Track material: wirewound
Linearity tolerance: ±0.1%
Shaft material: metal
Shaft surface: smooth
Thread length: 7.92mm
Kind of potentiometer: multiturn
L shaft length: 20.62mm
Mechanical durability: 2000000 cycles
Min. insulation resistance: 1GΩ
Operating temperature: -40...125°C
Temperature coefficient: 50ppm/°C
IP rating: IP50
Shaft diameter: 6.35mm
Number of electrical turns: 10
Shaft length: 12.7mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 30 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
3+ | 25.81 EUR |
10+ | 25.14 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3549S-1AA-103B BOURNS
Description: BOURNS - 3549S-1AA-103B - POT, LINEAR, 10K, 2W, 3%, SLOTTED, tariffCode: 85334010, Produkthöhe: -, rohsCompliant: Y-EX, Bauform/Gehäuse des Widerstands: -, Anzahl der Umdrehungen: 10Turns, Widerstandstechnologie: Wirewound, hazardous: false, rohsPhthalatesCompliant: YES, Potentiometermontage: Bushing Mount, Nennleistung: 2W, Einstellungsart: Screwdriver Slot, Bahnwiderstand: 10kohm, Widerstandsverlauf: Linear, usEccn: EAR99, Anzahl der Einbaustellen: 1, Wellendurchmesser: 6.35mm, Netzsteckertyp: 0, Betriebstemperatur, min.: -40°C, Widerstandstoleranz: 3%, Temperaturkoeffizient: 50ppm/C, Produktlänge: 0, euEccn: NLR, Potentiometer: Precision, Länge der Welle: 20.617mm, Produktpalette: 3549 Series, productTraceability: Yes-Date/Lot Code, Potentiometeranschlüsse: Solder Lug, Betriebstemperatur, max.: 125°C, Produktbreite: -, directShipCharge: 25, SVHC: Lead.
Weitere Produktangebote 3549S-1AA-103B nach Preis ab 25.14 EUR bis 51.36 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
3549S-1AA-103B | Hersteller : BOURNS |
![]() Description: Potentiometer: shaft; multiturn; 10kΩ; 2W; ±3%; 6.35mm; linear; IP50 Type of potentiometer: shaft Resistance: 10kΩ Power: 2W Tolerance: ±3% Characteristics: linear Body dimensions: Ø22.5x19.8mm Potentiometer features: precise Track material: wirewound Linearity tolerance: ±0.1% Shaft material: metal Shaft surface: smooth Thread length: 7.92mm Kind of potentiometer: multiturn L shaft length: 20.62mm Mechanical durability: 2000000 cycles Min. insulation resistance: 1GΩ Operating temperature: -40...125°C Temperature coefficient: 50ppm/°C IP rating: IP50 Shaft diameter: 6.35mm Number of electrical turns: 10 Shaft length: 12.7mm |
auf Bestellung 30 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
3549S-1AA-103B | Hersteller : Bourns |
![]() |
auf Bestellung 84 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
3549S-1AA-103B | Hersteller : Bourns Inc. |
![]() Resistance (Ohms): 10k Power (Watts): 2W Tolerance: ±3% Packaging: Tray Temperature Coefficient: ±50ppm/°C Adjustment Type: User Defined Mounting Type: Panel Mount Termination Style: Solder Lug Bushing Thread: 3/8-32 Actuator Length: 0.813" (20.64mm) Actuator Type: Slotted Built in Switch: None Actuator Diameter: 0.250" (6.35mm) Resistive Material: Wirewound Taper: Linear Rotation: 3600° Number of Gangs: 1 Part Status: Active Number of Turns: 10 |
auf Bestellung 64 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
3549S-1AA-103B | Hersteller : BOURNS |
![]() tariffCode: 85334010 Produkthöhe: - rohsCompliant: Y-EX Bauform/Gehäuse des Widerstands: - Anzahl der Umdrehungen: 10Turns Widerstandstechnologie: Wirewound hazardous: false rohsPhthalatesCompliant: YES Potentiometermontage: Bushing Mount Nennleistung: 2W Einstellungsart: Screwdriver Slot Bahnwiderstand: 10kohm Widerstandsverlauf: Linear usEccn: EAR99 Anzahl der Einbaustellen: 1 Wellendurchmesser: 6.35mm Netzsteckertyp: 0 Betriebstemperatur, min.: -40°C Widerstandstoleranz: 3% Temperaturkoeffizient: 50ppm/C Produktlänge: 0 euEccn: NLR Potentiometer: Precision Länge der Welle: 20.617mm Produktpalette: 3549 Series productTraceability: Yes-Date/Lot Code Potentiometeranschlüsse: Solder Lug Betriebstemperatur, max.: 125°C Produktbreite: - directShipCharge: 25 SVHC: Lead |
auf Bestellung 58 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
![]() |
3549S-1AA-103B | Hersteller : Bourns |
![]() |
Produkt ist nicht verfügbar |
