3413-0-00-34-00-00-03-0 Mill-Max Manufacturing Corp.

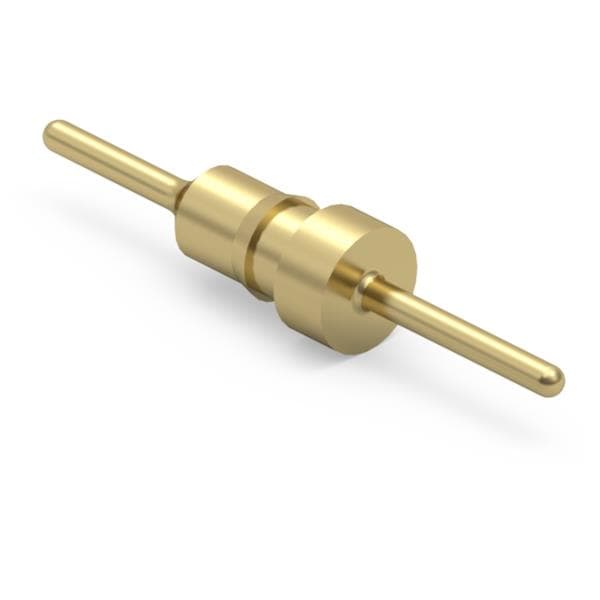

Description: CONN PC PIN CIRC .018DIA GOLD, Packaging: Bulk, Contact Finish: Gold, Mounting Type: Through Hole, Insulation: Non-Insulated, Terminal Type: PC Pin, Flange Diameter: 0.072" (1.83mm), Length - Overall: 0.381" (9.68mm), Termination: Press-Fit, Mounting Hole Diameter: 0.057" (1.45mm), Contact Finish Thickness: 50.0µin (1.27µm), Contact Material: Brass Alloy, Terminal Style: Double End, Pin Size - Above Flange: 0.018" (0.46mm) Dia, Pin Size - Below Flange: 0.018" (0.46mm) Dia, Length - Below Flange: 0.204" (5.18mm), Length - Above Flange: 0.142" (3.61mm).
