![2N3772 2N3772](https://ce8dc832c.cloudimg.io/v7/_cdn_/3A/8E/00/00/0/59555_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=076dc5f926cfab30d8eb264f597e24572582d4b4)
2N3772 CDIL
![2N3771_2.pdf](/images/adobe-acrobat.png)
Category: NPN THT transistors
Description: Transistor: NPN; bipolar; 60V; 20A; 150W; TO3
Type of transistor: NPN
Polarisation: bipolar
Collector-emitter voltage: 60V
Collector current: 20A
Power dissipation: 150W
Case: TO3
Current gain: 5...60
Mounting: THT
Kind of package: bulk
Frequency: 200kHz
auf Bestellung 366 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
31+ | 2.32 EUR |
35+ | 2.09 EUR |
44+ | 1.66 EUR |
46+ | 1.57 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 2N3772 CDIL
Description: MULTICOMP PRO - 2N3772 - Bipolarer Einzeltransistor (BJT), NPN, 60 V, 20 A, 150 W, TO-3, Durchsteckmontage, tariffCode: 85412900, Transistormontage: Durchsteckmontage, rohsCompliant: YES, DC-Stromverstärkung (hFE), min.: 5hFE, hazardous: false, rohsPhthalatesCompliant: YES, Qualifikation: -, Dauer-Kollektorstrom: 20A, usEccn: EAR99, euEccn: NLR, Verlustleistung: 150W, Bauform - Transistor: TO-3, Anzahl der Pins: 2Pin(s), Produktpalette: -, Kollektor-Emitter-Spannung, max.: 60V, productTraceability: No, Wandlerpolarität: NPN, Übergangsfrequenz: 200kHz, Betriebstemperatur, max.: 200°C, SVHC: No SVHC (23-Jan-2024).
Weitere Produktangebote 2N3772 nach Preis ab 1.57 EUR bis 2.32 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
2N3772 | Hersteller : CDIL |
![]() Description: Transistor: NPN; bipolar; 60V; 20A; 150W; TO3 Type of transistor: NPN Polarisation: bipolar Collector-emitter voltage: 60V Collector current: 20A Power dissipation: 150W Case: TO3 Current gain: 5...60 Mounting: THT Kind of package: bulk Frequency: 200kHz Anzahl je Verpackung: 1 Stücke |
auf Bestellung 366 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
![]() |
2N3772 | Hersteller : MULTICOMP PRO |
![]() tariffCode: 85412900 Transistormontage: Durchsteckmontage rohsCompliant: YES DC-Stromverstärkung (hFE), min.: 5hFE hazardous: false rohsPhthalatesCompliant: YES Qualifikation: - Dauer-Kollektorstrom: 20A usEccn: EAR99 euEccn: NLR Verlustleistung: 150W Bauform - Transistor: TO-3 Anzahl der Pins: 2Pin(s) Produktpalette: - Kollektor-Emitter-Spannung, max.: 60V productTraceability: No Wandlerpolarität: NPN Übergangsfrequenz: 200kHz Betriebstemperatur, max.: 200°C SVHC: No SVHC (23-Jan-2024) |
auf Bestellung 653 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||
![]() +1 |

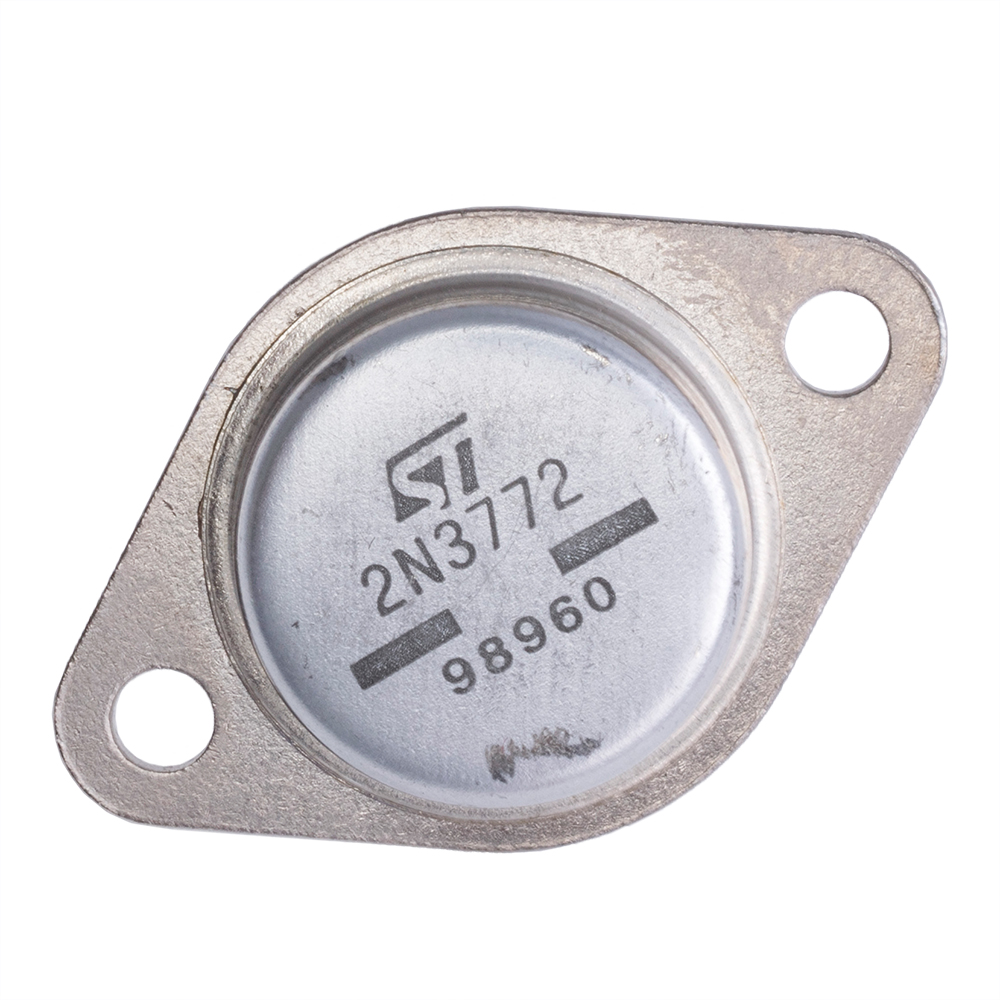

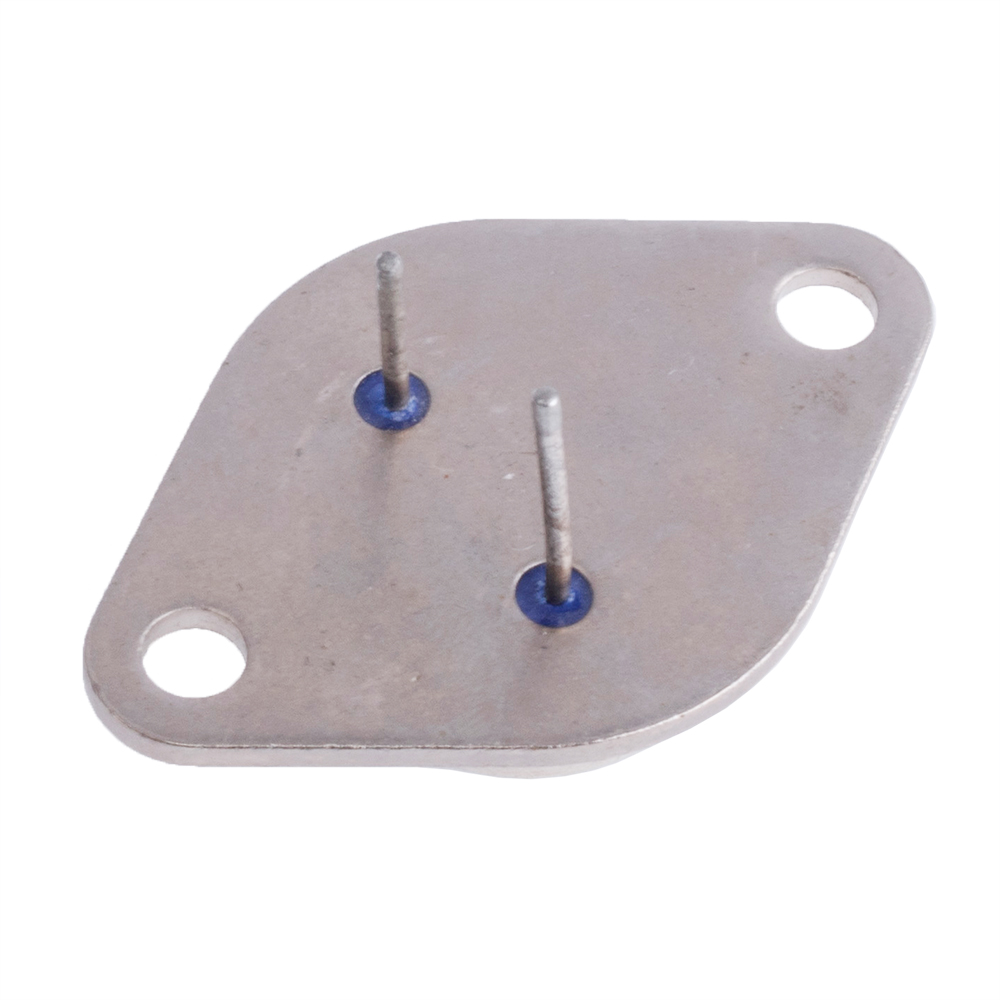

2N3772 (Bipolartransistor NPN) Produktcode: 36119 |
![]() Gehäuse: TO-3 fT: 0.2 MHz Uceo,V: 80 Ucbo,V: 100 Ic,A: 20 h21: 40 |
Produkt ist nicht verfügbar
|
||||||||||||
![]() |
2N3772 | Hersteller : Microchip Technology |
![]() |
Produkt ist nicht verfügbar |
|||||||||||
![]() |
2N3772 | Hersteller : Microchip Technology |
![]() |
Produkt ist nicht verfügbar |
|||||||||||
![]() |
2N3772 | Hersteller : STMicroelectronics |
![]() |
Produkt ist nicht verfügbar |
|||||||||||
![]() |
2N3772 | Hersteller : NTE Electronics |
![]() Description: Transistor: NPN; bipolar; 60V; 20A; 150W; TO3 Type of transistor: NPN Polarisation: bipolar Collector-emitter voltage: 60V Collector current: 20A Power dissipation: 150W Case: TO3 Current gain: 15...60 Mounting: THT Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
|||||||||||
![]() |
2N3772 | Hersteller : STMicroelectronics |
![]() Packaging: Tube Package / Case: TO-204AA, TO-3 Mounting Type: Chassis Mount Transistor Type: NPN Vce Saturation (Max) @ Ib, Ic: 4V @ 4A, 20A Current - Collector Cutoff (Max): 10mA DC Current Gain (hFE) (Min) @ Ic, Vce: 15 @ 10A, 4V Frequency - Transition: 200kHz Supplier Device Package: TO-3 Part Status: Obsolete Current - Collector (Ic) (Max): 20 A Voltage - Collector Emitter Breakdown (Max): 60 V Power - Max: 150 W |
Produkt ist nicht verfügbar |
|||||||||||
![]() |
2N3772 | Hersteller : Microchip Technology |
![]() Packaging: Bulk Package / Case: TO-204AA, TO-3 Mounting Type: Through Hole Transistor Type: NPN Operating Temperature: -65°C ~ 200°C (TJ) Vce Saturation (Max) @ Ib, Ic: 4V @ 4A, 20A Current - Collector Cutoff (Max): 5mA DC Current Gain (hFE) (Min) @ Ic, Vce: 15 @ 10A, 4V Supplier Device Package: TO-3 Current - Collector (Ic) (Max): 5 mA Voltage - Collector Emitter Breakdown (Max): 60 V Power - Max: 6 W |
Produkt ist nicht verfügbar |
|||||||||||
![]() |
2N3772 | Hersteller : STMicroelectronics |
![]() |
Produkt ist nicht verfügbar |
|||||||||||
![]() |
2N3772 | Hersteller : TT Electronics - IoT Solutions |
![]() |
Produkt ist nicht verfügbar |
|||||||||||
![]() |
2N3772 | Hersteller : onsemi |
![]() |
Produkt ist nicht verfügbar |
|||||||||||
2N3772 | Hersteller : Toshiba |
![]() |
Produkt ist nicht verfügbar |
||||||||||||
2N3772 | Hersteller : Microchip Technology |
![]() |
Produkt ist nicht verfügbar |
||||||||||||
![]() |
2N3772 | Hersteller : NTE Electronics |
![]() Description: Transistor: NPN; bipolar; 60V; 20A; 150W; TO3 Type of transistor: NPN Polarisation: bipolar Collector-emitter voltage: 60V Collector current: 20A Power dissipation: 150W Case: TO3 Current gain: 15...60 Mounting: THT |
Produkt ist nicht verfügbar |
