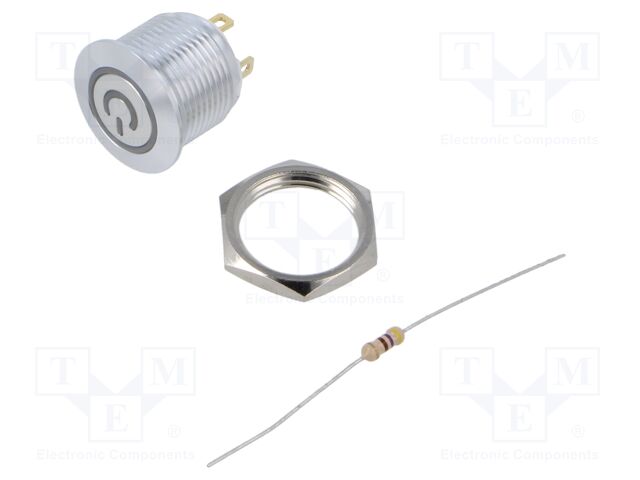

2213775-1 TE Connectivity
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 2A/36VDC; IP67; OFF-(ON)
Operating temperature: -20...70°C
Manufacturer series: AV
IP rating: IP67
Contact material: copper
Type of switch: vandal resistant
Contacts configuration: SPST
DC contacts rating @R: 2A / 36V DC
Switching method: OFF-(ON)
Stable positions number: 1
Operating Force: 4.5N
Illumination: LED; ring
Illumination voltage: 12V DC
Actuator colour: silver
Body colour: silver
Backlight colour: white
Key stroke: 2mm
Button shape: round
Number of positions: 2
Mounting: on panel
Contact plating: silver plated
Mechanical durability: 1000000 cycles
Max. contact resistance:: 50mΩ
Min. insulation resistance: 1GΩ
Mounting hole diameter: Ø16mm
Leads: connectors 2,75x0,5mm
Electrical life: 200000 cycles
Flammability rating: UL94V-0
Anzahl je Verpackung: 1 Stücke
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 2A/36VDC; IP67; OFF-(ON)
Operating temperature: -20...70°C
Manufacturer series: AV
IP rating: IP67
Contact material: copper
Type of switch: vandal resistant
Contacts configuration: SPST
DC contacts rating @R: 2A / 36V DC
Switching method: OFF-(ON)
Stable positions number: 1
Operating Force: 4.5N
Illumination: LED; ring
Illumination voltage: 12V DC
Actuator colour: silver
Body colour: silver
Backlight colour: white
Key stroke: 2mm
Button shape: round
Number of positions: 2
Mounting: on panel
Contact plating: silver plated
Mechanical durability: 1000000 cycles
Max. contact resistance:: 50mΩ
Min. insulation resistance: 1GΩ
Mounting hole diameter: Ø16mm
Leads: connectors 2,75x0,5mm
Electrical life: 200000 cycles
Flammability rating: UL94V-0
Anzahl je Verpackung: 1 Stücke
auf Bestellung 10 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 4+ | 18.79 EUR |
