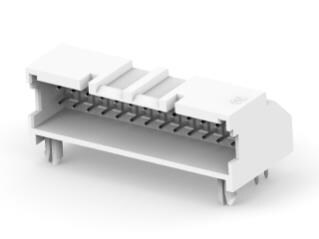

2-2323750-6 TE Connectivity AMP Connectors
![DDEController?Action=srchrtrv&DocNm=2323750&DocType=Customer+Drawing&DocLang=English](/images/adobe-acrobat.png)
Description: ASSY,HDR,RIGHT ANGLE,GWT,DUAL RO
Packaging: Tray
Features: Board Lock, Glow Wire Compliant
Connector Type: Header
Voltage Rating: 250VAC
Current Rating (Amps): 4.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 26
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Friction Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Natural
Pitch - Mating: 0.098" (2.50mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 78.7µin (2.00µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.134" (3.40mm)
Insulation Height: 0.479" (12.17mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA66), Nylon 6/6
Row Spacing - Mating: 0.098" (2.50mm)
auf Bestellung 645 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
5+ | 4.36 EUR |
10+ | 3.89 EUR |
80+ | 3.83 EUR |
440+ | 3.5 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 2-2323750-6 TE Connectivity AMP Connectors
Description: ASSY,HDR,RIGHT ANGLE,GWT,DUAL RO, Packaging: Tray, Features: Board Lock, Glow Wire Compliant, Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): 4.2A, Mounting Type: Through Hole, Right Angle, Number of Positions: 26, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Friction Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Natural, Pitch - Mating: 0.098" (2.50mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 78.7µin (2.00µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.134" (3.40mm), Insulation Height: 0.479" (12.17mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA66), Nylon 6/6, Row Spacing - Mating: 0.098" (2.50mm).
