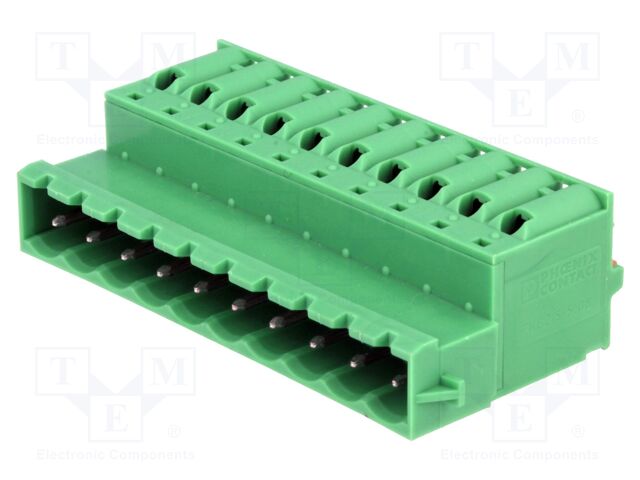

1925948 PHOENIX CONTACT
Hersteller: PHOENIX CONTACT
Category: Pluggable terminal blocks
Description: Pluggable terminal block; Contacts ph: 5.08mm; ways: 10; straight
Operating temperature: -40...105°C
Current rating: 12A
Flammability rating: UL94V-0
Body material: polyamide
Connector pinout layout: 1x10
Connector variant: with push button
Contacts pitch: 5.08mm
Conform to the norm: CSA; UL; VDE
Wire cross-section: 0.2...2.5mm2
Wire size: 24AWG...12AWG
Locking system: latch
Electrical mounting: spring clamp
Mechanical mounting: for cable
Number of ways: 10
Stripped wire length: 10mm
Number of terminals: 10
Spatial orientation: straight
Colour: green
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: male
Contact plating: tinned
Rated voltage: 0.25kV
Anzahl je Verpackung: 1 Stücke
Category: Pluggable terminal blocks
Description: Pluggable terminal block; Contacts ph: 5.08mm; ways: 10; straight
Operating temperature: -40...105°C
Current rating: 12A
Flammability rating: UL94V-0
Body material: polyamide
Connector pinout layout: 1x10
Connector variant: with push button
Contacts pitch: 5.08mm
Conform to the norm: CSA; UL; VDE
Wire cross-section: 0.2...2.5mm2
Wire size: 24AWG...12AWG
Locking system: latch
Electrical mounting: spring clamp
Mechanical mounting: for cable
Number of ways: 10
Stripped wire length: 10mm
Number of terminals: 10
Spatial orientation: straight
Colour: green
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: male
Contact plating: tinned
Rated voltage: 0.25kV
Anzahl je Verpackung: 1 Stücke
auf Bestellung 10 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
7+ | 10.47 EUR |
10+ | 7.15 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 1925948 PHOENIX CONTACT
Category: Pluggable terminal blocks, Description: Pluggable terminal block; Contacts ph: 5.08mm; ways: 10; straight, Operating temperature: -40...105°C, Current rating: 12A, Flammability rating: UL94V-0, Body material: polyamide, Connector pinout layout: 1x10, Connector variant: with push button, Contacts pitch: 5.08mm, Conform to the norm: CSA; UL; VDE, Wire cross-section: 0.2...2.5mm2, Wire size: 24AWG...12AWG, Locking system: latch, Electrical mounting: spring clamp, Mechanical mounting: for cable, Number of ways: 10, Stripped wire length: 10mm, Number of terminals: 10, Spatial orientation: straight, Colour: green, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: male, Contact plating: tinned, Rated voltage: 0.25kV, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 1925948 nach Preis ab 7.15 EUR bis 19.48 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1925948 | Hersteller : PHOENIX CONTACT |
Category: Pluggable terminal blocks Description: Pluggable terminal block; Contacts ph: 5.08mm; ways: 10; straight Operating temperature: -40...105°C Current rating: 12A Flammability rating: UL94V-0 Body material: polyamide Connector pinout layout: 1x10 Connector variant: with push button Contacts pitch: 5.08mm Conform to the norm: CSA; UL; VDE Wire cross-section: 0.2...2.5mm2 Wire size: 24AWG...12AWG Locking system: latch Electrical mounting: spring clamp Mechanical mounting: for cable Number of ways: 10 Stripped wire length: 10mm Number of terminals: 10 Spatial orientation: straight Colour: green Type of connector: pluggable terminal block Connector: plug Kind of connector: male Contact plating: tinned Rated voltage: 0.25kV |
auf Bestellung 10 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
1925948 | Hersteller : Phoenix Contact | Pluggable Terminal Blocks 10 Pos 5.08mm Invert Plug 24-12AWG Sprin |
auf Bestellung 36 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||
1925948 | Hersteller : Phoenix Contact |
Description: TERM BLOCK PLUG 10POS STR 5.08MM Packaging: Bulk Features: Locking Ramp Color: Green Mounting Type: Free Hanging (In-Line) Number of Positions: 10 Pitch: 0.200" (5.08mm) Type: Plug, Male Pins Termination Style: Screwless - Push-In Spring Current - IEC: 12A Number of Levels: 1 Wire Gauge or Range - AWG: 12-26 AWG Wire Gauge or Range - mm²: 0.2-2.5mm² Positions Per Level: 10 Plug Wire Entry: 180° Contact Mating Finish: Tin Part Status: Active Current - UL: 10 A Voltage - IEC: 630 V Voltage - UL: 300 V |
Produkt ist nicht verfügbar |
