![1393204-7 1393204-7](https://ce8dc832c.cloudimg.io/v7/_cdn_/43/C5/70/00/0/482356_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=809c7e42c6a12067f02350b948802f4172c5e337)

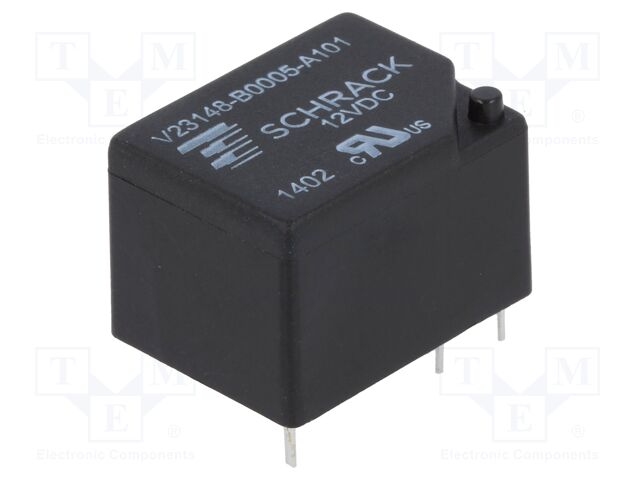

1393204-7 TE Connectivity
![V23148.pdf](/images/adobe-acrobat.png)
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 7A; 7A/250VAC; 7A/24VDC
Mounting: PCB
Body dimensions: 21.2x16.2x14.9mm
Contact material: AgNi 90/10
Coil resistance: 320Ω
Contacts configuration: SPDT
AC contacts rating @R: 7A / 250V AC
DC contacts rating @R: 7A / 24V DC
Type of relay: electromagnetic
Relay variant: bistable; miniature
Relay series: UB
Rated coil voltage: 12V DC
Coil power consumption: 450mW
Operate time: 5ms
Release time: 3ms
Switched voltage: max. 60V DC; max. 400V AC
Contact current max.: 7A
Switching capacity: 1.75kVA
Terminal pitch: 5.08mm
Operating temperature: -25...70°C
auf Bestellung 7 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
5+ | 15.89 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 1393204-7 TE Connectivity
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 7A; 7A/250VAC; 7A/24VDC, Mounting: PCB, Body dimensions: 21.2x16.2x14.9mm, Contact material: AgNi 90/10, Coil resistance: 320Ω, Contacts configuration: SPDT, AC contacts rating @R: 7A / 250V AC, DC contacts rating @R: 7A / 24V DC, Type of relay: electromagnetic, Relay variant: bistable; miniature, Relay series: UB, Rated coil voltage: 12V DC, Coil power consumption: 450mW, Operate time: 5ms, Release time: 3ms, Switched voltage: max. 60V DC; max. 400V AC, Contact current max.: 7A, Switching capacity: 1.75kVA, Terminal pitch: 5.08mm, Operating temperature: -25...70°C, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 1393204-7 nach Preis ab 15.27 EUR bis 23.81 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
1393204-7 | Hersteller : TE Connectivity |
![]() Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 7A; 7A/250VAC; 7A/24VDC Mounting: PCB Body dimensions: 21.2x16.2x14.9mm Contact material: AgNi 90/10 Coil resistance: 320Ω Contacts configuration: SPDT AC contacts rating @R: 7A / 250V AC DC contacts rating @R: 7A / 24V DC Type of relay: electromagnetic Relay variant: bistable; miniature Relay series: UB Rated coil voltage: 12V DC Coil power consumption: 450mW Operate time: 5ms Release time: 3ms Switched voltage: max. 60V DC; max. 400V AC Contact current max.: 7A Switching capacity: 1.75kVA Terminal pitch: 5.08mm Operating temperature: -25...70°C Anzahl je Verpackung: 1 Stücke |
auf Bestellung 7 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
![]() |
1393204-7 | Hersteller : TE Connectivity / AMP |
![]() |
auf Bestellung 311 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
![]() |
1393204-7 | Hersteller : TE CONNECTIVITY / PARTNER STOCK |
![]() tariffCode: 85364900 rohsCompliant: YES Relaisanschlüsse: Lötanschlüsse hazardous: false rohsPhthalatesCompliant: YES Spulentyp: Bistabile Einzelspule Kontaktmaterial: Silber-Nickel Kontaktstrom: 7A usEccn: EAR99 Spulenwiderstand: 119ohm euEccn: NLR Kontaktspannung V DC: 0 Relaismontage: Durchsteckmontage Produktpalette: U/UB Series productTraceability: No Spulenspannung: 12VDC Kontaktkonfiguration: SPDT Kontaktspannung V AC: 250V SVHC: No SVHC (14-Jun-2023) |
auf Bestellung 1425 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||
![]() |
1393204-7 | Hersteller : TE Connectivity |
![]() |
auf Bestellung 400 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||
1393204-7 | Hersteller : TE Connectivity |
![]() |
auf Bestellung 725 Stücke: Lieferzeit 10-14 Tag (e) |
||||||||||||
1393204-7 (V23148B0005A101) Produktcode: 123841 |
Relais |
Produkt ist nicht verfügbar
|
