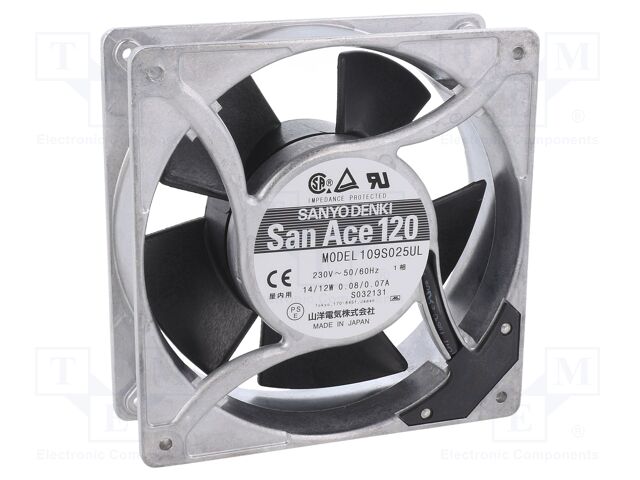

109S025UL Sanyo Denki America Inc.
![page=12038](/images/adobe-acrobat.png)
Description: FAN 120X38MM 230VAC
Packaging: Box
Power (Watts): 12.00W
Voltage - Rated: 230VAC
Size / Dimension: Square - 119mm L x 119mm H
Bearing Type: Ball
RPM: 3100 RPM
Air Flow: 95.4 CFM (2.67m³/min)
Width: 38.00mm
Weight: 1.2 lbs (544.3 g)
Operating Temperature: -22 ~ 140°F (-30 ~ 60°C)
Termination: 2 Terminals
Approval Agency: CE, CSA, PSE, TUV, UL
Fan Type: Tubeaxial
Noise: 43.0dB(A)
Static Pressure: 0.264 in H2O (65.7 Pa)
Part Status: Active
auf Bestellung 120 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 67.57 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 109S025UL Sanyo Denki America Inc.
Category: AC230V Fans, Description: Fan: AC; axial; 120x120x38mm; 141m3/h; 40dBA; ball bearing; 2700rpm, Fan dimensions: 120x120x38mm, Flammability rating: UL94V-1, Operating temperature: -30...60°C, Rotational rate/speed: 2700rpm, Noise level: 40dBA, Current and power consumption tolerance: ±10%, Power consumption: 14W, Additional functions: lock sensor; reverse polarity protection, Kind of fan: axial, Kind of material: flame retardant, Rated voltage: 230V AC, Min. insulation resistance: 10MΩ, Enclosure material: aluminium, Current rating: 80mA, Operating voltage: 230V AC, Type of fan: AC, Impeller material: plastic, Kind of Bearing: ball bearing, Fan efficiency: 141m3/h, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 109S025UL nach Preis ab 60.79 EUR bis 81.54 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
109S025UL | Hersteller : SANYO DENKI |
![]() Description: Fan: AC; axial; 120x120x38mm; 141m3/h; 40dBA; ball bearing; 2700rpm Fan dimensions: 120x120x38mm Flammability rating: UL94V-1 Operating temperature: -30...60°C Rotational rate/speed: 2700rpm Noise level: 40dBA Current and power consumption tolerance: ±10% Power consumption: 14W Additional functions: lock sensor; reverse polarity protection Kind of fan: axial Kind of material: flame retardant Rated voltage: 230V AC Min. insulation resistance: 10MΩ Enclosure material: aluminium Current rating: 80mA Operating voltage: 230V AC Type of fan: AC Impeller material: plastic Kind of Bearing: ball bearing Fan efficiency: 141m3/h Anzahl je Verpackung: 1 Stücke |
auf Bestellung 1 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||
![]() |
109S025UL | Hersteller : SANYO DENKI |
![]() Description: Fan: AC; axial; 120x120x38mm; 141m3/h; 40dBA; ball bearing; 2700rpm Fan dimensions: 120x120x38mm Flammability rating: UL94V-1 Operating temperature: -30...60°C Rotational rate/speed: 2700rpm Noise level: 40dBA Current and power consumption tolerance: ±10% Power consumption: 14W Additional functions: lock sensor; reverse polarity protection Kind of fan: axial Kind of material: flame retardant Rated voltage: 230V AC Min. insulation resistance: 10MΩ Enclosure material: aluminium Current rating: 80mA Operating voltage: 230V AC Type of fan: AC Impeller material: plastic Kind of Bearing: ball bearing Fan efficiency: 141m3/h |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
|
109S025UL | Hersteller : Sanyo Denki |
![]() |
auf Bestellung 96 Stücke: Lieferzeit 10-14 Tag (e) |
|
