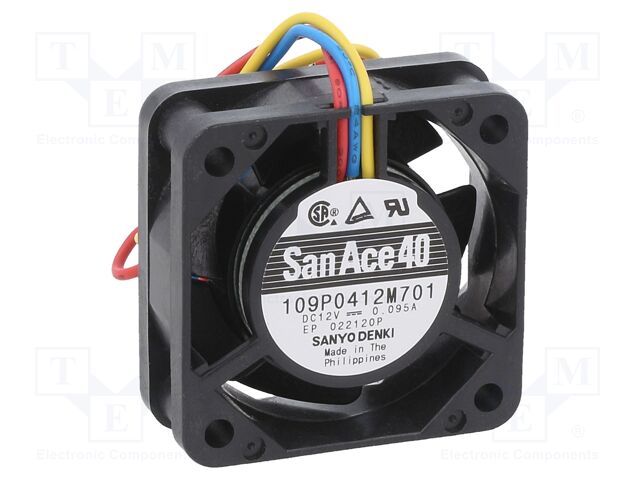

109P0412M701 SANYO DENKI
Hersteller: SANYO DENKI
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x15mm; 9m3/h; 24dBA; ball; 6500rpm
Flammability rating: UL94V-1
Operating temperature: -20...70°C
Noise level: 24dBA
Rotational rate/speed: 6500rpm
Power consumption: 1.14W
Cable length: 0.32m
Additional functions: lock sensor; reverse polarity protection
Kind of fan: axial
Kind of material: flame retardant
Min. insulation resistance: 10MΩ
Enclosure material: plastic
Current rating: 95mA
Supply voltage: 12V DC
Leads: lead x3
Operating voltage: 10.2...13.8V DC
Type of fan: DC
Fan dimensions: 40x40x15mm
Impeller material: plastic
Kind of Bearing: ball
Fan efficiency: 9m3/h
Anzahl je Verpackung: 1 Stücke
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x15mm; 9m3/h; 24dBA; ball; 6500rpm
Flammability rating: UL94V-1
Operating temperature: -20...70°C
Noise level: 24dBA
Rotational rate/speed: 6500rpm
Power consumption: 1.14W
Cable length: 0.32m
Additional functions: lock sensor; reverse polarity protection
Kind of fan: axial
Kind of material: flame retardant
Min. insulation resistance: 10MΩ
Enclosure material: plastic
Current rating: 95mA
Supply voltage: 12V DC
Leads: lead x3
Operating voltage: 10.2...13.8V DC
Type of fan: DC
Fan dimensions: 40x40x15mm
Impeller material: plastic
Kind of Bearing: ball
Fan efficiency: 9m3/h
Anzahl je Verpackung: 1 Stücke
auf Bestellung 260 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
7+ | 10.94 EUR |
10+ | 10.54 EUR |
20+ | 10.28 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 109P0412M701 SANYO DENKI
Description: SANYO DENKI - 109P0412M701 - DC-Axiallüfter, 12 V, Quadratisch, 40 mm, 15 mm, Kugellager, 5.3 cu.ft/min, tariffCode: 84145925, Versorgungsspannung: 12VDC, Stromanschluss: 3 Anschlussdrähte, Sensorausgang, rohsCompliant: Y-EX, hazardous: false, rohsPhthalatesCompliant: YES, Luftdurchsatz, imperial: 5.3cu.ft/min, Luftdurchsatz, metrisch: 0.15m³/min, Art des Lagers: Kugellager, Nennleistung: 1.14W, IP-Schutzart: -, usEccn: EAR99, Spannungstyp: DC, Luftstrom - m3/min: 0.15m³/min, Nennstrom: 95mA, Außentiefe: 15mm, Geräuschentwicklung: 24dBA, euEccn: NLR, Luftstrom - CFM: 5.3cu.ft/min, Lüfterrahmen: Quadratisch, Produktpalette: San Ace 40, productTraceability: No, Rahmengröße: 40mm, Versorgungsspannung, V DC: 12V, Nenndrehzahl: 6500rpm, SVHC: To Be Advised.
Weitere Produktangebote 109P0412M701 nach Preis ab 10.28 EUR bis 21.93 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
109P0412M701 | Hersteller : SANYO DENKI |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 40x40x15mm; 9m3/h; 24dBA; ball; 6500rpm Flammability rating: UL94V-1 Operating temperature: -20...70°C Noise level: 24dBA Rotational rate/speed: 6500rpm Power consumption: 1.14W Cable length: 0.32m Additional functions: lock sensor; reverse polarity protection Kind of fan: axial Kind of material: flame retardant Min. insulation resistance: 10MΩ Enclosure material: plastic Current rating: 95mA Supply voltage: 12V DC Leads: lead x3 Operating voltage: 10.2...13.8V DC Type of fan: DC Fan dimensions: 40x40x15mm Impeller material: plastic Kind of Bearing: ball Fan efficiency: 9m3/h |
auf Bestellung 260 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
109P0412M701 | Hersteller : Sanyo Denki America Inc. |
Description: FAN AXIAL 40X15MM 12VDC WIRE Packaging: Box Features: Locked Rotor Protection, Speed Sensor (Tach) Voltage - Rated: 12VDC Size / Dimension: Square - 40mm L x 40mm H Bearing Type: Ball RPM: 6500 RPM Air Flow: 5.3 CFM (0.148m³/min) Width: 15.00mm Weight: 0.071 lb (32.21 g) Operating Temperature: -4 ~ 158°F (-20 ~ 70°C) Termination: 3 Wire Leads Approval Agency: CSA, TUV, UL Fan Type: Tubeaxial Noise: 24.0dB(A) Static Pressure: 0.213 in H2O (53.0 Pa) Power (Watts): 1.14 W |
auf Bestellung 280 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||
109P0412M701 | Hersteller : Sanyo Denki | DC Fans DC Axial Fan, 40x40x15mm, 12VDC, Tachometer |
auf Bestellung 170 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||
109P0412M701 | Hersteller : SANYO DENKI |
Description: SANYO DENKI - 109P0412M701 - DC-Axiallüfter, 12 V, Quadratisch, 40 mm, 15 mm, Kugellager, 5.3 cu.ft/min tariffCode: 84145925 Versorgungsspannung: 12VDC Stromanschluss: 3 Anschlussdrähte, Sensorausgang rohsCompliant: Y-EX hazardous: false rohsPhthalatesCompliant: YES Luftdurchsatz, imperial: 5.3cu.ft/min Luftdurchsatz, metrisch: 0.15m³/min Art des Lagers: Kugellager Nennleistung: 1.14W IP-Schutzart: - usEccn: EAR99 Spannungstyp: DC Luftstrom - m3/min: 0.15m³/min Nennstrom: 95mA Außentiefe: 15mm Geräuschentwicklung: 24dBA euEccn: NLR Luftstrom - CFM: 5.3cu.ft/min Lüfterrahmen: Quadratisch Produktpalette: San Ace 40 productTraceability: No Rahmengröße: 40mm Versorgungsspannung, V DC: 12V Nenndrehzahl: 6500rpm SVHC: To Be Advised |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||||
109P0412M701 | Hersteller : Sanyo Denki | DC Fan Axial Ball Bearing 12V 10.2V to 13.8V 5.3CFM 24dB 40 X 40 X 15mm Sensor |
Produkt ist nicht verfügbar |
