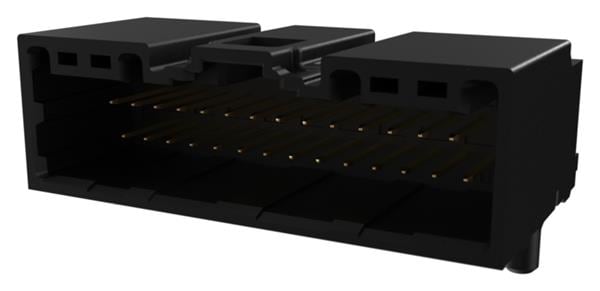

10153118-128KDLF Amphenol ICC (FCI)

Description: WIRELOCK 28PIN D HEADER-10153118, Packaging: Tape & Reel (TR), Features: Board Guide, Connector Type: Header, Current Rating (Amps): 2A per Contact, Mounting Type: Through Hole, Right Angle, Number of Positions: 28, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.071" (1.80mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.091" (2.30mm), Insulation Height: 0.409" (10.40mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Thermoplastic, Row Spacing - Mating: 0.098" (2.50mm), Contact Length - Mating: 0.220" (5.59mm).
