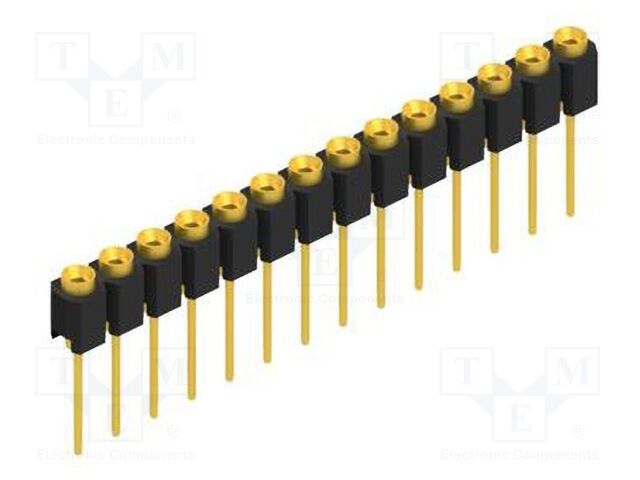

10129353 FISCHER ELEKTRONIK
Hersteller: FISCHER ELEKTRONIK
Category: Pin headers
Description: Socket; pin strips; female; PIN: 14; straight; 2.54mm; THT; 1x14
Operating temperature: -40...163°C
Contact plating: gold-plated
Current rating: 1.5A
Number of pins: 14
Electrical mounting: THT
Plating thickness: 0.75µm
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Kind of connector: female
Rated voltage: 60V
Flammability rating: UL94V-0
Contact material: beryllium copper
Connector pinout layout: 1x14
Contacts pitch: 2.54mm
Anzahl je Verpackung: 1 Stücke
Category: Pin headers
Description: Socket; pin strips; female; PIN: 14; straight; 2.54mm; THT; 1x14
Operating temperature: -40...163°C
Contact plating: gold-plated
Current rating: 1.5A
Number of pins: 14
Electrical mounting: THT
Plating thickness: 0.75µm
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Kind of connector: female
Rated voltage: 60V
Flammability rating: UL94V-0
Contact material: beryllium copper
Connector pinout layout: 1x14
Contacts pitch: 2.54mm
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 10129353 FISCHER ELEKTRONIK
Category: Pin headers, Description: Socket; pin strips; female; PIN: 14; straight; 2.54mm; THT; 1x14, Operating temperature: -40...163°C, Contact plating: gold-plated, Current rating: 1.5A, Number of pins: 14, Electrical mounting: THT, Plating thickness: 0.75µm, Spatial orientation: straight, Type of connector: pin strips, Connector: socket, Kind of connector: female, Rated voltage: 60V, Flammability rating: UL94V-0, Contact material: beryllium copper, Connector pinout layout: 1x14, Contacts pitch: 2.54mm, Anzahl je Verpackung: 1 Stücke.
