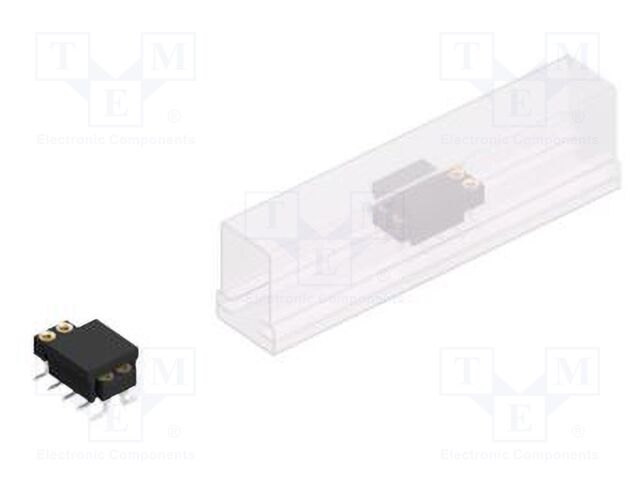

10042643 FISCHER ELEKTRONIK

Category: Pin headers, Description: Connector: pin strips; socket; MK 222 SMD; female; PIN: 10; 2.54mm, Type of connector: pin strips, Connector: socket, Connector series: MK 222 SMD, Kind of connector: female, Number of pins: 10, Connector variant: pick and place, Spatial orientation: straight, Contacts pitch: 2.54mm, Electrical mounting: SMT, Connector pinout layout: 2x5, Contact plating: gold-plated, Leads dimensions: L 2.1mm, Row pitch: 2.54mm, Rated voltage: 150V, Current rating: 3A, Flammability rating: UL94V-0, Plating thickness: 0.75µm, Contact material: beryllium copper, Operating temperature: -40...163°C, Kind of package: tube, Overall length: 5.4mm, Anzahl je Verpackung: 1 Stücke.
