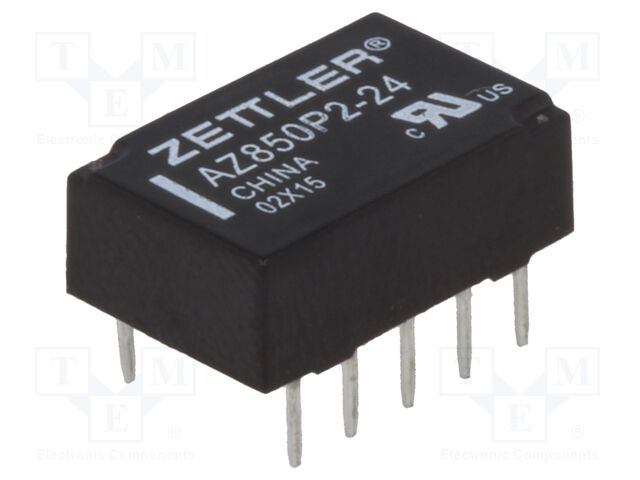

AZ850P2-24 ZETTLER
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: bistable; subminiature
Mounting: PCB
Coil resistance: 1.92kΩ
Coil voltage min.: 18V DC
Coil voltage max.: 36V DC
Operate time: 2ms
Body dimensions: 14x9x5mm
Release time: 2ms
Coil power consumption: 169mW
Mechanical durability: 100000000 cycles
Operating temperature: -55...90°C
Relay series: AZ850
Contact resistance: 70mΩ
Case: DIP10
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Terminal pitch: 2.54mm
Design: two coils
Test voltage: 1.5kV
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: bistable; subminiature
Mounting: PCB
Coil resistance: 1.92kΩ
Coil voltage min.: 18V DC
Coil voltage max.: 36V DC
Operate time: 2ms
Body dimensions: 14x9x5mm
Release time: 2ms
Coil power consumption: 169mW
Mechanical durability: 100000000 cycles
Operating temperature: -55...90°C
Relay series: AZ850
Contact resistance: 70mΩ
Case: DIP10
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Terminal pitch: 2.54mm
Design: two coils
Test voltage: 1.5kV
Anzahl je Verpackung: 1 Stücke
auf Bestellung 858 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
27+ | 2.67 EUR |
30+ | 2.42 EUR |
41+ | 1.76 EUR |
44+ | 1.66 EUR |
500+ | 1.63 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details AZ850P2-24 ZETTLER
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; PCB, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 24V DC, Contact current max.: 1A, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 1A / 30V DC, Switched voltage: max. 220V DC; max. 250V AC, Relay variant: bistable; subminiature, Mounting: PCB, Coil resistance: 1.92kΩ, Coil voltage min.: 18V DC, Coil voltage max.: 36V DC, Operate time: 2ms, Body dimensions: 14x9x5mm, Release time: 2ms, Coil power consumption: 169mW, Mechanical durability: 100000000 cycles, Operating temperature: -55...90°C, Relay series: AZ850, Contact resistance: 70mΩ, Case: DIP10, Switching capacity: 30W; 50VA, Soldering temperature: 250°C, Terminal pitch: 2.54mm, Design: two coils, Test voltage: 1.5kV, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote AZ850P2-24 nach Preis ab 1.63 EUR bis 3.83 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AZ850P2-24 | Hersteller : ZETTLER |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A; 0.5A/125VAC; PCB Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 24V DC Contact current max.: 1A AC contacts rating @R: 0.5A / 125V AC DC contacts rating @R: 1A / 30V DC Switched voltage: max. 220V DC; max. 250V AC Relay variant: bistable; subminiature Mounting: PCB Coil resistance: 1.92kΩ Coil voltage min.: 18V DC Coil voltage max.: 36V DC Operate time: 2ms Body dimensions: 14x9x5mm Release time: 2ms Coil power consumption: 169mW Mechanical durability: 100000000 cycles Operating temperature: -55...90°C Relay series: AZ850 Contact resistance: 70mΩ Case: DIP10 Switching capacity: 30W; 50VA Soldering temperature: 250°C Terminal pitch: 2.54mm Design: two coils Test voltage: 1.5kV |
auf Bestellung 858 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
AZ850P2-24 | Hersteller : Zettler Components Company | Signal Relay 24VDC 1A DPDT(14x9x5)mm THT |
auf Bestellung 858 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
AZ850P2-24 Produktcode: 127758 |
Relais |
Produkt ist nicht verfügbar
|
|||||||||||||||
AZ850P2-24 | Hersteller : American Zettler |
Description: RELAY GEN PURPOSE DPDT 1A 24V Packaging: Box Mounting Type: Through Hole Coil Voltage: 24VDC Operating Temperature: -40°C ~ 70°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 12.5 mA Coil Type: Latching, Dual Coil Seal Rating: Sealed - Fully Contact Material: Silver Palladium (AgPd), Gold (Au) Contact Form: DPDT (2 Form C) Contact Rating (Current): 1 A Switching Voltage: 250VAC, 220VDC - Max Must Release Voltage: 2.4 VDC Must Operate Voltage: 18 VDC Operate Time: 2 ms Release Time: 1 ms Part Status: Active Approval Agency: cUR, UL Load - Max Switching: 250VA, 220W |
Produkt ist nicht verfügbar |
