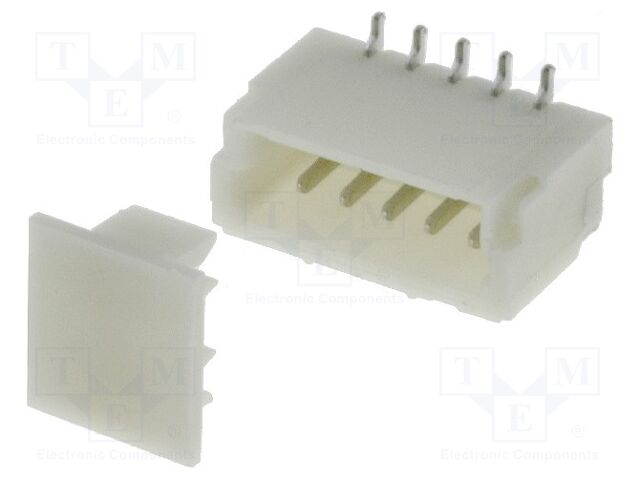

A1001WV-S-5P JOINT TECH
Hersteller: JOINT TECHCategory: Raster signal connectors 1,00mm
Description: Socket; wire-board; male; 1mm; PIN: 5; SMT; 50V; 1A; tinned; 20mΩ
Type of connector: wire-board
Connector: socket
Kind of connector: male
Contact material: phosphor bronze
Contact plating: tinned
Electrical mounting: SMT
Current rating: 1A
Contacts pitch: 1mm
Max. contact resistance:: 20mΩ
Operating temperature: -25...85°C
Number of pins: 5
Rated voltage: 50V
Body material: polyamide
Spatial orientation: vertical
Flammability rating: UL94V-0
Connector pinout layout: 1x5
Test voltage: 0.5kV
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1215 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 214+ | 0.33 EUR |
| 257+ | 0.28 EUR |
| 443+ | 0.16 EUR |
| 468+ | 0.15 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details A1001WV-S-5P JOINT TECH
Category: Raster signal connectors 1,00mm, Description: Socket; wire-board; male; 1mm; PIN: 5; SMT; 50V; 1A; tinned; 20mΩ, Type of connector: wire-board, Connector: socket, Kind of connector: male, Contact material: phosphor bronze, Contact plating: tinned, Electrical mounting: SMT, Current rating: 1A, Contacts pitch: 1mm, Max. contact resistance:: 20mΩ, Operating temperature: -25...85°C, Number of pins: 5, Rated voltage: 50V, Body material: polyamide, Spatial orientation: vertical, Flammability rating: UL94V-0, Connector pinout layout: 1x5, Test voltage: 0.5kV, Anzahl je Verpackung: 1 Stücke.
