Produkte > SAMTEC INC. > Alle Produkte des Herstellers SAMTEC INC. (182258) > Seite 297 nach 3038

Wählen Sie Seite:   [  << Vorherige Seite ]  1 292 293 294 295 296 297 298 299 300 301 302 303 606 909 1212 1515 1818 2121 2424 2727 3030 3038  [ Nächste Seite >> ]
Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
ohne MwSt
MEC1-150-02-FM-D-A MEC1-150-02-FM-D-A Samtec Inc. mec1-1xx-xx-xx-d-xx-xx-footprint.pdf Description: CONN EDGE DUAL FMALE 100P 0.039
auf Bestellung 41 Stücke:
Lieferzeit 10-14 Tag (e)
1+20.2 EUR
10+ 18.18 EUR
30+ 17.13 EUR
40+ 16.69 EUR

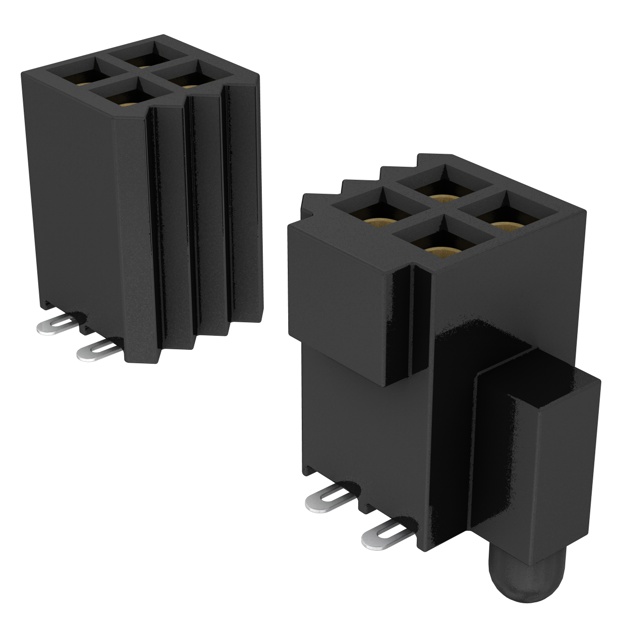

SFM-115-02-S-D-A-P SFM-115-02-S-D-A-P Samtec Inc. sfm-1xx-xx-x-xh-xr-mkt.pdf Description: CONN RCPT 30POS 0.05 GOLD SMD
Packaging: Tube
Features: Board Guide, Pick and Place
Connector Type: Receptacle
Voltage Rating: 250VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 30
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Insulation Height: 0.185" (4.70mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
auf Bestellung 491 Stücke:
Lieferzeit 10-14 Tag (e)
2+9.52 EUR
10+ 8.55 EUR
25+ 7.71 EUR
50+ 6.97 EUR
100+ 6.31 EUR
Mindestbestellmenge: 2
MEC8-125-02-L-D-RA1 MEC8-125-02-L-D-RA1 Samtec Inc. mec8-1xx-xx-xx-d-rxx-xx-mkt.pdf Description: CONN EDGE DUAL FMALE 50POS 0.031
Packaging: Tray
Features: Board Guide
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount, Right Angle
Number of Positions: 50
Pitch: 0.031" (0.80mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Part Status: Active
Number of Rows: 2
auf Bestellung 5056 Stücke:
Lieferzeit 10-14 Tag (e)
90+10.5 EUR
180+ 9.81 EUR
Mindestbestellmenge: 90
FSI-115-03-G-D-AD FSI-115-03-G-D-AD Samtec Inc. fsi-1xx-03-x-d-x-xx-xx-x-xx-mkt.pdf Description: CONN STACKING 30POS SMD GOLD
Packaging: Tube
Features: Board Guide, Mating Guide
Connector Type: Stacking Compression
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 30
Pitch: 0.039" (1.00mm)
Height Above Board: 0.118" (3.00mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Number of Rows: 2
auf Bestellung 200 Stücke:
Lieferzeit 10-14 Tag (e)
1+19.5 EUR
10+ 17.28 EUR
25+ 16.62 EUR
50+ 15.95 EUR
100+ 15.07 EUR
LSEM-120-01-L-DH-A-N-K-TR LSEM-120-01-L-DH-A-N-K-TR Samtec Inc. lsem-1xx-xx.x-x-dv-a-x-xx-x-xr-mkt.pdf Description: CONN SELF-MATE 40P R/A SMD GOLD
Packaging: Tape & Reel (TR)
Features: Pick and Place
Connector Type: Self Mating, Non-Gendered, Hermaphroditic
Contact Finish: Gold
Mounting Type: Surface Mount, Right Angle
Number of Positions: 40
Pitch: 0.031" (0.80mm)
Height Above Board: 0.202" (5.13mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Number of Rows: 2
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
250+10.62 EUR
500+ 9.97 EUR
750+ 9.33 EUR
Mindestbestellmenge: 250
LSHM-130-03.0-F-DV-A-S-K-TR LSHM-130-03.0-F-DV-A-S-K-TR Samtec Inc. lshm-1xx-xx.x-xxx-dv-a-x-x-xx-mkt.pdf Description: CONN SELF-MATE 60POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place, Shielded
Connector Type: Self Mating, Non-Gendered, Hermaphroditic
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 60
Pitch: 0.020" (0.50mm)
Height Above Board: 0.175" (4.45mm)
Contact Finish Thickness: 3.00µin (0.076µm)
Mated Stacking Heights: 5.5mm, 6mm, 7mm, 9mm
Number of Rows: 2
Produkt ist nicht verfügbar
ERM8-050-01-L-D-EM2-TR ERM8-050-01-L-D-EM2-TR Samtec Inc. Description: CONN HDR 100POS EDGE MNT GOLD
Produkt ist nicht verfügbar
SFSD-10-28-G-12.00-SR SFSD-10-28-G-12.00-SR Samtec Inc. sfsdx-xx-xxx-xx-xx.xx-xx-xxx-mkt.pdf Description: .050 SOCKET DISCRETE CABLE ASSEM
Packaging: Bulk
Connector Type: Socket to Individual Wire Leads
Contact Finish: Gold
Color: Black, Individual
Length: 1.00' (304.80mm)
Shielding: Unshielded
Number of Positions: 20
Number of Rows: 2
Contact Finish Thickness: 10.0µin (0.25µm)
Cable Termination: Crimp
Pitch - Connector: 0.050" (1.27mm)
auf Bestellung 101 Stücke:
Lieferzeit 10-14 Tag (e)
2+10 EUR
25+ 9.05 EUR
50+ 8.69 EUR
Mindestbestellmenge: 2
ERM5-050-02.0-L-DV-P-TR ERM5-050-02.0-L-DV-P-TR Samtec Inc. erm5-xxx-xx.x-x-dv-xx-x-xr-mkt.pdf Description: CONN HDR 100POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place
Connector Type: Header, Outer Shroud Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 100
Pitch: 0.020" (0.50mm)
Height Above Board: 0.191" (4.85mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Heights: 7mm, 9mm
Part Status: Active
Number of Rows: 2
auf Bestellung 1900 Stücke:
Lieferzeit 10-14 Tag (e)
475+8.09 EUR
950+ 7.08 EUR
Mindestbestellmenge: 475
ERM8-025-05.0-S-DV-L-TR ERM8-025-05.0-S-DV-L-TR Samtec Inc. Description: CONN HDR 50POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Latches
Connector Type: Header, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 50
Pitch: 0.031" (0.80mm)
Height Above Board: 0.351" (8.91mm)
Contact Finish Thickness: 30.0µin (0.76µm)
Mated Stacking Heights: 10mm, 12mm, 15mm
Number of Rows: 2
auf Bestellung 250 Stücke:
Lieferzeit 10-14 Tag (e)
250+10.16 EUR
Mindestbestellmenge: 250
T2M-120-01-L-D-SM-WT T2M-120-01-L-D-SM-WT Samtec Inc. t2m-1xx-xx-x-d-xx-xx-x-xx-mkt.pdf Description: CONN HEADER SMD 40POS 2MM
Packaging: Tube
Features: Solder Retention
Connector Type: Header
Current Rating (Amps): 3.8A
Mounting Type: Surface Mount
Number of Positions: 40
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.228" (5.80mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
auf Bestellung 449 Stücke:
Lieferzeit 10-14 Tag (e)
2+14.1 EUR
10+ 13.03 EUR
25+ 12.32 EUR
50+ 11.88 EUR
100+ 11.07 EUR
Mindestbestellmenge: 2
EJH-125-01-F-D-TH EJH-125-01-F-D-TH Samtec Inc. ejh.pdf Description: CONN HEADER VERT 50POS 2.54MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 50
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.120" (3.05mm)
Insulation Height: 0.500" (12.70mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.225" (5.72mm)
auf Bestellung 110 Stücke:
Lieferzeit 10-14 Tag (e)
1+19.98 EUR
10+ 17.7 EUR
100+ 15.43 EUR
TFM-107-02-L-D-DS TFM-107-02-L-D-DS Samtec Inc. tfm.pdf Description: CONN HEADER SMD 14POS 1.27MM
Packaging: Tube
Features: Mating Flange
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 2.9A per Contact
Mounting Type: Surface Mount
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.131" (3.33mm)
auf Bestellung 23 Stücke:
Lieferzeit 10-14 Tag (e)
2+16.07 EUR
10+ 14.46 EUR
Mindestbestellmenge: 2
HSEC8-180-01-L-DV-A-K HSEC8-180-01-L-DV-A-K Samtec Inc. hsec8_dv.pdf Description: CONN EDGE DUAL FML 160POS 0.031
Packaging: Tray
Features: Board Guide, Locking Ramp
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount
Number of Positions: 160
Pitch: 0.031" (0.80mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Beryllium Copper
Number of Positions/Bay/Row: 80
Number of Rows: 2
auf Bestellung 411 Stücke:
Lieferzeit 10-14 Tag (e)
2+15.93 EUR
10+ 14.34 EUR
25+ 13.51 EUR
40+ 13.16 EUR
80+ 12.82 EUR
230+ 11.43 EUR
Mindestbestellmenge: 2
TLE-125-01-G-DV-A-K-TR TLE-125-01-G-DV-A-K-TR Samtec Inc. tle-1xx-xx-x-dv-x-footprint.pdf Description: CONN RCPT 50POS 0.079 GOLD SMD
Produkt ist nicht verfügbar
EHF-125-01-F-D-SM-P-TR EHF-125-01-F-D-SM-P-TR Samtec Inc. ehf-1xx-01-xx-xx-xx-xx-x-xx-mpt.pdf Description: CONN HEADER SMD 50POS 1.27MM
Packaging: Tape & Reel (TR)
Features: Keying Slot, Pick and Place
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 50
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
auf Bestellung 175 Stücke:
Lieferzeit 10-14 Tag (e)
175+11.27 EUR
Mindestbestellmenge: 175
FTSH-125-01-L-DV-K-TR FTSH-125-01-L-DV-K-TR Samtec Inc. ftsh-1xx-xx-xxx-dv-xxx-xxx-mkt.pdf Description: CONN HEADER SMD 50POS 1.27MM
Produkt ist nicht verfügbar
ERM8-030-09.0-S-DV-TR ERM8-030-09.0-S-DV-TR Samtec Inc. Description: CONN HDR 60POS SMD GOLD
auf Bestellung 125 Stücke:
Lieferzeit 10-14 Tag (e)
125+12.52 EUR
Mindestbestellmenge: 125
SFC-130-T2-L-D-A SFC-130-T2-L-D-A Samtec Inc. sfc-1xx-xx-xx-d-xx-mkt.pdf Description: CONN RCPT 60POS 0.05 GOLD SMD
Packaging: Tube
Features: Board Guide
Connector Type: Receptacle
Voltage Rating: 350VAC
Current Rating (Amps): 3.1A per Contact
Mounting Type: Surface Mount
Number of Positions: 60
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.180" (4.57mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
auf Bestellung 390 Stücke:
Lieferzeit 10-14 Tag (e)
2+14.7 EUR
10+ 13.22 EUR
100+ 11.81 EUR
Mindestbestellmenge: 2
SQT-130-03-F-D SQT-130-03-F-D Samtec Inc. sqt-1xx-xx-xxx-x-xxx-xxx-mkt.pdf Description: CONN RCPT 60POS 0.079 GOLD PCB
Packaging: Tube
Connector Type: Receptacle
Current Rating (Amps): 5.1A per Contact
Mounting Type: Through Hole
Number of Positions: 60
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.208" (5.28mm)
Insulation Height: 0.250" (6.35mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 24 Stücke:
Lieferzeit 10-14 Tag (e)
2+14.48 EUR
10+ 13.38 EUR
Mindestbestellmenge: 2
UPT-08-01-01-L-RA UPT-08-01-01-L-RA Samtec Inc. upt-xx-01-xx-x-ra-xx-xx-mkt.pdf Description: CONN HDR 8POS 3.81MM R/A SLDR
Packaging: Tube
Connector Type: Header, Male Blades
Color: Black
Mounting Type: Through Hole, Right Angle
Pitch: 0.150" (3.81mm)
Termination: Solder
Part Status: Active
Number of Rows: 1
Number of Positions: 8
auf Bestellung 341 Stücke:
Lieferzeit 10-14 Tag (e)
1+19.68 EUR
10+ 17.44 EUR
100+ 15.2 EUR
ESW-117-44-G-D ESW-117-44-G-D Samtec Inc. esw_th.pdf Description: CONN SOCKET 34POS 0.1 GOLD PCB
auf Bestellung 53 Stücke:
Lieferzeit 10-14 Tag (e)
1+20.86 EUR
10+ 18.49 EUR
MEC6-140-02-L-DV-A-K-TR MEC6-140-02-L-DV-A-K-TR Samtec Inc. mec6_dv.pdf Description: CONN EDGE DUAL FMALE 80POS 0.025
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount
Number of Positions: 80
Pitch: 0.025" (0.64mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Number of Positions/Bay/Row: 40
Number of Rows: 2
auf Bestellung 175 Stücke:
Lieferzeit 10-14 Tag (e)
175+11.87 EUR
Mindestbestellmenge: 175
MPSC-01-24-01-7.70-01-L-V-LC MPSC-01-24-01-7.70-01-L-V-LC Samtec Inc. mpsc-xx-xx-xx-01-xx-x-ra-xx-footprint.pdf Description: CONN RCPT 26POS GOLD PCB
Packaging: Tray
Features: Board Lock, Mounting Flange
Connector Type: Receptacle
Mounting Type: Through Hole
Number of Positions: 26 (24 + 2 Power)
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.107" (2.71mm)
Insulation Height: 0.298" (7.57mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 4
auf Bestellung 249 Stücke:
Lieferzeit 10-14 Tag (e)
2+10.98 EUR
25+ 9.92 EUR
50+ 9.21 EUR
100+ 9.17 EUR
Mindestbestellmenge: 2
FTSH-120-01-L-D-EJ-K FTSH-120-01-L-D-EJ-K Samtec Inc. ftsh-1xx-xx-xx-d-xx-xx-mkt.pdf Description: CONN HEADER VERT 40POS 1.27MM
Packaging: Tube
Features: End Shrouds, Keying Shroud
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Through Hole
Number of Positions: 40
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.110" (2.79mm)
Insulation Height: 0.099" (2.51mm)
Shrouding: Shrouded
Overall Contact Length: 0.309" (7.86mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
auf Bestellung 197 Stücke:
Lieferzeit 10-14 Tag (e)
2+9.68 EUR
10+ 8.79 EUR
100+ 7.74 EUR
Mindestbestellmenge: 2
MEC1-140-02-L-D-A MEC1-140-02-L-D-A Samtec Inc. mec1.pdf Description: CONN EDGE DUAL FMALE 80POS 0.039
Packaging: Tube
Features: Board Guide
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount
Number of Positions: 80
Pitch: 0.039" (1.00mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Loop Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Part Status: Active
Number of Rows: 2
auf Bestellung 15 Stücke:
Lieferzeit 10-14 Tag (e)
1+19.96 EUR
10+ 17.96 EUR
SMM-117-01-S-D SMM-117-01-S-D Samtec Inc. smm-1xx-xx-xx-d-xx-xx-x-xx-mkt.pdf Description: CONN RCPT 34POS 0.079 GOLD PCB
auf Bestellung 35 Stücke:
Lieferzeit 10-14 Tag (e)
ERM8-050-09.0-L-DV-TR ERM8-050-09.0-L-DV-TR Samtec Inc. erm8-xxx-xx.x-dv-xxxx-footprint.pdf Description: CONN HDR 100POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide
Connector Type: Header, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 100
Pitch: 0.031" (0.80mm)
Height Above Board: 0.508" (12.91mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Heights: 14mm, 16mm, 19mm
Number of Rows: 2
auf Bestellung 8875 Stücke:
Lieferzeit 10-14 Tag (e)
125+11.32 EUR
250+ 10.1 EUR
625+ 9.48 EUR
875+ 8.87 EUR
1250+ 8.38 EUR
Mindestbestellmenge: 125
QSS-025-01-F-D-A QSS-025-01-F-D-A Samtec Inc. qss-xxx-01-x-d-xx-footprint.pdf Description: CONN SOCKET 50POS SMD GOLD
Packaging: Tray
Features: Board Guide, Ground Bus (Plane)
Connector Type: Socket, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 50
Pitch: 0.025" (0.64mm)
Height Above Board: 0.143" (3.63mm)
Contact Finish Thickness: 3.00µin (0.076µm)
Part Status: Active
Number of Rows: 2
auf Bestellung 100 Stücke:
Lieferzeit 10-14 Tag (e)
1+20.4 EUR
10+ 18.36 EUR
25+ 17.3 EUR
40+ 16.85 EUR
96+ 16.41 EUR
ERM8-025-05.0-S-DV-L-K-TR ERM8-025-05.0-S-DV-L-K-TR Samtec Inc. erm8-xxx-xx.x-xxx-dv-xxxx-xx-mkt.pdf Description: CONN HDR 50POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Latches, Pick and Place
Connector Type: Header, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 50
Pitch: 0.031" (0.80mm)
Height Above Board: 0.351" (8.91mm)
Contact Finish Thickness: 30.0µin (0.76µm)
Mated Stacking Heights: 10mm, 12mm, 15mm
Number of Rows: 2
auf Bestellung 7500 Stücke:
Lieferzeit 10-14 Tag (e)
250+8.83 EUR
500+ 8.31 EUR
750+ 7.79 EUR
1250+ 7.27 EUR
1750+ 7.11 EUR
Mindestbestellmenge: 250
MEC6-120-02-L-D-RA1-TR MEC6-120-02-L-D-RA1-TR Samtec Inc. mec6_ra.pdf Description: CONN EDGE DUAL FMALE 40POS 0.025
Packaging: Tape & Reel (TR)
Features: Board Guide
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount, Right Angle
Number of Positions: 40
Pitch: 0.025" (0.64mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Number of Positions/Bay/Row: 20
Part Status: Active
Number of Rows: 2
auf Bestellung 5400 Stücke:
Lieferzeit 10-14 Tag (e)
300+10.89 EUR
600+ 10.23 EUR
900+ 9.57 EUR
1500+ 8.78 EUR
Mindestbestellmenge: 300
SFML-115-02-S-D-LC SFML-115-02-S-D-LC Samtec Inc. sfm.pdf Description: CONN RCPT 30POS 0.05 GOLD SMD
Packaging: Tube
Features: Board Lock
Connector Type: Receptacle
Voltage Rating: 250VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 30
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.185" (4.70mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
auf Bestellung 31 Stücke:
Lieferzeit 10-14 Tag (e)
1+21.6 EUR
10+ 19.13 EUR
LSHM-130-02.5-L-DV-A-S-TR LSHM-130-02.5-L-DV-A-S-TR Samtec Inc. lshm_dv.pdf Description: CONN SELF-MATE 60POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Shielded
Connector Type: Self Mating, Non-Gendered, Hermaphroditic
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 60
Pitch: 0.020" (0.50mm)
Height Above Board: 0.156" (3.96mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Heights: 5mm, 5.5mm, 6.5mm, 8.5mm
Number of Rows: 2
Produkt ist nicht verfügbar
MEC1-108-02-S-D-RA1-SL MEC1-108-02-S-D-RA1-SL Samtec Inc. mec1-1xx-xx-xx-d-rax-xx-sl-xx-mkt.pdf Description: CONN EDGE DUAL FMALE 16POS 0.039
Packaging: Tube
Features: Board Lock
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount, Right Angle
Number of Positions: 16
Pitch: 0.039" (1.00mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Loop Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Phosphor Bronze
Number of Rows: 2
auf Bestellung 10 Stücke:
Lieferzeit 10-14 Tag (e)
2+11.26 EUR
10+ 10.2 EUR
Mindestbestellmenge: 2
SEM-110-02-03.0-H-D-WT SEM-110-02-03.0-H-D-WT Samtec Inc. sem.pdf Description: CONN RCPT 20POS 0.031 GOLD SMD
Packaging: Tray
Features: Solder Retention
Connector Type: Receptacle
Current Rating (Amps): 2.6A per Contact
Mounting Type: Surface Mount
Number of Positions: 20
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Mated Stacking Heights: 6mm, 7mm, 10mm
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Gold
Insulation Height: 0.177" (4.50mm)
Row Spacing - Mating: 0.125" (3.18mm)
Number of Rows: 2
auf Bestellung 115 Stücke:
Lieferzeit 10-14 Tag (e)
2+13.29 EUR
10+ 11.96 EUR
25+ 11.27 EUR
40+ 10.98 EUR
80+ 10.69 EUR
Mindestbestellmenge: 2
SSM-125-L-DV-LC SSM-125-L-DV-LC Samtec Inc. ssm-1xx-xxx-dv-xx-xx-xxx-x-xx-mkt.pdf Description: CONN RCPT 50POS 0.1 GOLD SMD
Packaging: Tube
Features: Board Lock
Connector Type: Receptacle, Pass Through
Voltage Rating: 405VAC, 572VDC
Current Rating (Amps): 5.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 50
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Insulation Height: 0.290" (7.37mm)
Row Spacing - Mating: 0.100" (2.54mm)
Number of Rows: 2
auf Bestellung 171 Stücke:
Lieferzeit 10-14 Tag (e)
2+11.4 EUR
10+ 10.66 EUR
25+ 9.99 EUR
Mindestbestellmenge: 2
MCPK-8-S MCPK-8-S Samtec Inc. mcpk.pdf Description: CONN PLUG HSG FMALE 12POS INLINE
auf Bestellung 20 Stücke:
Lieferzeit 10-14 Tag (e)
EJH-110-01-S-D-TH EJH-110-01-S-D-TH Samtec Inc. ejh.pdf Description: CONN HEADER VERT 20POS 2.54MM
auf Bestellung 1007 Stücke:
Lieferzeit 10-14 Tag (e)
1+20.82 EUR
10+ 18.46 EUR
100+ 16.09 EUR
500+ 13.72 EUR
1000+ 12.59 EUR
FFSD-15-01-N FFSD-15-01-N Samtec Inc. FFSD-yy-yy-y-N-yyy_Dwg.pdf Description: CONN RCPT 30POS IDC 30AWG GOLD
Packaging: Tube
Features: Feed Through, Polarizing Key
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 30 AWG
Number of Positions: 30
Pitch: 0.050" (1.27mm)
Contact Type: Female Socket
Row Spacing: 0.050" (1.27mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Wire Type: Ribbon Cable
Cable Termination: IDC
Part Status: Active
Number of Rows: 2
auf Bestellung 120 Stücke:
Lieferzeit 10-14 Tag (e)
2+15.21 EUR
10+ 13.69 EUR
25+ 12.9 EUR
50+ 12.56 EUR
100+ 12.23 EUR
Mindestbestellmenge: 2
SFM-120-02-L-D-LC SFM-120-02-L-D-LC Samtec Inc. sfm-1xx-xx-xxx-d-xxx-x-xx-mkt.pdf Description: CONN RCPT 40POS 0.05 GOLD SMD
Packaging: Tube
Features: Board Lock
Connector Type: Receptacle
Voltage Rating: 250VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 40
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.185" (4.70mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
auf Bestellung 127 Stücke:
Lieferzeit 10-14 Tag (e)
2+10.05 EUR
10+ 9.03 EUR
25+ 8.14 EUR
50+ 7.37 EUR
100+ 6.66 EUR
Mindestbestellmenge: 2
ERF8-050-01-L-D-EM2-TR ERF8-050-01-L-D-EM2-TR Samtec Inc. erf8-xxx-01-x-d-emx-xxxx-tr-mkt.pdf Description: CONN SOCKET 100POS EDGE MNT GOLD
Packaging: Tape & Reel (TR)
Connector Type: Socket, Outer Shroud Contacts
Contact Finish: Gold
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 100
Pitch: 0.031" (0.80mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Part Status: Active
Number of Rows: 2
auf Bestellung 450 Stücke:
Lieferzeit 10-14 Tag (e)
150+12.45 EUR
300+ 11.1 EUR
450+ 10.43 EUR
Mindestbestellmenge: 150
SFMH-115-02-L-D-LC SFMH-115-02-L-D-LC Samtec Inc. sfmh_sm.pdf Description: CONN RCPT 30P 0.05 GOLD SMD R/A
Packaging: Tube
Features: Board Lock
Connector Type: Receptacle
Mounting Type: Surface Mount, Right Angle
Number of Positions: 30
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Part Status: Active
Insulation Height: 0.135" (3.43mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
auf Bestellung 34 Stücke:
Lieferzeit 10-14 Tag (e)
1+21.82 EUR
10+ 19.34 EUR
ESQT-120-02-L-D-750 ESQT-120-02-L-D-750 Samtec Inc. esqt-1xx-xx-xx-x-xxx-xxx-xx-mkt.pdf Description: CONN SOCKET 40POS 0.079 GOLD PCB
Packaging: Tube
Connector Type: Elevated Socket
Current Rating (Amps): 4.5A per Contact
Mounting Type: Through Hole
Number of Positions: 40
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.100" (2.54mm)
Insulation Height: 0.750" (19.05mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 51 Stücke:
Lieferzeit 10-14 Tag (e)
1+20.72 EUR
10+ 18.36 EUR
QTE-020-03-F-D-A QTE-020-03-F-D-A Samtec Inc. qte.pdf Description: CONN HDR 40POS SMD GOLD
Packaging: Tray
Features: Board Guide, Ground Bus (Plane)
Connector Type: Header, Outer Shroud Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 40
Pitch: 0.031" (0.80mm)
Height Above Board: 0.404" (10.27mm)
Contact Finish Thickness: 3.00µin (0.076µm)
Mated Stacking Heights: 11mm
Part Status: Active
Number of Rows: 2
auf Bestellung 282 Stücke:
Lieferzeit 10-14 Tag (e)
2+14.59 EUR
10+ 13.13 EUR
25+ 12.37 EUR
40+ 12.05 EUR
80+ 11.73 EUR
230+ 10.46 EUR
Mindestbestellmenge: 2
FTSH-125-01-L-DV-K-P FTSH-125-01-L-DV-K-P Samtec Inc. ftsh_smt.pdf Description: CONN HEADER SMD 50POS 1.27MM
Packaging: Tube
Features: Keying Shroud, Pick and Place
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 50
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.099" (2.51mm)
Shrouding: Shrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
auf Bestellung 251 Stücke:
Lieferzeit 10-14 Tag (e)
1+19.31 EUR
10+ 17.12 EUR
100+ 14.92 EUR
SQW-125-01-L-D-VS-A SQW-125-01-L-D-VS-A Samtec Inc. sqw-1xx-01-xxx-d-vs-xx-x-xxx-xx-mkt.pdf Description: CONN RCPT 50POS 0.079 GOLD SMD
Packaging: Tube
Features: Board Guide
Connector Type: Receptacle
Current Rating (Amps): 3.8A per Contact
Mounting Type: Surface Mount
Number of Positions: 50
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.300" (7.62mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 784 Stücke:
Lieferzeit 10-14 Tag (e)
2+14.52 EUR
10+ 13.43 EUR
25+ 12.69 EUR
50+ 12.23 EUR
100+ 11.45 EUR
Mindestbestellmenge: 2
SQW-125-01-L-D-VS-LC SQW-125-01-L-D-VS-LC Samtec Inc. sqt-1xx-xx-xxx-x-xxx-xxx-mkt.pdf Description: CONN RCPT 50POS 0.079 GOLD SMD
Packaging: Tube
Features: Board Lock
Connector Type: Receptacle
Current Rating (Amps): 3.8A per Contact
Mounting Type: Surface Mount
Number of Positions: 50
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.300" (7.62mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 108 Stücke:
Lieferzeit 10-14 Tag (e)
2+14.59 EUR
10+ 13.48 EUR
25+ 12.74 EUR
50+ 12.28 EUR
100+ 11.49 EUR
Mindestbestellmenge: 2
RSM-125-02-L-D RSM-125-02-L-D Samtec Inc. rsm_sm.pdf Description: CONN RCPT 50POS 0.05 GOLD SMD
auf Bestellung 18 Stücke:
Lieferzeit 10-14 Tag (e)
1+23.37 EUR
18+ 20.72 EUR
ERM8-050-08.0-L-DV-K-TR ERM8-050-08.0-L-DV-K-TR Samtec Inc. erm8-xxx-xx.x-dv-xxxx-footprint.pdf Description: CONN HDR 100POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place
Connector Type: Header, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 100
Pitch: 0.031" (0.80mm)
Height Above Board: 0.351" (8.91mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Heights: 10mm, 12mm, 15mm
Number of Rows: 2
auf Bestellung 1350 Stücke:
Lieferzeit 10-14 Tag (e)
150+12.98 EUR
300+ 11.58 EUR
450+ 10.87 EUR
750+ 10.17 EUR
1050+ 9.61 EUR
Mindestbestellmenge: 150
CES-120-01-G-D CES-120-01-G-D Samtec Inc. ces.pdf Description: CONN RCPT 40POS 0.1 GOLD PCB
auf Bestellung 59 Stücke:
Lieferzeit 10-14 Tag (e)
1+23.51 EUR
11+ 20.84 EUR
LSEM-140-03.0-L-DV-A-N-K-TR LSEM-140-03.0-L-DV-A-N-K-TR Samtec Inc. lsem-1xx-xx.x-x-dv-a-x-xx-x-xr-mkt.pdf Description: CONN SELF-MATE 80POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place
Connector Type: Self Mating, Non-Gendered, Hermaphroditic
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 80
Pitch: 0.031" (0.80mm)
Height Above Board: 0.175" (4.45mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Heights: 6mm, 7mm, 9mm
Part Status: Active
Number of Rows: 2
auf Bestellung 575 Stücke:
Lieferzeit 10-14 Tag (e)
575+8.37 EUR
Mindestbestellmenge: 575
IPL1-125-02-L-D-K IPL1-125-02-L-D-K Samtec Inc. ipl1.pdf Description: CONN HEADER SMD 50POS 2.54MM
Packaging: Tube
Connector Type: Header
Voltage Rating: 675VAC, 954VDC
Mounting Type: Surface Mount
Number of Positions: 50
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.320" (8.13mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.215" (5.46mm)
auf Bestellung 64 Stücke:
Lieferzeit 10-14 Tag (e)
1+22.49 EUR
10+ 19.93 EUR
SQT-125-03-L-D SQT-125-03-L-D Samtec Inc. sqt_th.pdf Description: CONN RCPT 50POS 0.079 GOLD PCB
Packaging: Tube
Connector Type: Receptacle
Current Rating (Amps): 5.1A per Contact
Mounting Type: Through Hole
Number of Positions: 50
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.208" (5.28mm)
Insulation Height: 0.250" (6.35mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 6 Stücke:
Lieferzeit 10-14 Tag (e)
1+22.49 EUR
FFSD-08-S-08.00-01-N FFSD-08-S-08.00-01-N Samtec Inc. ffsd.pdf Description: .050 X .050 C.L. FEMALE IDC ASSE
Packaging: Bulk
Features: Polarizing Key
Connector Type: Socket to Cable
Contact Finish: Gold
Color: Gray, Ribbon
Length: 0.667' (203.20mm, 8.00")
Shielding: Unshielded
Number of Positions: 16
Number of Rows: 2
Contact Finish Thickness: 10.0µin (0.25µm)
Cable Termination: IDC
Pitch - Cable: 0.025" (0.64mm)
Pitch - Connector: 0.050" (1.27mm)
Part Status: Active
auf Bestellung 98 Stücke:
Lieferzeit 10-14 Tag (e)
1+19.87 EUR
10+ 17.61 EUR
25+ 16.93 EUR
50+ 16.25 EUR
ERM8-040-01-L-D-EM2-L-TR ERM8-040-01-L-D-EM2-L-TR Samtec Inc. erm8-erf8.pdf Description: CONN HDR 80POS EDGE MNT GOLD
Packaging: Tape & Reel (TR)
Features: Latches
Connector Type: Header, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 80
Pitch: 0.031" (0.80mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Part Status: Active
Number of Rows: 2
auf Bestellung 125 Stücke:
Lieferzeit 10-14 Tag (e)
125+11.9 EUR
Mindestbestellmenge: 125
HSEC8-130-01-L-RA HSEC8-130-01-L-RA Samtec Inc. hsec8-1xx-xx-x-ra-xx-xx-mkt.pdf Description: CONN EDGE DUAL FMALE 60POS 0.031
Packaging: Tray
Features: Board Guide
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount, Right Angle
Number of Positions: 60
Pitch: 0.031" (0.80mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Beryllium Copper
Number of Positions/Bay/Row: 30
Part Status: Active
Number of Rows: 2
auf Bestellung 456 Stücke:
Lieferzeit 10-14 Tag (e)
1+18.73 EUR
10+ 16.61 EUR
25+ 15.97 EUR
40+ 15.33 EUR
80+ 14.48 EUR
230+ 13.2 EUR
440+ 12.35 EUR
MEC1-120-02-L-D-EM2 MEC1-120-02-L-D-EM2 Samtec Inc. mec1_ra.pdf Description: CONN EDGE DUAL FMALE 40POS 0.039
Packaging: Tray
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount
Number of Positions: 40
Pitch: 0.039" (1.00mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Loop Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Part Status: Active
Number of Rows: 2
auf Bestellung 21 Stücke:
Lieferzeit 10-14 Tag (e)
1+20.29 EUR
10+ 17.99 EUR
ERF5-050-07.0-L-DV-K-TR ERF5-050-07.0-L-DV-K-TR Samtec Inc. Description: CONN SOCKET 100POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place
Connector Type: Socket, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 100
Pitch: 0.020" (0.50mm)
Height Above Board: 0.272" (6.90mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Heights: 9mm, 11mm, 12mm
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
MEC1-140-02-L-D-A-K-TR MEC1-140-02-L-D-A-K-TR Samtec Inc. mec1-1xx-xx-xx-d-xx-xx-x-xx-mkt.pdf Description: CONN EDGE DUAL FMALE 80POS 0.039
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount
Number of Positions: 80
Pitch: 0.039" (1.00mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Loop Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Part Status: Active
Number of Rows: 2
auf Bestellung 150 Stücke:
Lieferzeit 10-14 Tag (e)
150+8.23 EUR
Mindestbestellmenge: 150
TCSD-05-D-06.00-01-F-N TCSD-05-D-06.00-01-F-N Samtec Inc. tcsd-xx-x-xx.xx-01-x-xxx-xxx-mkt.pdf Description: 2MM DOUBLE ROW FEMALE IDC ASSEMB
Packaging: Bulk
Features: Polarizing Key
Connector Type: Socket to Socket
Contact Finish: Gold
Color: Gray, Ribbon
Length: 0.500' (152.40mm, 6.00")
Shielding: Unshielded
Number of Positions: 10
Number of Rows: 2
Contact Finish Thickness: FLASH
Cable Termination: IDC
Pitch - Cable: 0.039" (1.00mm)
Pitch - Connector: 0.079" (2.00mm)
auf Bestellung 36 Stücke:
Lieferzeit 10-14 Tag (e)
2+12.51 EUR
10+ 11.57 EUR
25+ 10.95 EUR
Mindestbestellmenge: 2
MEC1-150-02-FM-D-A mec1-1xx-xx-xx-d-xx-xx-footprint.pdf
MEC1-150-02-FM-D-A
Hersteller: Samtec Inc.
Description: CONN EDGE DUAL FMALE 100P 0.039
auf Bestellung 41 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+20.2 EUR
10+ 18.18 EUR
30+ 17.13 EUR
40+ 16.69 EUR
SFM-115-02-S-D-A-P sfm-1xx-xx-x-xh-xr-mkt.pdf
SFM-115-02-S-D-A-P
Hersteller: Samtec Inc.
Description: CONN RCPT 30POS 0.05 GOLD SMD
Packaging: Tube
Features: Board Guide, Pick and Place
Connector Type: Receptacle
Voltage Rating: 250VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 30
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Insulation Height: 0.185" (4.70mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
auf Bestellung 491 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+9.52 EUR
10+ 8.55 EUR
25+ 7.71 EUR
50+ 6.97 EUR
100+ 6.31 EUR
Mindestbestellmenge: 2
MEC8-125-02-L-D-RA1 mec8-1xx-xx-xx-d-rxx-xx-mkt.pdf
MEC8-125-02-L-D-RA1
Hersteller: Samtec Inc.
Description: CONN EDGE DUAL FMALE 50POS 0.031
Packaging: Tray
Features: Board Guide
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount, Right Angle
Number of Positions: 50
Pitch: 0.031" (0.80mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Part Status: Active
Number of Rows: 2
auf Bestellung 5056 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
90+10.5 EUR
180+ 9.81 EUR
Mindestbestellmenge: 90
FSI-115-03-G-D-AD fsi-1xx-03-x-d-x-xx-xx-x-xx-mkt.pdf
FSI-115-03-G-D-AD
Hersteller: Samtec Inc.
Description: CONN STACKING 30POS SMD GOLD
Packaging: Tube
Features: Board Guide, Mating Guide
Connector Type: Stacking Compression
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 30
Pitch: 0.039" (1.00mm)
Height Above Board: 0.118" (3.00mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Number of Rows: 2
auf Bestellung 200 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+19.5 EUR
10+ 17.28 EUR
25+ 16.62 EUR
50+ 15.95 EUR
100+ 15.07 EUR
LSEM-120-01-L-DH-A-N-K-TR lsem-1xx-xx.x-x-dv-a-x-xx-x-xr-mkt.pdf
LSEM-120-01-L-DH-A-N-K-TR
Hersteller: Samtec Inc.
Description: CONN SELF-MATE 40P R/A SMD GOLD
Packaging: Tape & Reel (TR)
Features: Pick and Place
Connector Type: Self Mating, Non-Gendered, Hermaphroditic
Contact Finish: Gold
Mounting Type: Surface Mount, Right Angle
Number of Positions: 40
Pitch: 0.031" (0.80mm)
Height Above Board: 0.202" (5.13mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Number of Rows: 2
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
250+10.62 EUR
500+ 9.97 EUR
750+ 9.33 EUR
Mindestbestellmenge: 250
LSHM-130-03.0-F-DV-A-S-K-TR lshm-1xx-xx.x-xxx-dv-a-x-x-xx-mkt.pdf
LSHM-130-03.0-F-DV-A-S-K-TR
Hersteller: Samtec Inc.
Description: CONN SELF-MATE 60POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place, Shielded
Connector Type: Self Mating, Non-Gendered, Hermaphroditic
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 60
Pitch: 0.020" (0.50mm)
Height Above Board: 0.175" (4.45mm)
Contact Finish Thickness: 3.00µin (0.076µm)
Mated Stacking Heights: 5.5mm, 6mm, 7mm, 9mm
Number of Rows: 2
Produkt ist nicht verfügbar
ERM8-050-01-L-D-EM2-TR
ERM8-050-01-L-D-EM2-TR
Hersteller: Samtec Inc.
Description: CONN HDR 100POS EDGE MNT GOLD
Produkt ist nicht verfügbar
SFSD-10-28-G-12.00-SR sfsdx-xx-xxx-xx-xx.xx-xx-xxx-mkt.pdf
SFSD-10-28-G-12.00-SR
Hersteller: Samtec Inc.
Description: .050 SOCKET DISCRETE CABLE ASSEM
Packaging: Bulk
Connector Type: Socket to Individual Wire Leads
Contact Finish: Gold
Color: Black, Individual
Length: 1.00' (304.80mm)
Shielding: Unshielded
Number of Positions: 20
Number of Rows: 2
Contact Finish Thickness: 10.0µin (0.25µm)
Cable Termination: Crimp
Pitch - Connector: 0.050" (1.27mm)
auf Bestellung 101 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+10 EUR
25+ 9.05 EUR
50+ 8.69 EUR
Mindestbestellmenge: 2
ERM5-050-02.0-L-DV-P-TR erm5-xxx-xx.x-x-dv-xx-x-xr-mkt.pdf
ERM5-050-02.0-L-DV-P-TR
Hersteller: Samtec Inc.
Description: CONN HDR 100POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place
Connector Type: Header, Outer Shroud Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 100
Pitch: 0.020" (0.50mm)
Height Above Board: 0.191" (4.85mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Heights: 7mm, 9mm
Part Status: Active
Number of Rows: 2
auf Bestellung 1900 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
475+8.09 EUR
950+ 7.08 EUR
Mindestbestellmenge: 475
ERM8-025-05.0-S-DV-L-TR
ERM8-025-05.0-S-DV-L-TR
Hersteller: Samtec Inc.
Description: CONN HDR 50POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Latches
Connector Type: Header, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 50
Pitch: 0.031" (0.80mm)
Height Above Board: 0.351" (8.91mm)
Contact Finish Thickness: 30.0µin (0.76µm)
Mated Stacking Heights: 10mm, 12mm, 15mm
Number of Rows: 2
auf Bestellung 250 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
250+10.16 EUR
Mindestbestellmenge: 250
T2M-120-01-L-D-SM-WT t2m-1xx-xx-x-d-xx-xx-x-xx-mkt.pdf
T2M-120-01-L-D-SM-WT
Hersteller: Samtec Inc.
Description: CONN HEADER SMD 40POS 2MM
Packaging: Tube
Features: Solder Retention
Connector Type: Header
Current Rating (Amps): 3.8A
Mounting Type: Surface Mount
Number of Positions: 40
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.228" (5.80mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
auf Bestellung 449 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+14.1 EUR
10+ 13.03 EUR
25+ 12.32 EUR
50+ 11.88 EUR
100+ 11.07 EUR
Mindestbestellmenge: 2
EJH-125-01-F-D-TH ejh.pdf
EJH-125-01-F-D-TH
Hersteller: Samtec Inc.
Description: CONN HEADER VERT 50POS 2.54MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 50
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.120" (3.05mm)
Insulation Height: 0.500" (12.70mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.225" (5.72mm)
auf Bestellung 110 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+19.98 EUR
10+ 17.7 EUR
100+ 15.43 EUR
TFM-107-02-L-D-DS tfm.pdf
TFM-107-02-L-D-DS
Hersteller: Samtec Inc.
Description: CONN HEADER SMD 14POS 1.27MM
Packaging: Tube
Features: Mating Flange
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 2.9A per Contact
Mounting Type: Surface Mount
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.131" (3.33mm)
auf Bestellung 23 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+16.07 EUR
10+ 14.46 EUR
Mindestbestellmenge: 2
HSEC8-180-01-L-DV-A-K hsec8_dv.pdf
HSEC8-180-01-L-DV-A-K
Hersteller: Samtec Inc.
Description: CONN EDGE DUAL FML 160POS 0.031
Packaging: Tray
Features: Board Guide, Locking Ramp
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount
Number of Positions: 160
Pitch: 0.031" (0.80mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Beryllium Copper
Number of Positions/Bay/Row: 80
Number of Rows: 2
auf Bestellung 411 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+15.93 EUR
10+ 14.34 EUR
25+ 13.51 EUR
40+ 13.16 EUR
80+ 12.82 EUR
230+ 11.43 EUR
Mindestbestellmenge: 2
TLE-125-01-G-DV-A-K-TR tle-1xx-xx-x-dv-x-footprint.pdf
TLE-125-01-G-DV-A-K-TR
Hersteller: Samtec Inc.
Description: CONN RCPT 50POS 0.079 GOLD SMD
Produkt ist nicht verfügbar
EHF-125-01-F-D-SM-P-TR ehf-1xx-01-xx-xx-xx-xx-x-xx-mpt.pdf
EHF-125-01-F-D-SM-P-TR
Hersteller: Samtec Inc.
Description: CONN HEADER SMD 50POS 1.27MM
Packaging: Tape & Reel (TR)
Features: Keying Slot, Pick and Place
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 50
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
auf Bestellung 175 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
175+11.27 EUR
Mindestbestellmenge: 175
FTSH-125-01-L-DV-K-TR ftsh-1xx-xx-xxx-dv-xxx-xxx-mkt.pdf
FTSH-125-01-L-DV-K-TR
Hersteller: Samtec Inc.
Description: CONN HEADER SMD 50POS 1.27MM
Produkt ist nicht verfügbar
ERM8-030-09.0-S-DV-TR
ERM8-030-09.0-S-DV-TR
Hersteller: Samtec Inc.
Description: CONN HDR 60POS SMD GOLD
auf Bestellung 125 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
125+12.52 EUR
Mindestbestellmenge: 125
SFC-130-T2-L-D-A sfc-1xx-xx-xx-d-xx-mkt.pdf
SFC-130-T2-L-D-A
Hersteller: Samtec Inc.
Description: CONN RCPT 60POS 0.05 GOLD SMD
Packaging: Tube
Features: Board Guide
Connector Type: Receptacle
Voltage Rating: 350VAC
Current Rating (Amps): 3.1A per Contact
Mounting Type: Surface Mount
Number of Positions: 60
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.180" (4.57mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
auf Bestellung 390 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+14.7 EUR
10+ 13.22 EUR
100+ 11.81 EUR
Mindestbestellmenge: 2
SQT-130-03-F-D sqt-1xx-xx-xxx-x-xxx-xxx-mkt.pdf
SQT-130-03-F-D
Hersteller: Samtec Inc.
Description: CONN RCPT 60POS 0.079 GOLD PCB
Packaging: Tube
Connector Type: Receptacle
Current Rating (Amps): 5.1A per Contact
Mounting Type: Through Hole
Number of Positions: 60
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.208" (5.28mm)
Insulation Height: 0.250" (6.35mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 24 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+14.48 EUR
10+ 13.38 EUR
Mindestbestellmenge: 2
UPT-08-01-01-L-RA upt-xx-01-xx-x-ra-xx-xx-mkt.pdf
UPT-08-01-01-L-RA
Hersteller: Samtec Inc.
Description: CONN HDR 8POS 3.81MM R/A SLDR
Packaging: Tube
Connector Type: Header, Male Blades
Color: Black
Mounting Type: Through Hole, Right Angle
Pitch: 0.150" (3.81mm)
Termination: Solder
Part Status: Active
Number of Rows: 1
Number of Positions: 8
auf Bestellung 341 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+19.68 EUR
10+ 17.44 EUR
100+ 15.2 EUR
ESW-117-44-G-D esw_th.pdf
ESW-117-44-G-D
Hersteller: Samtec Inc.
Description: CONN SOCKET 34POS 0.1 GOLD PCB
auf Bestellung 53 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+20.86 EUR
10+ 18.49 EUR
MEC6-140-02-L-DV-A-K-TR mec6_dv.pdf
MEC6-140-02-L-DV-A-K-TR
Hersteller: Samtec Inc.
Description: CONN EDGE DUAL FMALE 80POS 0.025
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount
Number of Positions: 80
Pitch: 0.025" (0.64mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Number of Positions/Bay/Row: 40
Number of Rows: 2
auf Bestellung 175 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
175+11.87 EUR
Mindestbestellmenge: 175
MPSC-01-24-01-7.70-01-L-V-LC mpsc-xx-xx-xx-01-xx-x-ra-xx-footprint.pdf
MPSC-01-24-01-7.70-01-L-V-LC
Hersteller: Samtec Inc.
Description: CONN RCPT 26POS GOLD PCB
Packaging: Tray
Features: Board Lock, Mounting Flange
Connector Type: Receptacle
Mounting Type: Through Hole
Number of Positions: 26 (24 + 2 Power)
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.107" (2.71mm)
Insulation Height: 0.298" (7.57mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 4
auf Bestellung 249 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+10.98 EUR
25+ 9.92 EUR
50+ 9.21 EUR
100+ 9.17 EUR
Mindestbestellmenge: 2
FTSH-120-01-L-D-EJ-K ftsh-1xx-xx-xx-d-xx-xx-mkt.pdf
FTSH-120-01-L-D-EJ-K
Hersteller: Samtec Inc.
Description: CONN HEADER VERT 40POS 1.27MM
Packaging: Tube
Features: End Shrouds, Keying Shroud
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Through Hole
Number of Positions: 40
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.110" (2.79mm)
Insulation Height: 0.099" (2.51mm)
Shrouding: Shrouded
Overall Contact Length: 0.309" (7.86mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
auf Bestellung 197 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+9.68 EUR
10+ 8.79 EUR
100+ 7.74 EUR
Mindestbestellmenge: 2
MEC1-140-02-L-D-A mec1.pdf
MEC1-140-02-L-D-A
Hersteller: Samtec Inc.
Description: CONN EDGE DUAL FMALE 80POS 0.039
Packaging: Tube
Features: Board Guide
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount
Number of Positions: 80
Pitch: 0.039" (1.00mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Loop Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Part Status: Active
Number of Rows: 2
auf Bestellung 15 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+19.96 EUR
10+ 17.96 EUR
SMM-117-01-S-D smm-1xx-xx-xx-d-xx-xx-x-xx-mkt.pdf
SMM-117-01-S-D
Hersteller: Samtec Inc.
Description: CONN RCPT 34POS 0.079 GOLD PCB
auf Bestellung 35 Stücke:
Lieferzeit 10-14 Tag (e)
ERM8-050-09.0-L-DV-TR erm8-xxx-xx.x-dv-xxxx-footprint.pdf
ERM8-050-09.0-L-DV-TR
Hersteller: Samtec Inc.
Description: CONN HDR 100POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide
Connector Type: Header, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 100
Pitch: 0.031" (0.80mm)
Height Above Board: 0.508" (12.91mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Heights: 14mm, 16mm, 19mm
Number of Rows: 2
auf Bestellung 8875 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
125+11.32 EUR
250+ 10.1 EUR
625+ 9.48 EUR
875+ 8.87 EUR
1250+ 8.38 EUR
Mindestbestellmenge: 125
QSS-025-01-F-D-A qss-xxx-01-x-d-xx-footprint.pdf
QSS-025-01-F-D-A
Hersteller: Samtec Inc.
Description: CONN SOCKET 50POS SMD GOLD
Packaging: Tray
Features: Board Guide, Ground Bus (Plane)
Connector Type: Socket, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 50
Pitch: 0.025" (0.64mm)
Height Above Board: 0.143" (3.63mm)
Contact Finish Thickness: 3.00µin (0.076µm)
Part Status: Active
Number of Rows: 2
auf Bestellung 100 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+20.4 EUR
10+ 18.36 EUR
25+ 17.3 EUR
40+ 16.85 EUR
96+ 16.41 EUR
ERM8-025-05.0-S-DV-L-K-TR erm8-xxx-xx.x-xxx-dv-xxxx-xx-mkt.pdf
ERM8-025-05.0-S-DV-L-K-TR
Hersteller: Samtec Inc.
Description: CONN HDR 50POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Latches, Pick and Place
Connector Type: Header, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 50
Pitch: 0.031" (0.80mm)
Height Above Board: 0.351" (8.91mm)
Contact Finish Thickness: 30.0µin (0.76µm)
Mated Stacking Heights: 10mm, 12mm, 15mm
Number of Rows: 2
auf Bestellung 7500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
250+8.83 EUR
500+ 8.31 EUR
750+ 7.79 EUR
1250+ 7.27 EUR
1750+ 7.11 EUR
Mindestbestellmenge: 250
MEC6-120-02-L-D-RA1-TR mec6_ra.pdf
MEC6-120-02-L-D-RA1-TR
Hersteller: Samtec Inc.
Description: CONN EDGE DUAL FMALE 40POS 0.025
Packaging: Tape & Reel (TR)
Features: Board Guide
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount, Right Angle
Number of Positions: 40
Pitch: 0.025" (0.64mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Number of Positions/Bay/Row: 20
Part Status: Active
Number of Rows: 2
auf Bestellung 5400 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
300+10.89 EUR
600+ 10.23 EUR
900+ 9.57 EUR
1500+ 8.78 EUR
Mindestbestellmenge: 300
SFML-115-02-S-D-LC sfm.pdf
SFML-115-02-S-D-LC
Hersteller: Samtec Inc.
Description: CONN RCPT 30POS 0.05 GOLD SMD
Packaging: Tube
Features: Board Lock
Connector Type: Receptacle
Voltage Rating: 250VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 30
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.185" (4.70mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
auf Bestellung 31 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+21.6 EUR
10+ 19.13 EUR
LSHM-130-02.5-L-DV-A-S-TR lshm_dv.pdf
LSHM-130-02.5-L-DV-A-S-TR
Hersteller: Samtec Inc.
Description: CONN SELF-MATE 60POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Shielded
Connector Type: Self Mating, Non-Gendered, Hermaphroditic
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 60
Pitch: 0.020" (0.50mm)
Height Above Board: 0.156" (3.96mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Heights: 5mm, 5.5mm, 6.5mm, 8.5mm
Number of Rows: 2
Produkt ist nicht verfügbar
MEC1-108-02-S-D-RA1-SL mec1-1xx-xx-xx-d-rax-xx-sl-xx-mkt.pdf
MEC1-108-02-S-D-RA1-SL
Hersteller: Samtec Inc.
Description: CONN EDGE DUAL FMALE 16POS 0.039
Packaging: Tube
Features: Board Lock
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount, Right Angle
Number of Positions: 16
Pitch: 0.039" (1.00mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Loop Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Phosphor Bronze
Number of Rows: 2
auf Bestellung 10 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+11.26 EUR
10+ 10.2 EUR
Mindestbestellmenge: 2
SEM-110-02-03.0-H-D-WT sem.pdf
SEM-110-02-03.0-H-D-WT
Hersteller: Samtec Inc.
Description: CONN RCPT 20POS 0.031 GOLD SMD
Packaging: Tray
Features: Solder Retention
Connector Type: Receptacle
Current Rating (Amps): 2.6A per Contact
Mounting Type: Surface Mount
Number of Positions: 20
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Mated Stacking Heights: 6mm, 7mm, 10mm
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Gold
Insulation Height: 0.177" (4.50mm)
Row Spacing - Mating: 0.125" (3.18mm)
Number of Rows: 2
auf Bestellung 115 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+13.29 EUR
10+ 11.96 EUR
25+ 11.27 EUR
40+ 10.98 EUR
80+ 10.69 EUR
Mindestbestellmenge: 2
SSM-125-L-DV-LC ssm-1xx-xxx-dv-xx-xx-xxx-x-xx-mkt.pdf
SSM-125-L-DV-LC
Hersteller: Samtec Inc.
Description: CONN RCPT 50POS 0.1 GOLD SMD
Packaging: Tube
Features: Board Lock
Connector Type: Receptacle, Pass Through
Voltage Rating: 405VAC, 572VDC
Current Rating (Amps): 5.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 50
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Insulation Height: 0.290" (7.37mm)
Row Spacing - Mating: 0.100" (2.54mm)
Number of Rows: 2
auf Bestellung 171 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+11.4 EUR
10+ 10.66 EUR
25+ 9.99 EUR
Mindestbestellmenge: 2
MCPK-8-S mcpk.pdf
MCPK-8-S
Hersteller: Samtec Inc.
Description: CONN PLUG HSG FMALE 12POS INLINE
auf Bestellung 20 Stücke:
Lieferzeit 10-14 Tag (e)
EJH-110-01-S-D-TH ejh.pdf
EJH-110-01-S-D-TH
Hersteller: Samtec Inc.
Description: CONN HEADER VERT 20POS 2.54MM
auf Bestellung 1007 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+20.82 EUR
10+ 18.46 EUR
100+ 16.09 EUR
500+ 13.72 EUR
1000+ 12.59 EUR
FFSD-15-01-N FFSD-yy-yy-y-N-yyy_Dwg.pdf
FFSD-15-01-N
Hersteller: Samtec Inc.
Description: CONN RCPT 30POS IDC 30AWG GOLD
Packaging: Tube
Features: Feed Through, Polarizing Key
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 30 AWG
Number of Positions: 30
Pitch: 0.050" (1.27mm)
Contact Type: Female Socket
Row Spacing: 0.050" (1.27mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Wire Type: Ribbon Cable
Cable Termination: IDC
Part Status: Active
Number of Rows: 2
auf Bestellung 120 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+15.21 EUR
10+ 13.69 EUR
25+ 12.9 EUR
50+ 12.56 EUR
100+ 12.23 EUR
Mindestbestellmenge: 2
SFM-120-02-L-D-LC sfm-1xx-xx-xxx-d-xxx-x-xx-mkt.pdf
SFM-120-02-L-D-LC
Hersteller: Samtec Inc.
Description: CONN RCPT 40POS 0.05 GOLD SMD
Packaging: Tube
Features: Board Lock
Connector Type: Receptacle
Voltage Rating: 250VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount
Number of Positions: 40
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.185" (4.70mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
auf Bestellung 127 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+10.05 EUR
10+ 9.03 EUR
25+ 8.14 EUR
50+ 7.37 EUR
100+ 6.66 EUR
Mindestbestellmenge: 2
ERF8-050-01-L-D-EM2-TR erf8-xxx-01-x-d-emx-xxxx-tr-mkt.pdf
ERF8-050-01-L-D-EM2-TR
Hersteller: Samtec Inc.
Description: CONN SOCKET 100POS EDGE MNT GOLD
Packaging: Tape & Reel (TR)
Connector Type: Socket, Outer Shroud Contacts
Contact Finish: Gold
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 100
Pitch: 0.031" (0.80mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Part Status: Active
Number of Rows: 2
auf Bestellung 450 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
150+12.45 EUR
300+ 11.1 EUR
450+ 10.43 EUR
Mindestbestellmenge: 150
SFMH-115-02-L-D-LC sfmh_sm.pdf
SFMH-115-02-L-D-LC
Hersteller: Samtec Inc.
Description: CONN RCPT 30P 0.05 GOLD SMD R/A
Packaging: Tube
Features: Board Lock
Connector Type: Receptacle
Mounting Type: Surface Mount, Right Angle
Number of Positions: 30
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Part Status: Active
Insulation Height: 0.135" (3.43mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
auf Bestellung 34 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+21.82 EUR
10+ 19.34 EUR
ESQT-120-02-L-D-750 esqt-1xx-xx-xx-x-xxx-xxx-xx-mkt.pdf
ESQT-120-02-L-D-750
Hersteller: Samtec Inc.
Description: CONN SOCKET 40POS 0.079 GOLD PCB
Packaging: Tube
Connector Type: Elevated Socket
Current Rating (Amps): 4.5A per Contact
Mounting Type: Through Hole
Number of Positions: 40
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.100" (2.54mm)
Insulation Height: 0.750" (19.05mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 51 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+20.72 EUR
10+ 18.36 EUR
QTE-020-03-F-D-A qte.pdf
QTE-020-03-F-D-A
Hersteller: Samtec Inc.
Description: CONN HDR 40POS SMD GOLD
Packaging: Tray
Features: Board Guide, Ground Bus (Plane)
Connector Type: Header, Outer Shroud Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 40
Pitch: 0.031" (0.80mm)
Height Above Board: 0.404" (10.27mm)
Contact Finish Thickness: 3.00µin (0.076µm)
Mated Stacking Heights: 11mm
Part Status: Active
Number of Rows: 2
auf Bestellung 282 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+14.59 EUR
10+ 13.13 EUR
25+ 12.37 EUR
40+ 12.05 EUR
80+ 11.73 EUR
230+ 10.46 EUR
Mindestbestellmenge: 2
FTSH-125-01-L-DV-K-P ftsh_smt.pdf
FTSH-125-01-L-DV-K-P
Hersteller: Samtec Inc.
Description: CONN HEADER SMD 50POS 1.27MM
Packaging: Tube
Features: Keying Shroud, Pick and Place
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 50
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.099" (2.51mm)
Shrouding: Shrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
auf Bestellung 251 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+19.31 EUR
10+ 17.12 EUR
100+ 14.92 EUR
SQW-125-01-L-D-VS-A sqw-1xx-01-xxx-d-vs-xx-x-xxx-xx-mkt.pdf
SQW-125-01-L-D-VS-A
Hersteller: Samtec Inc.
Description: CONN RCPT 50POS 0.079 GOLD SMD
Packaging: Tube
Features: Board Guide
Connector Type: Receptacle
Current Rating (Amps): 3.8A per Contact
Mounting Type: Surface Mount
Number of Positions: 50
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.300" (7.62mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 784 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+14.52 EUR
10+ 13.43 EUR
25+ 12.69 EUR
50+ 12.23 EUR
100+ 11.45 EUR
Mindestbestellmenge: 2
SQW-125-01-L-D-VS-LC sqt-1xx-xx-xxx-x-xxx-xxx-mkt.pdf
SQW-125-01-L-D-VS-LC
Hersteller: Samtec Inc.
Description: CONN RCPT 50POS 0.079 GOLD SMD
Packaging: Tube
Features: Board Lock
Connector Type: Receptacle
Current Rating (Amps): 3.8A per Contact
Mounting Type: Surface Mount
Number of Positions: 50
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.300" (7.62mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 108 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+14.59 EUR
10+ 13.48 EUR
25+ 12.74 EUR
50+ 12.28 EUR
100+ 11.49 EUR
Mindestbestellmenge: 2
RSM-125-02-L-D rsm_sm.pdf
RSM-125-02-L-D
Hersteller: Samtec Inc.
Description: CONN RCPT 50POS 0.05 GOLD SMD
auf Bestellung 18 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+23.37 EUR
18+ 20.72 EUR
ERM8-050-08.0-L-DV-K-TR erm8-xxx-xx.x-dv-xxxx-footprint.pdf
ERM8-050-08.0-L-DV-K-TR
Hersteller: Samtec Inc.
Description: CONN HDR 100POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place
Connector Type: Header, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 100
Pitch: 0.031" (0.80mm)
Height Above Board: 0.351" (8.91mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Heights: 10mm, 12mm, 15mm
Number of Rows: 2
auf Bestellung 1350 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
150+12.98 EUR
300+ 11.58 EUR
450+ 10.87 EUR
750+ 10.17 EUR
1050+ 9.61 EUR
Mindestbestellmenge: 150
CES-120-01-G-D ces.pdf
CES-120-01-G-D
Hersteller: Samtec Inc.
Description: CONN RCPT 40POS 0.1 GOLD PCB
auf Bestellung 59 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+23.51 EUR
11+ 20.84 EUR
LSEM-140-03.0-L-DV-A-N-K-TR lsem-1xx-xx.x-x-dv-a-x-xx-x-xr-mkt.pdf
LSEM-140-03.0-L-DV-A-N-K-TR
Hersteller: Samtec Inc.
Description: CONN SELF-MATE 80POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place
Connector Type: Self Mating, Non-Gendered, Hermaphroditic
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 80
Pitch: 0.031" (0.80mm)
Height Above Board: 0.175" (4.45mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Heights: 6mm, 7mm, 9mm
Part Status: Active
Number of Rows: 2
auf Bestellung 575 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
575+8.37 EUR
Mindestbestellmenge: 575
IPL1-125-02-L-D-K ipl1.pdf
IPL1-125-02-L-D-K
Hersteller: Samtec Inc.
Description: CONN HEADER SMD 50POS 2.54MM
Packaging: Tube
Connector Type: Header
Voltage Rating: 675VAC, 954VDC
Mounting Type: Surface Mount
Number of Positions: 50
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.320" (8.13mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.215" (5.46mm)
auf Bestellung 64 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+22.49 EUR
10+ 19.93 EUR
SQT-125-03-L-D sqt_th.pdf
SQT-125-03-L-D
Hersteller: Samtec Inc.
Description: CONN RCPT 50POS 0.079 GOLD PCB
Packaging: Tube
Connector Type: Receptacle
Current Rating (Amps): 5.1A per Contact
Mounting Type: Through Hole
Number of Positions: 50
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.208" (5.28mm)
Insulation Height: 0.250" (6.35mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 6 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+22.49 EUR
FFSD-08-S-08.00-01-N ffsd.pdf
FFSD-08-S-08.00-01-N
Hersteller: Samtec Inc.
Description: .050 X .050 C.L. FEMALE IDC ASSE
Packaging: Bulk
Features: Polarizing Key
Connector Type: Socket to Cable
Contact Finish: Gold
Color: Gray, Ribbon
Length: 0.667' (203.20mm, 8.00")
Shielding: Unshielded
Number of Positions: 16
Number of Rows: 2
Contact Finish Thickness: 10.0µin (0.25µm)
Cable Termination: IDC
Pitch - Cable: 0.025" (0.64mm)
Pitch - Connector: 0.050" (1.27mm)
Part Status: Active
auf Bestellung 98 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+19.87 EUR
10+ 17.61 EUR
25+ 16.93 EUR
50+ 16.25 EUR
ERM8-040-01-L-D-EM2-L-TR erm8-erf8.pdf
ERM8-040-01-L-D-EM2-L-TR
Hersteller: Samtec Inc.
Description: CONN HDR 80POS EDGE MNT GOLD
Packaging: Tape & Reel (TR)
Features: Latches
Connector Type: Header, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 80
Pitch: 0.031" (0.80mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Part Status: Active
Number of Rows: 2
auf Bestellung 125 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
125+11.9 EUR
Mindestbestellmenge: 125
HSEC8-130-01-L-RA hsec8-1xx-xx-x-ra-xx-xx-mkt.pdf
HSEC8-130-01-L-RA
Hersteller: Samtec Inc.
Description: CONN EDGE DUAL FMALE 60POS 0.031
Packaging: Tray
Features: Board Guide
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount, Right Angle
Number of Positions: 60
Pitch: 0.031" (0.80mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Beryllium Copper
Number of Positions/Bay/Row: 30
Part Status: Active
Number of Rows: 2
auf Bestellung 456 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+18.73 EUR
10+ 16.61 EUR
25+ 15.97 EUR
40+ 15.33 EUR
80+ 14.48 EUR
230+ 13.2 EUR
440+ 12.35 EUR
MEC1-120-02-L-D-EM2 mec1_ra.pdf
MEC1-120-02-L-D-EM2
Hersteller: Samtec Inc.
Description: CONN EDGE DUAL FMALE 40POS 0.039
Packaging: Tray
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount
Number of Positions: 40
Pitch: 0.039" (1.00mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Loop Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Part Status: Active
Number of Rows: 2
auf Bestellung 21 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+20.29 EUR
10+ 17.99 EUR
ERF5-050-07.0-L-DV-K-TR
ERF5-050-07.0-L-DV-K-TR
Hersteller: Samtec Inc.
Description: CONN SOCKET 100POS SMD GOLD
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place
Connector Type: Socket, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 100
Pitch: 0.020" (0.50mm)
Height Above Board: 0.272" (6.90mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Heights: 9mm, 11mm, 12mm
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
MEC1-140-02-L-D-A-K-TR mec1-1xx-xx-xx-d-xx-xx-x-xx-mkt.pdf
MEC1-140-02-L-D-A-K-TR
Hersteller: Samtec Inc.
Description: CONN EDGE DUAL FMALE 80POS 0.039
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount
Number of Positions: 80
Pitch: 0.039" (1.00mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Loop Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Part Status: Active
Number of Rows: 2
auf Bestellung 150 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
150+8.23 EUR
Mindestbestellmenge: 150
TCSD-05-D-06.00-01-F-N tcsd-xx-x-xx.xx-01-x-xxx-xxx-mkt.pdf
TCSD-05-D-06.00-01-F-N
Hersteller: Samtec Inc.
Description: 2MM DOUBLE ROW FEMALE IDC ASSEMB
Packaging: Bulk
Features: Polarizing Key
Connector Type: Socket to Socket
Contact Finish: Gold
Color: Gray, Ribbon
Length: 0.500' (152.40mm, 6.00")
Shielding: Unshielded
Number of Positions: 10
Number of Rows: 2
Contact Finish Thickness: FLASH
Cable Termination: IDC
Pitch - Cable: 0.039" (1.00mm)
Pitch - Connector: 0.079" (2.00mm)
auf Bestellung 36 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+12.51 EUR
10+ 11.57 EUR
25+ 10.95 EUR
Mindestbestellmenge: 2
Wählen Sie Seite:   [  << Vorherige Seite ]  1 292 293 294 295 296 297 298 299 300 301 302 303 606 909 1212 1515 1818 2121 2424 2727 3030 3038  [ Nächste Seite >> ]
