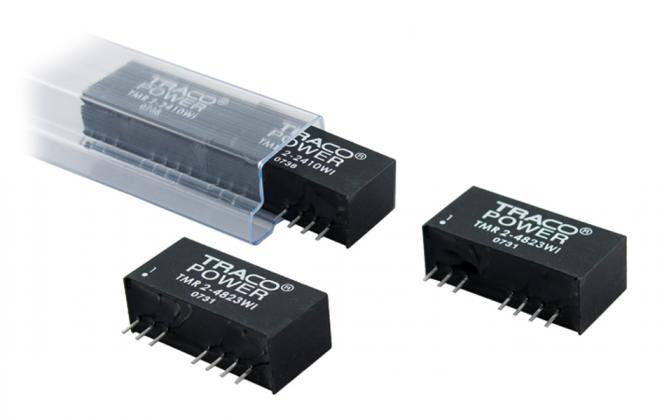

TMR 2-4822WI TRACO POWER
Hersteller: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 2W; Uin: 18÷75V; Uout: 12VDC; Uout2: -12VDC; SIP9
Type of converter: DC/DC
Power: 2W
Input voltage: 18...75V
Output voltage: 12V DC
Output voltage 2: -12V DC
Output current: 85mA
Output current 2: 85mA
Case: SIP9
Body dimensions: 26x12.5x9.3mm
Efficiency: 76%
Operating temperature: -40...85°C
Switching frequency: 650kHz
Protection: short circuit protection SCP
Insulation voltage: 1.5kV
Manufacturer series: TMR 2WI
Number of outputs: 2
Category: DC/DC Converters
Description: Converter: DC/DC; 2W; Uin: 18÷75V; Uout: 12VDC; Uout2: -12VDC; SIP9
Type of converter: DC/DC
Power: 2W
Input voltage: 18...75V
Output voltage: 12V DC
Output voltage 2: -12V DC
Output current: 85mA
Output current 2: 85mA
Case: SIP9
Body dimensions: 26x12.5x9.3mm
Efficiency: 76%
Operating temperature: -40...85°C
Switching frequency: 650kHz
Protection: short circuit protection SCP
Insulation voltage: 1.5kV
Manufacturer series: TMR 2WI
Number of outputs: 2
auf Bestellung 10 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
4+ | 20.95 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TMR 2-4822WI TRACO POWER
Description: DC DC CONVERTER +/-12V 2W, Packaging: Tube, Features: Remote On/Off, SCP, Package / Case: 9-SIP Module, 7 Leads, Size / Dimension: 1.02" L x 0.37" W x 0.49" H (26.0mm x 9.3mm x 12.5mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 85°C (With Derating), Applications: ITE (Commercial), Voltage - Input (Max): 75V, Efficiency: 76%, Current - Output (Max): 85mA, 85mA, Voltage - Input (Min): 18V, Voltage - Output 1: 12V, Voltage - Output 2: -12V, Part Status: Active, Power (Watts): 2 W, Number of Outputs: 2, Voltage - Isolation: 1.5 kV.
Weitere Produktangebote TMR 2-4822WI nach Preis ab 19.7 EUR bis 33.23 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TMR 2-4822WI | Hersteller : TRACO POWER |
Category: DC/DC Converters Description: Converter: DC/DC; 2W; Uin: 18÷75V; Uout: 12VDC; Uout2: -12VDC; SIP9 Type of converter: DC/DC Power: 2W Input voltage: 18...75V Output voltage: 12V DC Output voltage 2: -12V DC Output current: 85mA Output current 2: 85mA Case: SIP9 Body dimensions: 26x12.5x9.3mm Efficiency: 76% Operating temperature: -40...85°C Switching frequency: 650kHz Protection: short circuit protection SCP Insulation voltage: 1.5kV Manufacturer series: TMR 2WI Number of outputs: 2 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 10 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||
TMR 2-4822WI | Hersteller : Traco Power | Module DC-DC 48VIN 2-OUT 12V/-12V 0.083A/0.083A 2W 7-Pin SIP |
auf Bestellung 278 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
TMR 2-4822WI | Hersteller : Traco Power | Module DC-DC 48VIN 2-OUT 12V/-12V 0.083A/0.083A 2W 7-Pin SIP |
auf Bestellung 278 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
TMR 2-4822WI | Hersteller : Traco Power |
Description: DC DC CONVERTER +/-12V 2W Packaging: Tube Features: Remote On/Off, SCP Package / Case: 9-SIP Module, 7 Leads Size / Dimension: 1.02" L x 0.37" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial) Voltage - Input (Max): 75V Efficiency: 76% Current - Output (Max): 85mA, 85mA Voltage - Input (Min): 18V Voltage - Output 1: 12V Voltage - Output 2: -12V Part Status: Active Power (Watts): 2 W Number of Outputs: 2 Voltage - Isolation: 1.5 kV |
auf Bestellung 6 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||
TMR 2-4822WI | Hersteller : Traco Power | Module DC-DC 48VIN 2-OUT 12V/-12V 0.083A/0.083A 2W 7-Pin SIP |
auf Bestellung 278 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||
TMR 2-4822WI | Hersteller : TRACO Power | Isolated DC/DC Converters - Through Hole Product Type: DC/DC; Package Style: SIP; Output Power (W): 2; Input Voltage: 18-75 VDC; Output 1 (Vdc): 12; Output 2 (Vdc): -12; Output 3 (Vdc): N/A |
Produkt ist nicht verfügbar |
