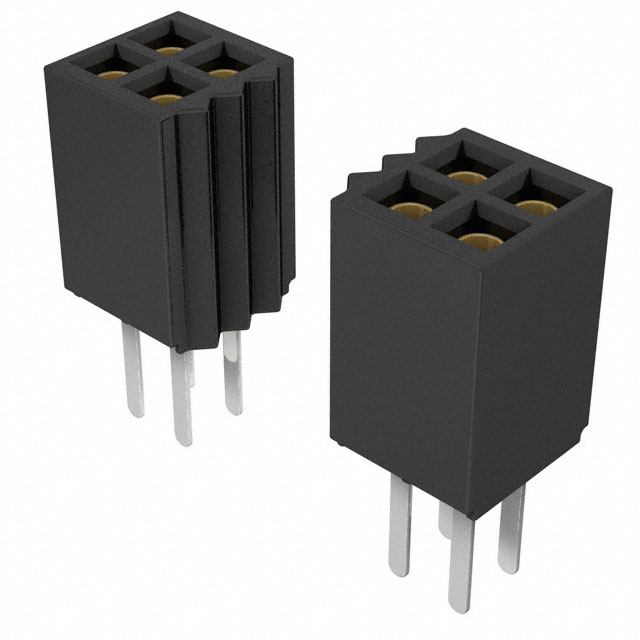

SFMC-120-01-L-D Samtec Inc.
Hersteller: Samtec Inc.
Description: CONN RCPT 40POS 0.05 GOLD PCB
Packaging: Tube
Connector Type: Receptacle
Current Rating (Amps): 2.9A per Contact
Mounting Type: Through Hole
Number of Positions: 40
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.120" (3.05mm)
Insulation Height: 0.180" (4.57mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
Description: CONN RCPT 40POS 0.05 GOLD PCB
Packaging: Tube
Connector Type: Receptacle
Current Rating (Amps): 2.9A per Contact
Mounting Type: Through Hole
Number of Positions: 40
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Length - Post: 0.120" (3.05mm)
Insulation Height: 0.180" (4.57mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
auf Bestellung 358 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
2+ | 13.02 EUR |
10+ | 12.05 EUR |
25+ | 11.38 EUR |
50+ | 10.97 EUR |
100+ | 10.24 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SFMC-120-01-L-D Samtec Inc.
Description: CONN RCPT 40POS 0.05 GOLD PCB, Packaging: Tube, Connector Type: Receptacle, Current Rating (Amps): 2.9A per Contact, Mounting Type: Through Hole, Number of Positions: 40, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Female Socket, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Length - Post: 0.120" (3.05mm), Insulation Height: 0.180" (4.57mm), Row Spacing - Mating: 0.050" (1.27mm), Number of Rows: 2.
Weitere Produktangebote SFMC-120-01-L-D nach Preis ab 11.04 EUR bis 23.69 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SFMC-120-01-L-D | Hersteller : Samtec | Headers & Wire Housings .050" Tiger Eye High-Reliability Flexible Pin Count Socket Strip |
auf Bestellung 261 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||
SFMC-120-01-L-D | Hersteller : Samtec Inc. |
Description: CONN RCPT 40POS 0.05 GOLD PCB Packaging: Tube Connector Type: Receptacle Current Rating (Amps): 2.9A per Contact Mounting Type: Through Hole Number of Positions: 40 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Female Socket Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Contact Length - Post: 0.120" (3.05mm) Insulation Height: 0.180" (4.57mm) Row Spacing - Mating: 0.050" (1.27mm) Number of Rows: 2 |
auf Bestellung 583 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||
SFMC-120-01-L-D | Hersteller : SAMTEC |
Description: SAMTEC - SFMC-120-01-L-D - Printbuchse, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 40 Kontakt(e), Durchsteckmontage tariffCode: 85366930 productTraceability: No Kontaktüberzug: Vergoldete Kontakte rohsCompliant: YES Rastermaß: 1.27mm Anzahl der Kontakte: 40Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Anzahl der Reihen: 2Rows Kontaktmaterial: Berylliumkupfer hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 Steckverbindermontage: Durchsteckmontage Produktpalette: Tiger Eye SFMC SVHC: No SVHC (15-Jan-2018) |
auf Bestellung 30 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||
SFMC-120-01-L-D | Hersteller : Samtec | Conn Socket Strip SKT 40 POS 1.27mm Solder ST Top Entry Thru-Hole TIGER EYE™ Tube |
Produkt ist nicht verfügbar |
||||||||||||||
SFMC-120-01-L-D | Hersteller : Samtec | Conn Socket Strip SKT 40 POS 1.27mm Solder ST Top Entry Thru-Hole TIGER EYE™ Tube |
Produkt ist nicht verfügbar |
||||||||||||||
SFMC-120-01-L-D | Hersteller : Samtec | Conn Socket Strip SKT 40 POS 1.27mm Solder ST Top Entry Thru-Hole TIGER EYE™ Tube |
Produkt ist nicht verfügbar |
