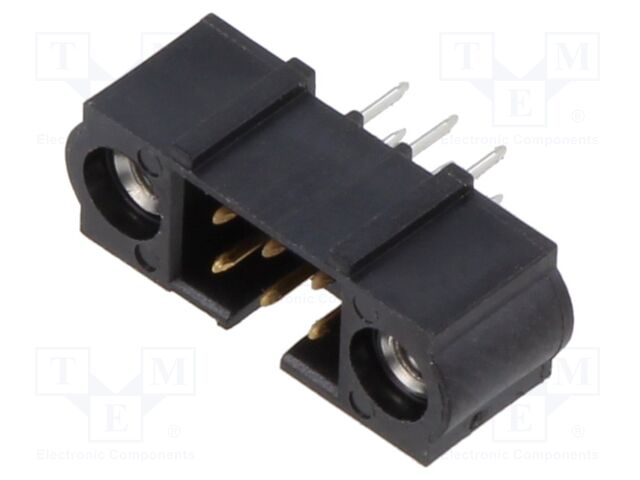

M80-5000642 Harwin Inc.
Hersteller: Harwin Inc.
Description: CONN HEADER VERT 6POS 2MM
Features: Keying Slot, Mating Flange
Packaging: Tube
Connector Type: Header
Voltage Rating: 120V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 6
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.128" (3.25mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Description: CONN HEADER VERT 6POS 2MM
Features: Keying Slot, Mating Flange
Packaging: Tube
Connector Type: Header
Voltage Rating: 120V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 6
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.128" (3.25mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
auf Bestellung 423 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
2+ | 17.48 EUR |
16+ | 15.74 EUR |
112+ | 14.07 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details M80-5000642 Harwin Inc.
Description: CONN HEADER VERT 6POS 2MM, Features: Keying Slot, Mating Flange, Packaging: Tube, Connector Type: Header, Voltage Rating: 120V, Current Rating (Amps): 2.2A, Mounting Type: Through Hole, Number of Positions: 6, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Threaded, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.128" (3.25mm), Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Weitere Produktangebote M80-5000642 nach Preis ab 10.21 EUR bis 19.14 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
M80-5000642 | Hersteller : HARWIN |
Category: Raster signal connectors 2,00mm Description: 3+3 Pos. Male DIL Vertical Throughboard Conn. Jackscrews Anzahl je Verpackung: 1 Stücke |
auf Bestellung 4 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||
M80-5000642 | Hersteller : HARWIN |
Category: Raster signal connectors 2,00mm Description: 3+3 Pos. Male DIL Vertical Throughboard Conn. Jackscrews |
auf Bestellung 4 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||
M80-5000642 | Hersteller : Harwin | Headers & Wire Housings 3+3 POS VERT MALE 3mm TAIL W/JS TIN |
auf Bestellung 936 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||
M80-5000642 | Hersteller : HARWIN |
Description: HARWIN - M80-5000642 - Stiftleiste, Dual In-Line, Wire-to-Board, 2 mm, 2 Reihe(n), 6 Kontakt(e), Durchsteckmontage, gerade tariffCode: 85366990 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 6Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Produktpalette: Datamate J-Tek M80-5 productTraceability: No Kontaktanschluss: Durchsteckmontage, gerade Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm SVHC: No SVHC (27-Jun-2024) |
auf Bestellung 340 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||
M80-5000642 | Hersteller : Harwin | Роз'єм промисловий 2-рядний; Вид = Вилка; Тип конт. = Штирьовий ("тато"); К-сть конт. = 6; Крок, мм = 2; Серія = Datamate J-Tek; Тип монт. = на плату; В-нь між рядами, мм = 2; DIP |
auf Bestellung 14 Stücke: Lieferzeit 14-21 Tag (e) |
|
