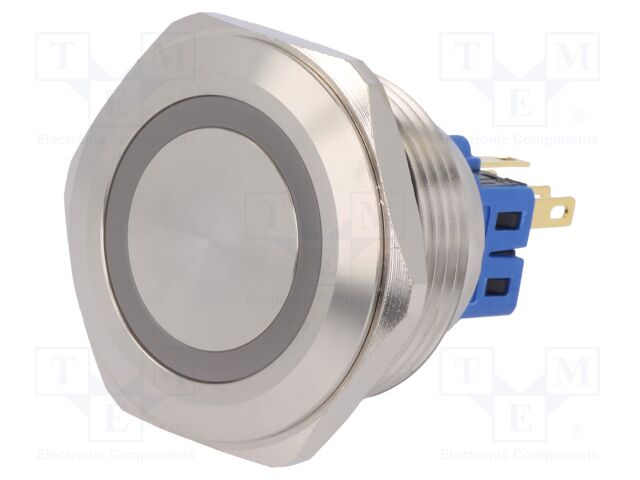

GQ30-11ZE/B/24V/S ONPOW
Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Type of switch: vandal resistant
Contacts configuration: SPDT
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 24V
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
Switching method: ON-ON
IP rating: IP65
Mechanical durability: 1000000 cycles
Button shape: flat
Number of positions: 2
Mounting hole diameter: Ø30mm
Operating temperature: -20...55°C
Related items: M23-11D
Leads: for soldering
Electrical life: 50000 cycles
Stable positions number: 2
Body material: stainless steel
Body colour: silver
Contact material: silver alloy
Operating Force: 5N
Max. contact resistance:: 50mΩ
Test voltage: 1.5kV
Ring shape: rounded
Anzahl je Verpackung: 1 Stücke
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Type of switch: vandal resistant
Contacts configuration: SPDT
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 24V
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
Switching method: ON-ON
IP rating: IP65
Mechanical durability: 1000000 cycles
Button shape: flat
Number of positions: 2
Mounting hole diameter: Ø30mm
Operating temperature: -20...55°C
Related items: M23-11D
Leads: for soldering
Electrical life: 50000 cycles
Stable positions number: 2
Body material: stainless steel
Body colour: silver
Contact material: silver alloy
Operating Force: 5N
Max. contact resistance:: 50mΩ
Test voltage: 1.5kV
Ring shape: rounded
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GQ30-11ZE/B/24V/S ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65, Type of switch: vandal resistant, Contacts configuration: SPDT, Illumination: LED; ring, Backlight colour: blue, Illumination voltage: 24V, AC contacts rating @R: 3A / 220V AC, DC contacts rating @R: 5A / 24V DC, Switching method: ON-ON, IP rating: IP65, Mechanical durability: 1000000 cycles, Button shape: flat, Number of positions: 2, Mounting hole diameter: Ø30mm, Operating temperature: -20...55°C, Related items: M23-11D, Leads: for soldering, Electrical life: 50000 cycles, Stable positions number: 2, Body material: stainless steel, Body colour: silver, Contact material: silver alloy, Operating Force: 5N, Max. contact resistance:: 50mΩ, Test voltage: 1.5kV, Ring shape: rounded, Anzahl je Verpackung: 1 Stücke.
