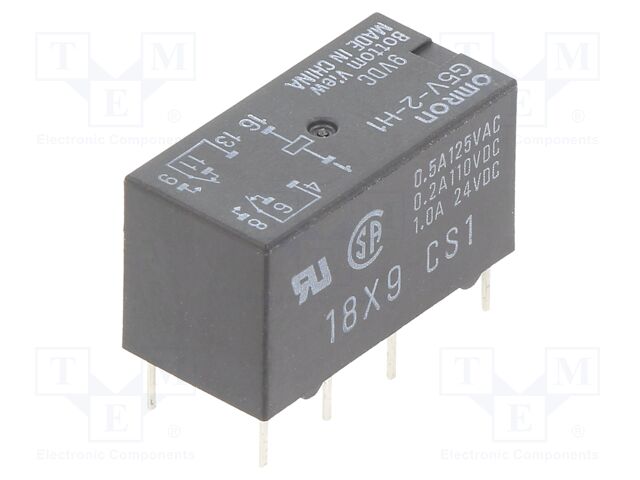

G5V-2-H1 9VDC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 9VDC; Icontacts max: 2A; G5V-2
Body dimensions: 20.5x10.1x11.5mm
Operating temperature: -25...70°C
Coil resistance: 540Ω
Contacts configuration: DPDT
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 24V DC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: G5V-2
Rated coil voltage: 9V DC
Coil power consumption: 150mW
Operate time: 7ms
Release time: 3ms
Switched voltage: max. 125V AC; max. 125V DC
Contact current max.: 2A
Contact resistance: 100mΩ
Coil current: 16.7mA
Terminal pitch: 5mm
Contact plating: gold-plated
Mounting: PCB
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 9VDC; Icontacts max: 2A; G5V-2
Body dimensions: 20.5x10.1x11.5mm
Operating temperature: -25...70°C
Coil resistance: 540Ω
Contacts configuration: DPDT
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 24V DC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: G5V-2
Rated coil voltage: 9V DC
Coil power consumption: 150mW
Operate time: 7ms
Release time: 3ms
Switched voltage: max. 125V AC; max. 125V DC
Contact current max.: 2A
Contact resistance: 100mΩ
Coil current: 16.7mA
Terminal pitch: 5mm
Contact plating: gold-plated
Mounting: PCB
Anzahl je Verpackung: 1 Stücke
auf Bestellung 46 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
18+ | 4.09 EUR |
20+ | 3.63 EUR |
22+ | 3.29 EUR |
24+ | 3.1 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G5V-2-H1 9VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 9VDC; Icontacts max: 2A; G5V-2, Body dimensions: 20.5x10.1x11.5mm, Operating temperature: -25...70°C, Coil resistance: 540Ω, Contacts configuration: DPDT, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 1A / 24V DC, Type of relay: electromagnetic, Relay variant: miniature, Relay series: G5V-2, Rated coil voltage: 9V DC, Coil power consumption: 150mW, Operate time: 7ms, Release time: 3ms, Switched voltage: max. 125V AC; max. 125V DC, Contact current max.: 2A, Contact resistance: 100mΩ, Coil current: 16.7mA, Terminal pitch: 5mm, Contact plating: gold-plated, Mounting: PCB, Anzahl je Verpackung: 1 Stücke.
