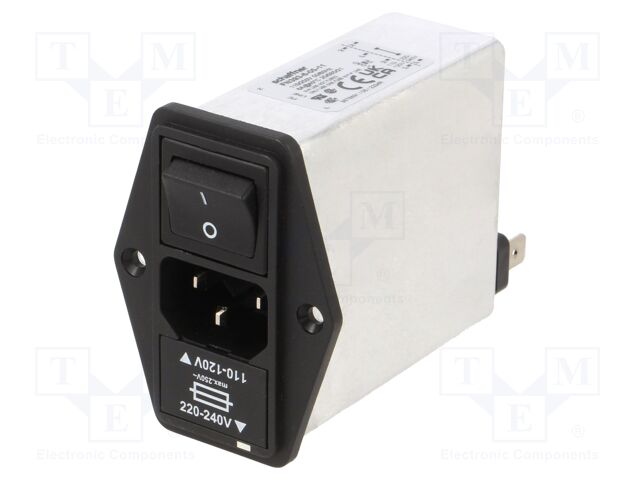

FN393-6-05-11 SCHAFFNER
Hersteller: SCHAFFNER
Category: IEC 60320 connectors
Description: Connector: AC supply; socket; male; 6A; 250VAC; C14 (E); -25÷85°C
Capacitance Cx: 0.22µF
Capacitance Cy: 3.3nF
Operating temperature: -25...85°C
Conform to the norm: CSA 22.2 No. 8 1985; IEC EN 60939; UL 1283
Resistance: 1MΩ
Leads: connectors 6,3x0,8mm
Connector series: FN390
Connector variant: C14 (E)
Inductance: 450µH
Fuse size: 5x20mm
Rated voltage: 250V AC
Kind of connector: male
Caution!: fuses not included
Mechanical mounting: for panel mounting; screw
Current rating: 6A
Connector: socket
Type of connector: AC supply
Leakage current: 560µA
Design: filter; fuse x1; on/off switch
Anzahl je Verpackung: 1 Stücke
Category: IEC 60320 connectors
Description: Connector: AC supply; socket; male; 6A; 250VAC; C14 (E); -25÷85°C
Capacitance Cx: 0.22µF
Capacitance Cy: 3.3nF
Operating temperature: -25...85°C
Conform to the norm: CSA 22.2 No. 8 1985; IEC EN 60939; UL 1283
Resistance: 1MΩ
Leads: connectors 6,3x0,8mm
Connector series: FN390
Connector variant: C14 (E)
Inductance: 450µH
Fuse size: 5x20mm
Rated voltage: 250V AC
Kind of connector: male
Caution!: fuses not included
Mechanical mounting: for panel mounting; screw
Current rating: 6A
Connector: socket
Type of connector: AC supply
Leakage current: 560µA
Design: filter; fuse x1; on/off switch
Anzahl je Verpackung: 1 Stücke
auf Bestellung 15 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
2+ | 50.81 EUR |
20+ | 49.09 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FN393-6-05-11 SCHAFFNER
Description: SCHAFFNER - TE CONNECTIVITY - FN393-6-05-11 - Gerätesteckverbindermodul mit Filter, IEC C14, Universell, 6 A, 250 VAC, 2-poliger Schalter, tariffCode: 85363010, rohsCompliant: YES, Schaltertyp: 2-poliger Schalter, hazardous: false, rohsPhthalatesCompliant: YES, Sicherungsgröße: 5mm x 20mm, Steckverbindermontage: Einrast-, Flanschmontage, IP-Schutzart: IP40, usEccn: EAR99, Anwendungen des Gerätestecker-Kombielements: Universell, Nennstrom: 6A, euEccn: NLR, Sicherungshalter: 1-poliger Sicherungshalter, Steckverbindertyp: IEC C14, Produktpalette: FN 390, productTraceability: No, Kontaktanschluss: Steckanschluss, Nennspannung: 250VAC, Steckverbinderanschlüsse: Steckanschluss.
Weitere Produktangebote FN393-6-05-11 nach Preis ab 50.81 EUR bis 89.64 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FN393-6-05-11 | Hersteller : SCHAFFNER |
Category: IEC 60320 connectors Description: Connector: AC supply; socket; male; 6A; 250VAC; C14 (E); -25÷85°C Capacitance Cx: 0.22µF Capacitance Cy: 3.3nF Operating temperature: -25...85°C Conform to the norm: CSA 22.2 No. 8 1985; IEC EN 60939; UL 1283 Resistance: 1MΩ Leads: connectors 6,3x0,8mm Connector series: FN390 Connector variant: C14 (E) Inductance: 450µH Fuse size: 5x20mm Rated voltage: 250V AC Kind of connector: male Caution!: fuses not included Mechanical mounting: for panel mounting; screw Current rating: 6A Connector: socket Type of connector: AC supply Leakage current: 560µA Design: filter; fuse x1; on/off switch |
auf Bestellung 15 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
FN393-6-05-11 | Hersteller : Schaffner | AC Power Entry Modules FN393-6/05-11 |
auf Bestellung 84 Stücke: Lieferzeit 150-154 Tag (e) |
|
|||||||||||||
FN393-6-05-11 | Hersteller : Schaffner | Power Entry Module Filtered M 3 POS 250VAC 6A Switch/Fuse ST 1 Port |
auf Bestellung 40 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
FN393-6-05-11 | Hersteller : Schaffner | Power Entry Module Filtered M 3 POS 250VAC 6A Switch/Fuse ST 1 Port |
auf Bestellung 7 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
FN393-6-05-11 | Hersteller : Schaffner EMC Inc. |
Description: PWR ENT MOD RCPT IEC320-C14 PNL Features: Front or Rear Side Mount, Voltage Selector Packaging: Tray Filter Type: Filtered (EMI, RFI) - Commercial Connector Type: Receptacle, Male Blades - Module Mounting Type: Panel Mount, Flange Number of Positions: 3 Termination: Quick Connect - 0.250" (6.3mm) Approval Agency: CSA, ENEC, UL Ingress Protection: IP40 Panel Cutout Dimensions: Rectangular - 29.00mm x 60.00mm Connector Style: IEC 320-C14 Material Flammability Rating: UL94 V-2 Accomodates a Fuse: Yes (Fuse Not Included) Switch Features: Switch On-Off Fuse Holder, Drawer: Fuse Holder Part Status: Active Current Rating - Filter: 6A |
auf Bestellung 25 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||
FN393-6-05-11 | Hersteller : Schaffner | Power Entry Module Filtered M 3 POS 250VAC 6A Switch/Fuse ST 1 Port |
auf Bestellung 5 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
FN393-6-05-11 | Hersteller : SCHAFFNER - TE CONNECTIVITY |
Description: SCHAFFNER - TE CONNECTIVITY - FN393-6-05-11 - Gerätesteckverbindermodul mit Filter, IEC C14, Universell, 6 A, 250 VAC, 2-poliger Schalter tariffCode: 85363010 rohsCompliant: YES Schaltertyp: 2-poliger Schalter hazardous: false rohsPhthalatesCompliant: YES Sicherungsgröße: 5mm x 20mm Steckverbindermontage: Einrast-, Flanschmontage IP-Schutzart: IP40 usEccn: EAR99 Anwendungen des Gerätestecker-Kombielements: Universell Nennstrom: 6A euEccn: NLR Sicherungshalter: 1-poliger Sicherungshalter Steckverbindertyp: IEC C14 Produktpalette: FN 390 productTraceability: No Kontaktanschluss: Steckanschluss Nennspannung: 250VAC Steckverbinderanschlüsse: Steckanschluss |
auf Bestellung 34 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||
FN393-6-05-11 фільтр мережевий Produktcode: 195612 |
Transformatoren, Netzfilter, Drosseln > Lineare Filter, Netzfilter, Drosseln auf Torus |
Produkt ist nicht verfügbar
|
|||||||||||||||
FN393-6-05-11 | Hersteller : Schaffner | Power Entry Module Filtered M 3 POS 250VAC 6A Switch/Fuse ST 1 Port |
Produkt ist nicht verfügbar |
||||||||||||||
FN393-6-05-11 | Hersteller : Schaffner | Power Entry Module Filtered M 3 POS 250VAC 6A Switch/Fuse ST 1 Port |
Produkt ist nicht verfügbar |
||||||||||||||
FN 393-6-05-11 | Hersteller : Schaffner | Power Entry Module Filtered M 3 POS 250VAC 6A Switch/Fuse ST 1 Port |
Produkt ist nicht verfügbar |
